70T 371HP Off Road Dump Truck / Sand Dump Truck With 400L Oil Tank 80km/H Speed
70T 371HP Off Road Dump Truck / Sand Dump Truck With 400L Oil Tank 80km/H Speed
70T 371HP Off Road Dump Truck / Sand Dump Truck With 400L Oil Tank 80km/H Speed
70T 371HP Off Road Dump Truck / Sand Dump Truck With 400L Oil Tank 80km/H Speed
70T 371HP Off Road Dump Truck / Sand Dump Truck With 400L Oil Tank 80km/H Speed
70T 371HP Off Road Dump Truck / Sand Dump Truck With 400L Oil Tank 80km/H Speed
Specifications
Brand Name :
SINOTRUCK
Model Number :
ZZ5707V3840CJ
Certification :
ISO/CCC
Place of Origin :
CHINA
MOQ :
1UNIT
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 UNITS/MONTH
Delivery Time :
30-45 Work days
Packaging Details :
Nude
Overall dimensions :
8500x3100x4250mm
Wheel base :
3800+1500mm
Engine: :
WD615.47T2（Euro II）
Maximum speed :
80km/h
Transmission :
12 speed forward 2 reverse with HW70 power takeoff
Tyres: :
13.00-25(36PR)
Description

SINOTRUCK HOWO Mining Dump Truck WD615.47T2 Engine with 9.726L displacement

Description:

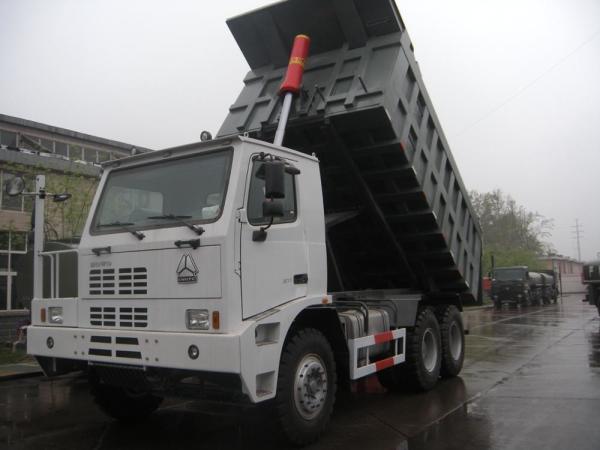

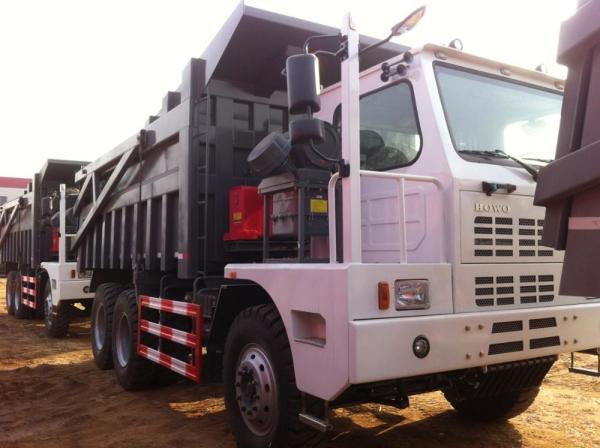

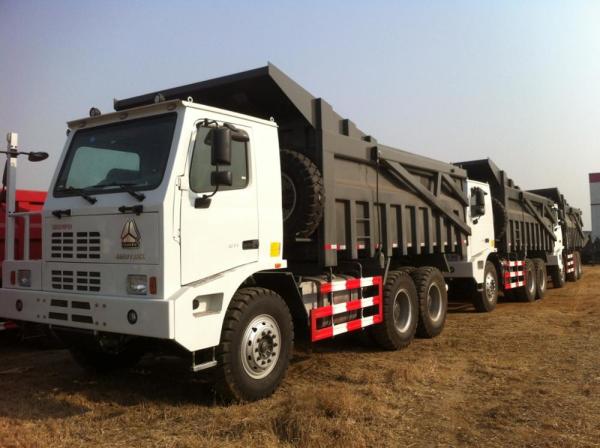

The HOWO 70T mining dump truck, Mine Overlord, is developed by Sinotruk according to the features of the working conditions in the mines. It is suitable for the short-distance transport business in various wharves, steel mills, open pits, hydropower sites, and other places with harsh environment.The main reducer is reasonably designed. The support stiffness is good. The combination of forced lubrication and splash lubrication makes the service life of the reducer improve greatly.

Packing:

Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.Rich experience and well after-sale service.

Competitive Advantage

1. The quality control system ISO9001 which is followed strictly. We also have the professional QC team to guarantee the quality.

2. Send you free spare parts if any of them are broken within one year. And after one year to the whole lifespan we will keep providing the spare parts at your cost if you need.

3. Provide the customized-designing products to meet your demand.

Chassis model HOWO Chassis brand sinotruk
Overall dimensions 8500x3100x4250(mm) Wheel base 3800+1500(mm)
Front/rear wheel track 2011/2011(mm) Front/rear suspension 1525/1900(mm)
Approach/departure angle 15/50° Maximum speed 80km/h
Cab Configuration single row and a half deluxe cab,allowable 3 passengers
Color color is optional
Engine Model WD615.47T2
Emission Euro 2
Type 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling ,diesel engine
Rated power 371hp,rated power speed 2000rpm
Displacement 9726ml
Max.torque 1590N.m
Bore x stroke 126x130mm
Tire Size 13.00-25(36PR)
Number 12+1 nos
Clutch φ430 diaphragm clutch
Fuel tank 400L
Front axle HF10
Rear axle HC16
Drive form 6x4
Rated voltage 24V,DC
Transmissions 12 speed forward 2 reverse with HW70 power takeoff
Steering device Power assisted steering
Steering wheel Left hand drive

70T 371HP Off Road Dump Truck / Sand Dump Truck With 400L Oil Tank 80km/H Speed70T 371HP Off Road Dump Truck / Sand Dump Truck With 400L Oil Tank 80km/H Speed
