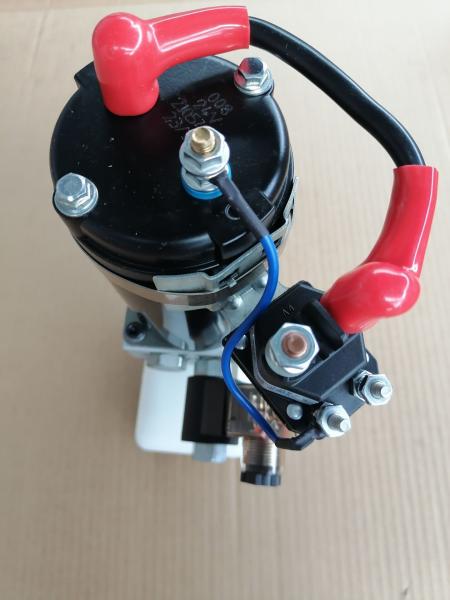

Compact Mini Hydraulic Power Units With 0-250bar Pressure Range And 2 Button Remote Cable
Compact Mini Hydraulic Power Units With 0-250bar Pressure Range And 2 Button Remote Cable
Compact Mini Hydraulic Power Units With 0-250bar Pressure Range And 2 Button Remote Cable
Compact Mini Hydraulic Power Units With 0-250bar Pressure Range And 2 Button Remote Cable
Compact Mini Hydraulic Power Units With 0-250bar Pressure Range And 2 Button Remote Cable
Compact Mini Hydraulic Power Units With 0-250bar Pressure Range And 2 Button Remote Cable
Compact Mini Hydraulic Power Units With 0-250bar Pressure Range And 2 Button Remote Cable
Compact Mini Hydraulic Power Units With 0-250bar Pressure Range And 2 Button Remote Cable
Compact Mini Hydraulic Power Units With 0-250bar Pressure Range And 2 Button Remote Cable
Compact Mini Hydraulic Power Units With 0-250bar Pressure Range And 2 Button Remote Cable
Compact Mini Hydraulic Power Units With 0-250bar Pressure Range And 2 Button Remote Cable
Compact Mini Hydraulic Power Units With 0-250bar Pressure Range And 2 Button Remote Cable
Specifications
Brand Name :
TianDi
Model Number :
12VDC0.8KW
Certification :
CE,ISO
Place of Origin :
Ningbo China
MOQ :
20PCS
Packaging Details :
Packed in carton boxes ,and then wooden pallets
Tank Volume :
12L
Motor Power :
0.5 HP
Port Size :
1/2 Inch
Valve Type :
Solenoid
Relief Valve Pressure :
180Bar
Remote Cable :
2 Button
Gear Pump :
1.6cc/r 2.1cc/r 2.5cc/r 3.2cc/r
Control Mode :
Manual/Automatic
Protection Level :
IP54
Pump Type :
Gear Pump
Temperature Range :
0-50°C
Pressure Range :
0-250bar
Tank :
Plastic 8L
Noise Level :
60dB
Maximum Pressure :
2500 psi
Price :
Negotiation
Delivery Time :
15 work days
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
2000pcs per month
Description
DC Power Unit Code Rules
TDDL - 00-00 - A00 - 00 - 00　L
Tiandi Code Schematic Code Motor Code Gear Pump Code Tank Litres Remarks

Remarks & Notes:
1.Solenoid Valve Voltage　2.Oil Port Size 　3.Tank Shape & Material 　4.Installation:Horizontal　5.Wire Switch　 6.System Pressure

Example:TDDL-50-08-H02-B10-5L Dock Leveler Power Unit
1.Oil Port:G3/8 　 2.Tank:Iron Round　 3.Installation:Horizontal　4.System Pressure:15MPa


Schematic Code



Gear Pump Code

Motor Code

Displacement

Motor Code

Specification

Motor Code

Specification
Specification
B01
0.26cc/r
B08
1.6cc/r
B15
4.2cc/r
000
B02
0.38cc/r
B09
1.8cc/r
B16
4.8cc/r
B03
0.45cc/r
B10
2.1cc/r
B17
5.8cc/r
B04
0.75cc/r
B11
2.6cc/r
B18
6.8cc/r
B05
1.0cc/r
B12
2.7cc/r
B19
7.8cc/r
B06
1.1cc/r
B13
3.2cc/r
B07
1.3cc/r
B14
3.7cc/r

Motor Code

DC 12V
DC 24V
Specification
Code
Specification
Code
Specification
000
A01
12V 0.5KW
B01
24V 0.5KW
A02
12V 0.8KW
B02
24V 0.8KW
A03
12V 1.6KW
B03
24V 1.6KW
A04
12V 2.0KW
B04
24V 2.0KW
A05
12V 2.2KW
B05
24V 2.2KW
A06
12V 2.5KW
B06
24V 2.5KW
A07
12V 3.0KW
B07
24V 3.0KW
