Product Description:

The JH-2161 Cold Rolled Steel Cam Bolt Screw, also known as a Minifix Bolt, is an innovative fastening solution designed for the assembly and connection of wooden panels in furniture construction. With a total length of 40mm, this robust component features a cold-drawn carbon steel shaft that ensures high tensile strength and durability. The Minifix Bolt is complemented by a nylon spreading dowel with a four-leaf design, which facilitates easy expansion for a secure fit. Additionally, it includes a polypropylene (PP) sleeve with longitudinal grooves to enhance grip and prevent slippage. The surface treatment of eco-friendly blue zinc plating not only adds an aesthetic appeal but also provides excellent corrosion resistance.

Key Features

• Material Strength: Constructed from cold-drawn carbon steel, offering superior strength and reliability.
• Expansion Mechanism: The nylon spreading dowel with a four-leaf design ensures maximum expansion and a tight hold within the drilled hole.
• Enhanced Grip: The PP plastic sleeve, featuring longitudinal grooves, improves the friction between the bolt and the material, reducing the risk of loosening over time.
• Corrosion Resistance: Treated with an eco-friendly blue zinc plating, providing long-lasting protection against rust and corrosion.

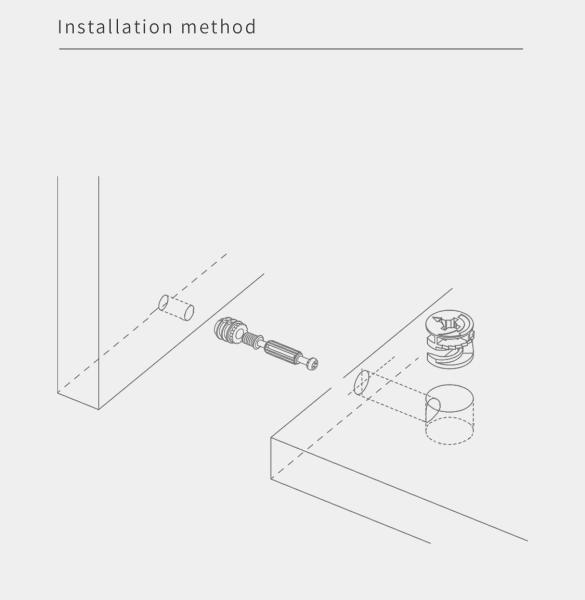

• Ease of Installation: The Minifix Bolt’s design allows for simple and quick installation without the need for additional tools or adhesives.

Applications

• Furniture Assembly: Ideal for connecting and assembling wooden panels in board-type furniture, such as cabinets, shelves, and tables, especially where the thickness of the material exceeds 15mm.
• Interior Fittings: Suitable for securing decorative elements and functional components in interior design projects.
• DIY Projects: Perfect for DIY enthusiasts looking for a reliable and efficient fastening system for their custom furniture and fixture projects.

This versatile and durable Minifix Bolt is a must-have for any project requiring strong, dependable connections in wooden materials.
