Zinc Plated Furniture Cam Lock Custom Panel Furniture Connection Kits
Zinc Plated Furniture Cam Lock Custom Panel Furniture Connection Kits
Zinc Plated Furniture Cam Lock Custom Panel Furniture Connection Kits
Zinc Plated Furniture Cam Lock Custom Panel Furniture Connection Kits
Zinc Plated Furniture Cam Lock Custom Panel Furniture Connection Kits
Zinc Plated Furniture Cam Lock Custom Panel Furniture Connection Kits
Specifications
Brand Name :
JINHAN
Model Number :
JH-1049
Certification :
ISO 9001:2015
Place of Origin :
Guangdong, China
MOQ :
5000 pcs
Price :
US $0.001-0.1
Payment Terms :
T/T, L/C
Supply Ability :
5000000 Pieces per Month
Delivery Time :
15-30 days
Packaging Details :
by carton
Diameter :
12mm
Assemble :
Easy
Torque :
Up To 12N
Product Type :
Furniture Hardware
Usage :
Bed Frame Attachment
OEM :
Available
Finish :
Zinc Plated
Application :
Office Furniture
Description

Product Description:

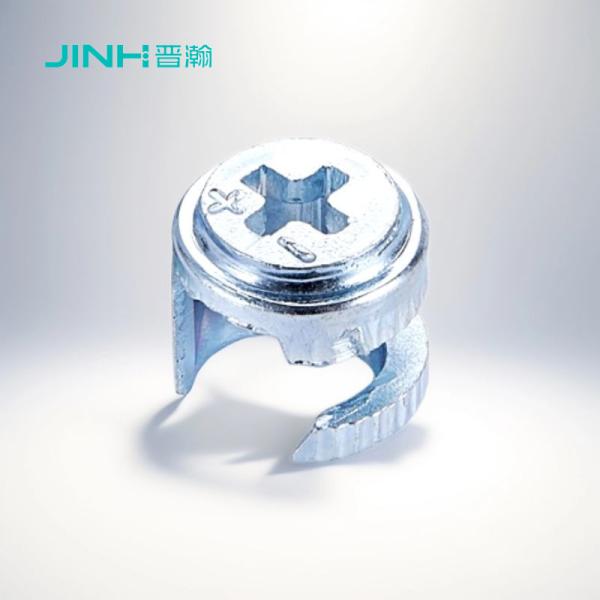

The JINHAN Minifix Cam Lock (Model JH-1049) is a high-performance fastening solution designed for seamless and durable connections in furniture assembly. Crafted from cold-rolled carbon steel with a blue zinc-plated finish, this cam lock ensures exceptional strength and corrosion resistance. Ideal for cabinetry and storage systems, it combines robust engineering with a sleek, low-profile design for both functional reliability and aesthetic appeal.

Key Features
Premium Material: Made from cold-drawn, high-quality carbon steel (superior to standard zinc alloy alternatives), offering enhanced tensile strength and long-term durability.
Hidden Installation: Low-profile design allows for discreet mounting, maintaining a clean and modern appearance.
Secure Grip: Vertical ridges on both internal and external surfaces of the eccentric cam increase friction, ensuring a tighter, more stable hold.

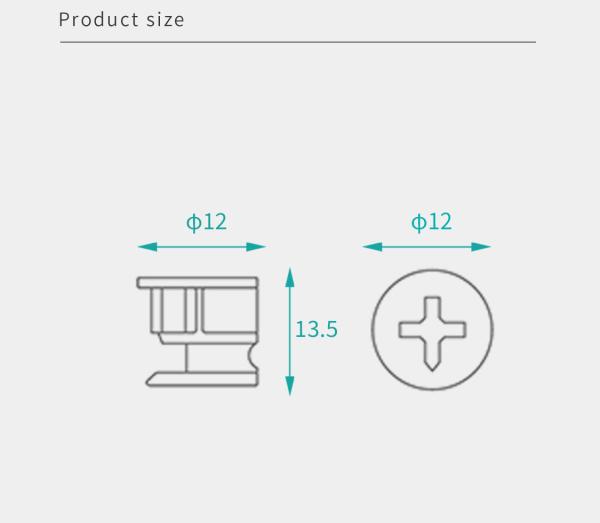

Optimized Dimensions: 12mm diameter and 13.5mm height, paired with a 13.5mm pre-drilled hole depth, ensure compatibility with standard furniture panels.
Corrosion-Resistant Finish: Blue zinc plating provides added protection against rust and wear, extending product lifespan.
Universal Model: Designed for versatile use across furniture types, including cabinets, wardrobes, and storage units.

Applications
The JH-1049 Minifix Cam Lock is engineered for connecting panels in a wide range of furniture and storage systems, such as:
Kitchen cabinets and modular units
Wardrobes and closet organizers
Shelving units and storage cabinets
Office furniture and display systems

Product Details:

JINHAN FURNITURE CONNECTOR E-CATALOGUE .pdf

Zinc Plated Furniture Cam Lock Custom Panel Furniture Connection Kits

Zinc Plated Furniture Cam Lock Custom Panel Furniture Connection Kits

Zinc Plated Furniture Cam Lock Custom Panel Furniture Connection Kits

Zinc Plated Furniture Cam Lock Custom Panel Furniture Connection Kits

Technical Parameters:

Technical Parameters Value
Product Name Furniture Cam Connector
Salt Spray Test 24H/48H
Material Cold Rolled Steel
Panel supported 15-18mm Thickness
ODM Available
Height 13.5mm
Torque Up To 12N
OEM Available
Logo Available
Finish Zinc Plated
.

Packing Method:

3000/4000/5000pcs per carton or as per your requirements.
