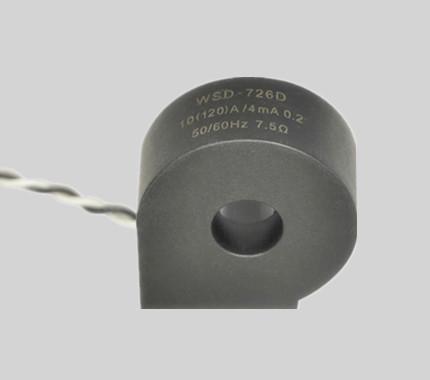

3 Phase Toroidal Current Transformer Thievery Prevention with Customized Turns Ratio
3 Phase Toroidal Current Transformer Thievery Prevention with Customized Turns Ratio
Specifications
Brand Name :
WSD
Model Number :
WSD-726D
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200000/day
Delivery Time :
14-21days
Packaging Details :
Cartons / Pallets
Max current :
80-120A
Primary current :
5-10A
Secondary current :
2-5mA
DC immunity :
Available
Anti-magnetic :
Available
Accuracy class :
0.1
Turns ratio :
2000:1 or customized
Description

3 Phase current transformer 2mA prevention of thievery toroidal DC current transformer

Suitable for high precision, small phase error requirments of three-phase electric energy meters

More space in the meter can be saved with combined current transformer

Linear output current, high precision

Encapsulated with epoxy resion,with high insulation ability

It accords with IEC60044-1 0.05 class, 0.1 class, 0.2 class

Parameters:

Rated primary current Max primary current Rated secondary current Turn ratio Accuracy class DC component Shileding Load resistance
I p(A) I max(A) I s(mA) N (%) (%) (T) Rb
5 60 2 1:2500 0.1/0.2 ±3% 300mT 5Ω,10Ω,20Ω
5 60 2.5 1:2000 0.1/0.2 　
10 60 4 1:2500 0.1/0.2 ±3%
10 60 5 1:2000 0.1/0.2 　
10 60 10 1:1000 0.1/0.2 　
5 80 2 1:2500 0.1/0.2 ±3%
10 80 4 1:2500 0.1/0.2 ±3%
10 100 4 1:2500 0.1/0.2 ±3%
10 120 4 1:2500 0.1/0.2 ±3%
　 　 　 　 　 　
Working temperature −40℃~ 85℃
Isolation voltage 4000Vrms, 1 Min, No breakdown, No arcing
Insulation resistance ≥1000MΩ
Operating temperature 50Hz~60Hz

Dimension:

3 Phase Toroidal Current Transformer Thievery Prevention with Customized Turns Ratio
