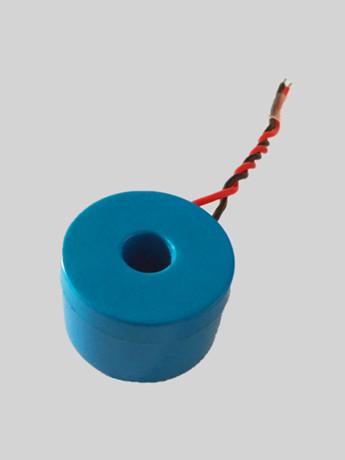

Ferrite Core 3 Phase Current Transformer , Blue Case 2.5mA DC Current Transformer
Ferrite Core 3 Phase Current Transformer , Blue Case 2.5mA DC Current Transformer
Specifications
Brand Name :
WSD
Model Number :
WSD-736D
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20000/day
Delivery Time :
14-21days
Packaging Details :
Cartons / Pallets
Max current :
60-120A
Turns ratio :
customized
Primary current :
5-10A
Secondary current :
2-5mA
Accuracy class :
0.1
DC immunity :
Available
Description

3 Phase Current transformer ferrite core blue case DC immunity DCT 2.5mA

Suitable for high precision, small phase error requirments of three-phase electric energy meters

More space in the meter can be saved with combined current transformer

Linear output current, high precision

Encapsulated with epoxy resion,with high insulation ability

It accords with IEC60044-1 0.05 class, 0.1 class, 0.2 class

Parameters:

Rated primary current Max primary current Rated secondary current Turn ratio Accuracy class DC component Shileding Load resistance
I p(A) I max(A) I s(mA) N (%) (%) (T) Rb
5 60 2 1:2500 0.05/0.1/0.2 ±3% unavailable 5Ω,10Ω,20Ω
5 60 2.5 1:2000 0.05/0.1/0.2 　
10 60 4 1:2500 0.05/0.1/0.2 ±3%
10 60 5 1:2000 0.05/0.1/0.2 　
10 60 10 1:1000 0.1/0.2 　
5 80 2 1:2500 0.1/0.2 ±3%
10 80 4 1:2500 0.1/0.2 ±3%
10 100 5 1:2000 0.1/0.2 　
　 　 　 　 　 　
　 　 　 　 　 　
Working temperature −40℃~ 85℃
Isolation voltage 4000Vrms, 1 Min, No breakdown, No arcing
Insulation resistance ≥1000MΩ
Operating temperature 50Hz~60Hz

Dimension:


Ferrite Core 3 Phase Current Transformer , Blue Case 2.5mA DC Current Transformer

About Us:

JiaXing Wisdom Electronic Tech Co., Ltd was founded in 2012, Located in Jiashan county Zhejiang province. We specialized in researching and developing miniature current transformer and miniature voltage transformer. Now we have more than 50 series of products and over hundred of specifications.

We have Independent R/ D design and manufacturing capability. As initiator of Built-in shielded magnetic interference miniature transformer, we are also the main Drafting Committee of industry standards JB/10665< Meter’ Miniature Current Transformers> and JB/T10667< Meter’ Miniature Voltage Transformers >
