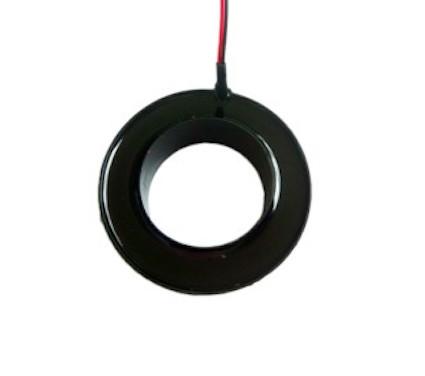

Stromwandler Single Phase Electrical Transformer Ferrite Core Type High Precision
Stromwandler Single Phase Electrical Transformer Ferrite Core Type High Precision
Specifications
Brand Name :
WSD
Model Number :
WSD-735
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200000/day
Delivery Time :
14-31days
Packaging Details :
Cartons / Pallets
Max current :
150-250A
Primary current :
5-10A
Secondary current :
2-5mA
Accuracy class :
0.1
Turns ratio :
Customized
DC immunity :
Available
Description

Single phase current transfromer ferrite core one phase DCT with High precision stromwandler type Current transfromer

Suitable for single-phase electricity meter as well as anti-tempering electricity meter

Compact and delicate appearance

Linear output current, high precision

Encapsulated with epoxy resion,with high insulation ability

It accords with IEC60044-1 0.05 class, 0.1 class, 0.2 class

Parameters:

Rated primary current Max primary current Rated secondary current Turn ratio Accuracy class DC component Shileding Load resistance
I p(A) I max(A) I s(mA) N (%) (%) (T) Rb
20 200 8 1:2500 0.1/0.2 unavailable unavailable 5Ω,10Ω,20Ω
20 200 4 1:5000 0.1/0.2
　 　 　 　 　
　 　 　 　 　
　 　 　 　 　
　 　 　 　 　
　 　 　 　 　
　 　 　 　 　
　 　 　 　 　
　 　 　 　 　
Working temperature −40℃~ 85℃
Isolation voltage 4000Vrms, 1 Min, No breakdown, No arcing
Insulation resistance ≥1000MΩ
Operating temperature 50~60Hz

Dimension:

Stromwandler Single Phase Electrical Transformer Ferrite Core Type High Precision
