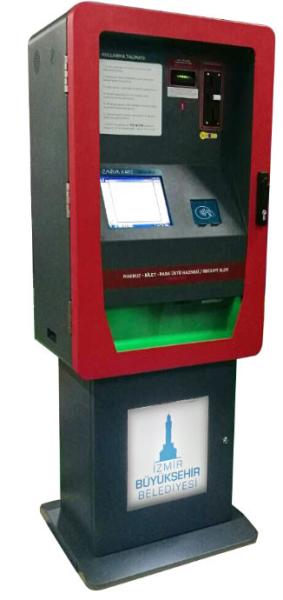

DC12V Free Standing hospital used Machines sample , public Self-Service Printing Kiosk
DC12V Free Standing hospital used Machines sample , public Self-Service Printing Kiosk
Specifications
Brand Name :
Ming tech
Certification :
Contact PBOC3.0 L1,Contactless PBOC3.0 L1,Contact EMV L1,Contactless EMV L1,CE,FCC,RHOS
Place of Origin :
China
Model Number :
MT9
MOQ :
2
Price :
negotiate
Delivery Time :
15 days<
Supply Ability :
1300 sets per days
Payment Terms :
T/T, PayPal, Western Union, D/P, CommBank.
Size :
670W*550D*1600H
Weigh :
140KG
Voltage :
220V
Kw :
<200W
CPU :
intergation J1900CPU
Description

Standard self-serve terminal with printing receipt & top -up function (coins adopt function)

Specifications
Modular Parameter
Mother board Low-power consumption MB,intergation J1900CPU；4G storage,500G HDD；one VGA,HDMI；7 USB slots,6 RS232 slots,DC12V power supply.One 10/100/1000Mbs self-adaption ethernet port.
Monitor 10.4 inchs buill-in one infrared ray screen (OGS) ,VGA slot,DC12V,resolution ration 800*600,dispaly ratio 4:3,luminace 250cd/m2,capacitive screen USB interface,resolution ratio 4096*4096. Multidirectional touch.
Currency adoption(small amount) Standard RS232 slots,DC12V/2A,Omnibearing currency recognition,1000 pieces capacity,adpotion 99%,difference countries currency available.
Banknotes (coins)
change fucntion(small amount)		 standard cctalk interface,DC24V ,1000 pieces capacity,adoption 99%,difference countries currency available.
UPS UPS backup powerbank,500VA/300W,RS232 interface,input/output AC220V/50Hz±1Hz,time switch,10-30 mins stand by time
Thermal receipt printing USB slot,DC24V/3A,Thermal print and cut,image,text available,black label detection,paper out indicator(Neop),anti-paper jamming etc.,receipt wide:80MM
Card shiftment module Standard RS232 interface,DC24V, IC&RF card read-write,card container capacity 120PCS,each card height range between 0.2-1.2mm,maximum 500PCS;
SIU RS232,software control, LED indicator
Power Interface input voltage:AC220V/350W,output vlotage:DC12/12V.DC24/8A.
Coin adoption standard cctalk interface,DC12V,under 0.04% return rate,receiving speed 2/sec,more than 32 currencies available.all of Turkish coins are receivable.2 different countries' coin can be accepted simultaneously
Audio Multi-language systems option.

Core function
● Touch screen
● Self-service top-up
● Banknotes(cash) change available
● Recipet printing
● Banknotes(cash) payment available(small amount)
● Card storage & send outfunction
● Contactless IC Card Reader

Application:

applicate in public transportation's administration and management system,allow passengers to buy tickets in different way and save queue-up time.Top-up, receipt printing change note ;


Business Organizations: Supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.


Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;


Non-profit Organizations: Telecommunications, post offices, hospital, schools;

DC12V Free Standing hospital used Machines sample , public Self-Service Printing Kiosk
