Precision Micro-Pressure Welding Head for Sensitive Substrates and FPC

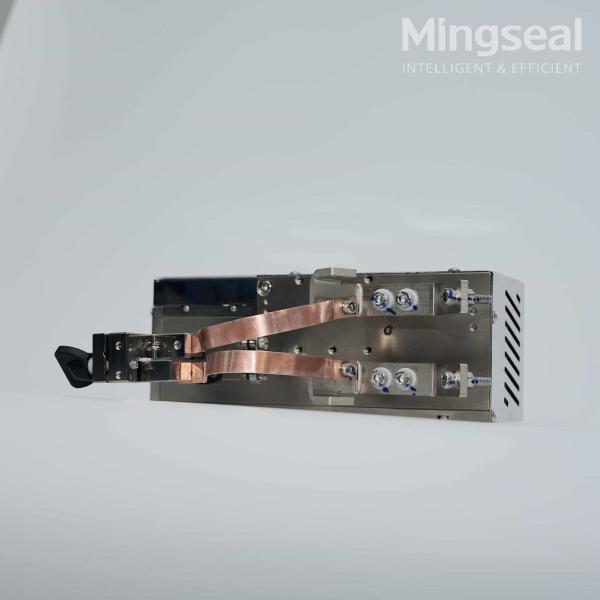

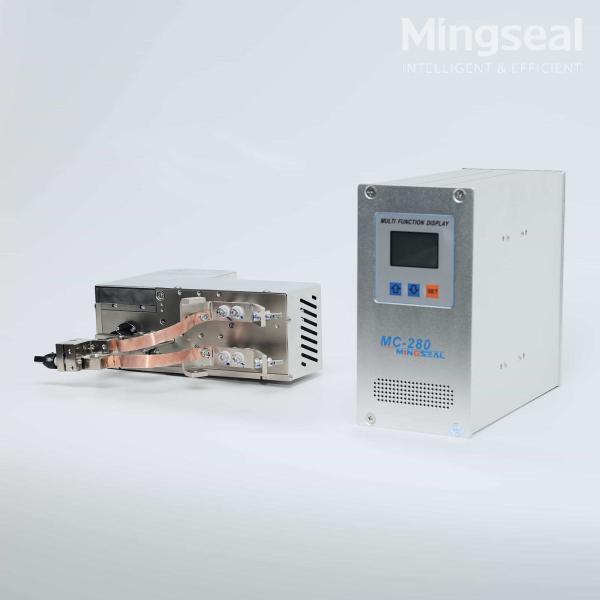

The MF280RS Micro-Pressure Welding Head is a compact, high-accuracy spot welding module specially engineered to handle delicate welding scenarios where low force and stable pressure are critical. Designed for thin plating layers, heat-sensitive substrates, and flexible printed circuit (FPC) assemblies, the MF280RS delivers consistent micro-pressure control for demanding electronic manufacturing environments.With a finely adjustable pressure range of 40g to 1000g and a remarkable 1g resolution, this welding head ensures precise force application to prevent surface damage or delamination of thin metal coatings and sensitive circuit layers. Its real-time pressure monitoring and automatic alarm function guarantee that every weld point meets strict process parameters.

Competitive Advantages

• Ultra-Precise Micro-Pressure Control: Adjustable from 40g to 1000g with fine 1g steps.
• Stable Welding Force: High control accuracy up to ±2%FS minimizes pressure variation.
• Real-Time Monitoring & Alarm: Built-in pressure sensor records and monitors each welding cycle.
• Compact & Lightweight: Fit easily into tight workspaces and modular production lines.
• Seamless Automation Integration: Equipped with a stepper motor drive, photoelectric actuation, and standard MODBUS-RTU protocol, ready for advanced robotic assembly environments.

Application Fields

✓ Enameled wire welding on heat-sensitive circuits
✓ Thin plating layer spot welding for micro connectors
✓ FPC (Flexible Printed Circuit) bonding and tab welding
✓ Hot riveting of positioning posts on delicate substrates
✓ Micro-precision assembly for high-end electronics and sensors

Technical Specifications

Q&A

Q1: Why is MF280RS recommended for thin plating and FPC welding?
A: Its micro-pressure control and ultra-fine 1g resolution allow precise force application, preventing dents, cracks, or delamination on fragile metal layers and flexible circuit boards.

Q2: Can it be integrated into automated lines?
A: Yes. The MF280RS supports MODBUS-RTU communication and photoelectric actuation, making it fully compatible with robotic arms and smart assembly systems.

Q3: How does it help ensure weld quality?
A: Real-time pressure sensing records every weld point. The built-in alarm system alerts operators immediately if force exceeds preset limits, improving yield and traceability.

Q4: Is it easy to install?
A: Absolutely. Its lightweight, compact design requires minimal space and simple mounting, ideal for retrofitting or new line setups.

Contact Us

Protect your sensitive substrates and achieve stable, high-quality micro spot welding with confidence.
Contact us today to learn how the MF280RS Micro-Pressure Welding Head can enhance your precision assembly lines for FPCs, thin coatings, and delicate electronic parts.
