High Precision Fluid Dispensing Nozzle Tungsten Steel Ceramic Adhesive Dispensing Nozzles
High Precision Fluid Dispensing Nozzle Tungsten Steel Ceramic Adhesive Dispensing Nozzles
High Precision Fluid Dispensing Nozzle Tungsten Steel Ceramic Adhesive Dispensing Nozzles
High Precision Fluid Dispensing Nozzle Tungsten Steel Ceramic Adhesive Dispensing Nozzles
High Precision Fluid Dispensing Nozzle Tungsten Steel Ceramic Adhesive Dispensing Nozzles
High Precision Fluid Dispensing Nozzle Tungsten Steel Ceramic Adhesive Dispensing Nozzles
Specifications
Brand Name :
Mingseal
Model Number :
Selection based on actual usage scenarios
Certification :
ISO，ROHS
Place of Origin :
China
MOQ :
1pc
Price :
$170-$400 / pc
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000 pcs per month
Delivery Time :
5-60 Days
Packaging Details :
carton
Description

Quick Detail:

  • High accuracy, speed and durability of fluid control
  • Corrosion resistance, wear resistance, high hardness, long lifespan
  • Key components of the piezoelectric jetting valve
  • Different sizes, materials, and designs are suitable for different applications
  • Adhesive dispensing nozzles are widely used in electrical devices, semiconductors, automotive manufacturing, etc

Description:

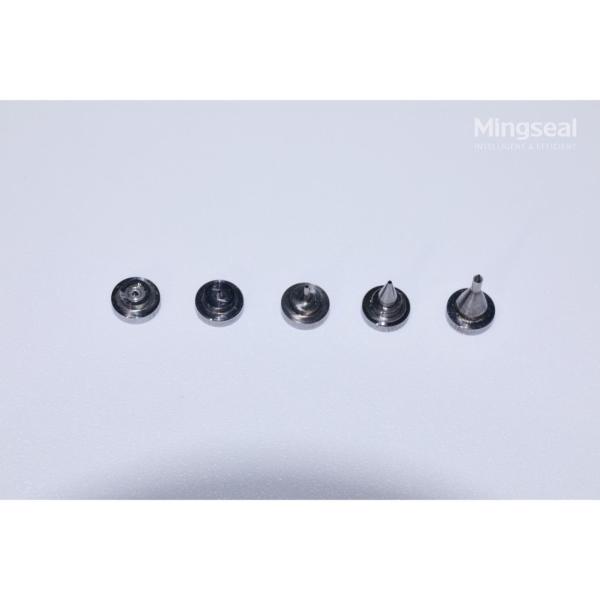

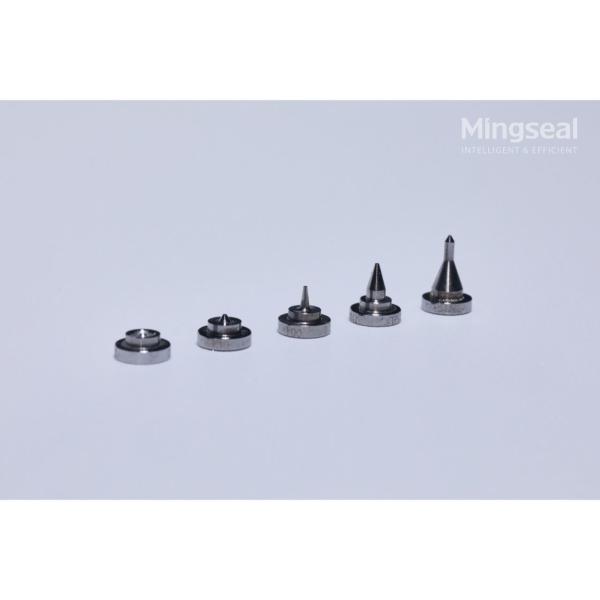

Piezoelectric jetting valve dispensing nozzle is a critical component in dispensing systems that utilize a piezoelectric actuator to precisely eject fluids without contact. This technology allows for high-speed, accurate dispensing of various materials, making it suitable for a wide range of applications, including electronics assembly, micro-dispensing, and more.

The nozzle inner diameter determines the size of the dispensed dots or lines. Mingseal’s common nozzle sizes range from 30µm to 400µm. Dispensing tips and nozzles can be made from different materials like tungsten steel, ceramic, PEEK, etc.

And glue dispenser nozzle shapes can be designed for different dispensing patterns and applications.

Applications:

üInk-jet printing

üPrecision coating

üMicro flow control

üEpoxy, UV, silicone, PUR, thermal setting glue, red glue, solder paste

üSemiconductor advanced packaging

üPiezo-jetting process

Dispensing Nozzles Selection List

Type Length
/ mm		 Material ID / mm Model Picture
VZ type 1.75mm tungsten steel 0.03mm VZ03

1.75mm tungsten steel 0.04mm VZ04
1.75mm tungsten steel 0.05mm VZ05
1.75mm tungsten steel 0.06mm VZ06
1.75mm tungsten steel 0.07mm VZ07
1.75mm tungsten steel 0.10mm VZ10
1.75mm tungsten steel 0.15mm VZ15
1.75mm tungsten steel 0.20mm VZ20
1.75mm tungsten steel 0.25mm VZ25
1.75mm tungsten steel 0.30mm VZ30
1.75mm tungsten steel 0.40mm VZ40
VZ-T2 type 2.25mm tungsten steel 0.05mm VZ05-T2
2.25mm tungsten steel 0.06mm VZ06-T2
2.25mm tungsten steel 0.07mm VZ07-T2
2.25mm tungsten steel 0.10mm
