Specifications
Brand Name :
Mingseal
Model Number :
VS300D
Certification :
ISO CE
Place of Origin :
China
MOQ :
1
Price :
$6000-$50000 / pcs
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
150 sets per month
Delivery Time :
5-60 Days
Packaging Details :
Wooden Case
Max. Fixture Weight :
10KG
Identify Accuracy :
±1pixel
Power :
500W
Description

Multi-Surface Glue Dispensing System for Smartphone Camera Modules

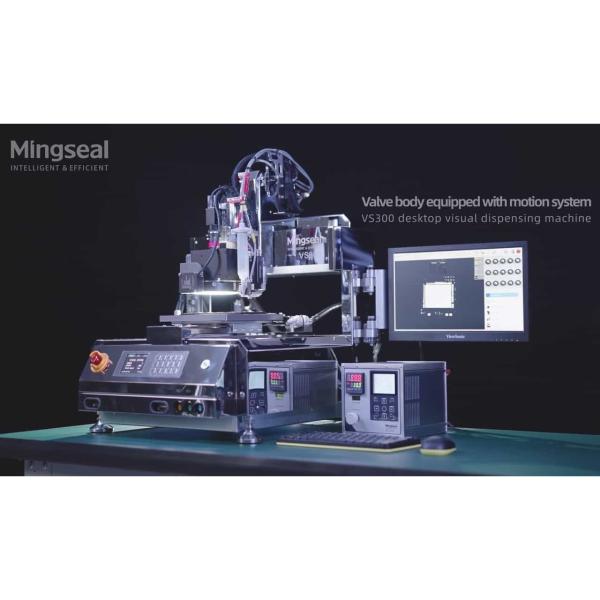

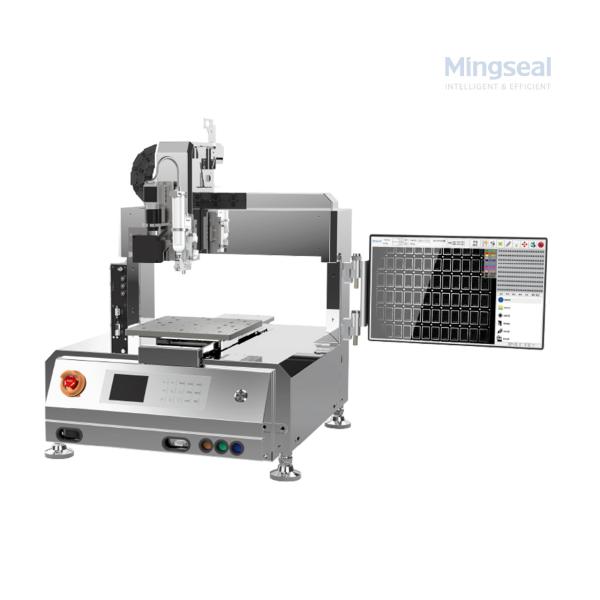

The VS300 Series Desktop Dispensing Machine, developed by Mingseal, is purpose-built for precise glue dispensing on multiple surfaces — including top, bottom, and side faces demanding tasks. It integrates a high-precision horizontal rotary module, enabling stable dispensing on cylindrical, curved, or multi-surface components.

Whether you need to dispense UV glue, epoxy, or structural adhesives on camera lenses, optical barrels, or tiny FPC connections, the VS300 can easily adapt to different process requirements with excellent repeatability and consistent glue line quality.

Key Advantages

Multi-Surface Dispensing Capability Equipped with a horizontal rotary module, the VS300 allows horizontal rotation of the workpiece, ensuring precise glue application on the front, back, or side of camera modules.
Supports Cylindrical & Curved Surfaces Ideal for lens barrels, optical cylinders, or dome-shaped components. The 4-axis control ensures the glue bead remains uniform, even on curved geometries.
Compact Desktop Design Small footprint, easy to integrate into cleanrooms or standard assembly workstations.
Flexible for Different Adhesives Compatible with UV glue, heat-cure epoxy, and structural bonding agents used in smartphone camera modules.

Typical Applications

Smartphone camera module front, back, and side glue dispensing

Lens barrel bonding and sealing

Optical module edge coating

Mini FPC reinforcement

Micro speaker and sensor module glue application

Technical Specifications

VS300 Series Desktop Dispensing Machine

Cleanliness of Working Area

Class 100 (Class 1000 workshop)

Max. Fixture Weight

10kg (with Product )

Transmission System

Servo motor&Screw module

Repeatability

X/Y: ±0.015mm

Positioning Accuracy

X/Y: ±0.025mm

Max. Speed

X/Y:500mm/s Z:300mm/s

Max. Acceleration

X/Y:0.5g Z:0.3g

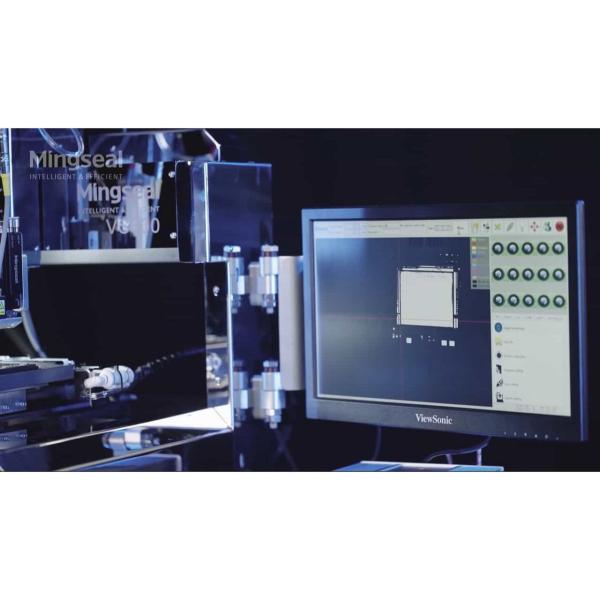

Visual Positioning Method

Mark/Product appearance features

Identify Accuracy

±1pixel

Dimensions W*D*H

860×630×690mm

Weight

75KG

Power Supply

220V AC 50Hz

Power

500W

Air Inlet

0.5Mpa,150L/min

Operation Environment Temperature

0-40℃

Operation Environment Humidity

20-90% (no dewing)

FAQ

Q1: What type of smartphone camera processes does the VS300 support?

A: The VS300 series is designed for precise dispensing on camera lenses, barrels, sensors, and FPC modules, handling front, back, and side dispensing tasks.

Q2: Can it handle curved and cylindrical parts?

A: Yes! The horizontal rotary module enables smooth rotation, ensuring uniform glue lines on curved or cylindrical surfaces.

Q3: Is it suitable for small-batch or pilot production?

A: Absolutely. The desktop size and flexible configuration make it perfect for small-volume, high-mix processes and prototype lines.

Q4: Which regions can benefit from VS300?

A: Many camera module manufacturers in Southeast Asia, India, South Korea, and other electronics hubs trust the VS300 for its cost-effective precision dispensing.

Contact Us

Mingseal’s VS300 Series has already helped smartphone camera module makers worldwide improve dispensing quality and production flexibility. Contact us today for more technical details, free sample tests, or a customized solution for your specific camera module assembly line!
