Specifications
Brand Name :
MINGO
Model Number :
MG-36AD
Certification :
ISO CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Delivery Time :
30days
Packaging Details :
Wooden box packaging
Cooling capacity :
104KW/h
Cooling method :
Air-cooled
Voltage :
3Ph-380V/415V-50Hz/60Hz
Refrigerant :
R22, R404A, R407c, R134A
Compressor type :
Hermetic scroll type or piston
Compressor power :
27KW
Fan CMS :
40000m³/s
Condensator :
Brass sets corrugated aluminum fin
Pump :
4KW
Pump lift :
25m
Ambient temperature :
Customize
Dimension :
1900mm-1500mm-1700mm (L-W-H)
Name :
Air Cooled Industrial Chiller
Description

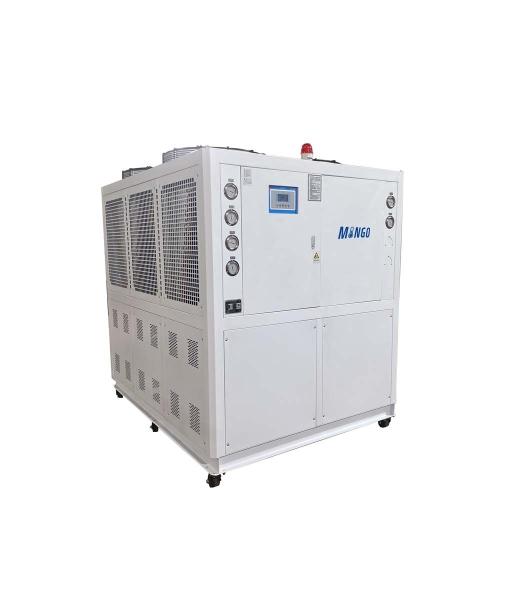

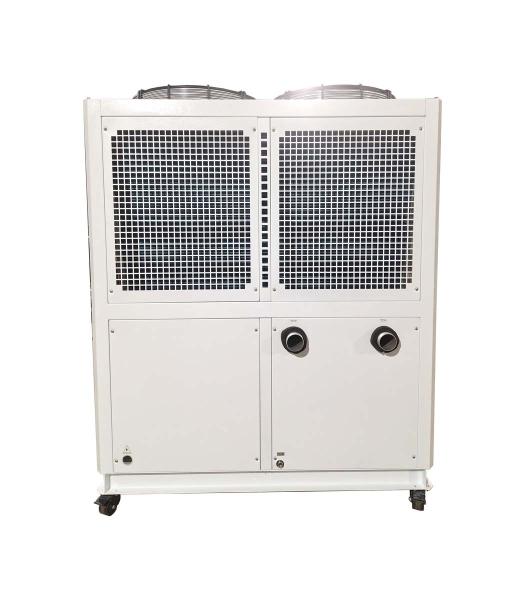

36HP Air-Cooled Industrial Chiller

Elevate your industrial cooling capabilities with our **36HP Air-Cooled Industrial Chiller**. This powerful and efficient cooling solution is designed to meet the rigorous demands of various industrial applications, providing reliable temperature control to enhance productivity and protect your equipment.

Key Features:

  • High Cooling Capacity: 36 horsepower compressor delivers rapid and efficient cooling.
  • Energy Efficient Design: Optimized for low energy consumption, reducing operational costs.
  • Durable Construction: Built with robust materials to withstand harsh industrial environments.
  • User-Friendly Digital Control Panel**: Simple monitoring and adjustments for precise temperature settings.
  • Quiet Operation: Designed for minimal noise, making it ideal for noise-sensitive environments.
  • Integrated Safety Features: Equipped with alarms and safety shut-off systems to protect equipment.

Specification

Voltage 3/N/PE 380/220V 50Hz
Cooling capacity kW/h 104
Kcal 89780
Compressor power kW 9*3
type Hermetic scroll type or piston
Refrigerant type R22, R404A, R407c, R134A
Condenser type Efficient brass sets corrugated aluminum fin
Fan power KW 3.1
air volume m³/h 40000
Evaporator type immersion / plate / shell and tube High Efficiency Heat Exchangers
water flow m³/h 18.6
Pipe dimension G3’’
Pump Power KW 4
Lift m 25
Protection device High pressure protection, low pressure protection, overload protection, antifreeze protection, flow protection
Ambient temperature ºC 3-room

Applications:

  • Manufacturing: Ensures consistent cooling for machinery and production processes.
  • Plastics: Maintains optimal temperatures for injection molding and extrusion processes.
  • Pharmaceuticals: Provides precise temperature control for sensitive manufacturing processes.
  • Food Processing: Essential for maintaining product quality and safety during processing.
  • HVAC Systems: Can be integrated into larger heating and cooling systems for enhanced efficiency.

Benefits:

  • Increased Efficiency: Maintains optimal operating temperatures, reducing equipment strain and preventing overheating.
  • Cost Savings: Energy-efficient operation lowers utility bills, contributing to long-term savings.
  • Extended Equipment Lifespan: Protects machinery from temperature-related damage, prolonging service life.
  • Improved Product Quality: Consistent cooling ensures quality control in manufacturing processes.
  • Flexibility: Suitable for a wide range of applications, making it a versatile addition to your facility.

Invest in our 36HP Air-Cooled Industrial Chiller to optimize your operations, enhance productivity, and ensure reliable cooling performance in any industrial setting!
