Specifications
Brand Name :
MINGO
Model Number :
MG-10AD
Certification :
ISO CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Delivery Time :
30days
Packaging Details :
Wooden box packaging
Name :
Industrial Chiller Air Cooled
Cooling capacity :
50HZ-28.01KW/Hr 60HZ-32.78KW/Hr
Input power :
9.90KW
Cooling method :
Air-cooled
Voltage :
3Ph-380V/415V-50Hz/60Hz
Pump power :
1.5KW
Pump lift :
21.5m
Temperature range :
21.5m
Refrigerant :
R22, R404A, R407c, R134A
Fan CMS :
10000m³/s
Condensator :
Brass sets corrugated aluminum fin
Compressor type :
Hermetic scroll type or piston
Dimension :
1330mm-725mm-1330mm (L-W-H)
Description

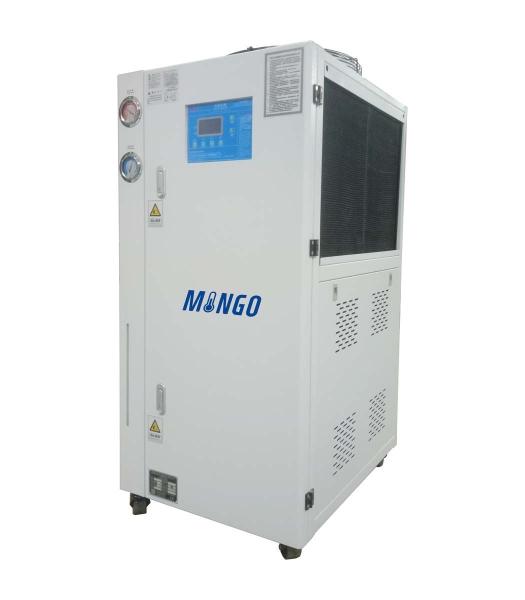

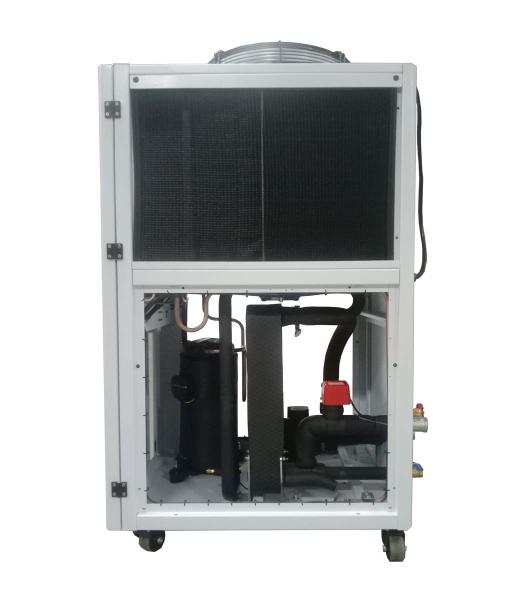

Air Cooled Industrial Chiller 10HP Cooling Capacity 1 Pc Fan Digital Control

10HP Air-Cooled Industrial Chiller: Powerful Cooling for Demanding Industrial Environments

Introducing our 10HP air-cooled industrial chiller, engineered for high efficiency and reliability in a wide range of industrial applications. This robust unit delivers superior temperature control, ensuring optimal performance while minimizing energy consumption and operating costs.

Applications:

  • Manufacturing: Ideal for cooling machinery and production lines, enhancing efficiency and prolonging equipment lifespan.
  • Plastics Industry: Perfect for maintaining consistent temperatures during injection molding and extrusion processes, reducing defects and improving product quality.
  • HVAC Systems: Supports large-scale heating, ventilation, and air conditioning applications, ensuring comfort in commercial and industrial settings.
  • Food and Beverage Processing: Maintains precise temperatures for chilling, fermentation, and storage, ensuring compliance with health and safety standards.
  • Laser Cutting and CNC Machining: Protects sensitive machinery from overheating, guaranteeing accuracy and reliability in precision operations.

Specification:

Voltage 3/N/PE 380/220V 50Hz
Cooling capacity kW/h 50HZ-28.01 60HZ-32.78
Kcal 50HZ-24089 60HZ-28184
Compressor power kW 7.50
type Hermetic scroll type or piston
Condenser type Efficient brass sets corrugated aluminum fin
Fan power KW 0.9
air volume m³/h 10000
Evaporator type immersion / plate / shell and tube High Efficiency Heat Exchangers
water flow m³/h 4.82-5.64
Pipe dimension G2"
Pump Power KW 1.5
Lift m 21.5
Protection device High-pressure protection, low-pressure protection, overload protection, antifreeze protection, flow protection
Ambient temperature ºC 3-room

Benefits:

  • High Energy Efficiency: Designed to significantly reduce energy costs, making it an environmentally friendly choice without compromising performance.
  • Compact and Robust Design: Space-saving footprint allows for easy installation in tight spaces while maintaining durability for industrial use.
  • User-Friendly Interface: Equipped with intuitive controls for easy operation and monitoring, simplifying management and maintenance tasks.
  • Durable Construction: Built with premium materials to withstand harsh industrial conditions, ensuring long-lasting reliability and reduced downtime.
  • Eco-Friendly Refrigerant: Utilizes environmentally safe refrigerants, aligning with your sustainability goals and regulatory requirements.

Elevate your industrial cooling solutions with our 10HP air-cooled industrial chiller, where exceptional performance meets unmatched reliability for all your cooling needs.
