Specifications
Brand Name :
MINGO
Model Number :
MG-50WS
Certification :
ISO CE
Place of Origin :
China
MOQ :
1
Delivery Time :
30
Packaging Details :
Wooden box packaging
Cooling capacity :
50Hz-153.91KW/Hr 60Hz-180.07KW/Hr
Cooling method :
Water-cooled
Voltage :
3Ph-380/415V-50/60Hz
Compressor brand :
Hermetic scroll type or piston
Compressor power :
37.5KW
Condenser type :
Copper tube shell
Condenser CMS :
33.09-38.72 m3/h
Pump power :
4KW
Pump lift :
25m
Dimension :
2100mm-1000mm-1400mm (L-W-H)
Ambient temperature :
3ºC-35ºC(can be customized)
Name :
Water Cooled Industrial Chiller
Description

Water Cooled Industrial Chiller 50HP 180.07KW/Hr Cooling Capacity For Chemical Processing Or More,

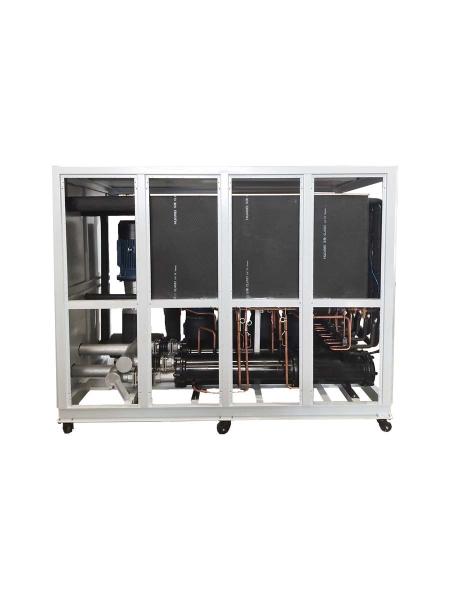

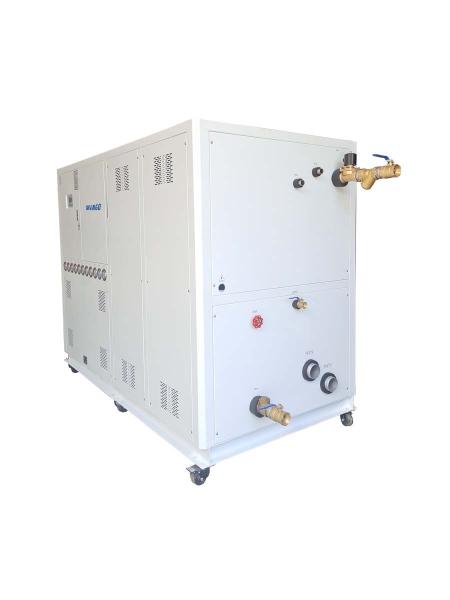

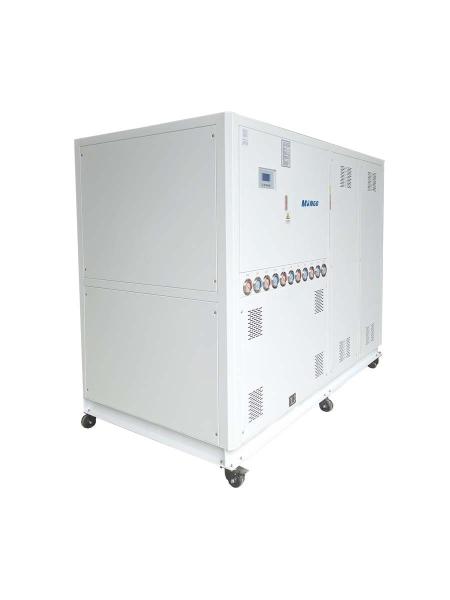

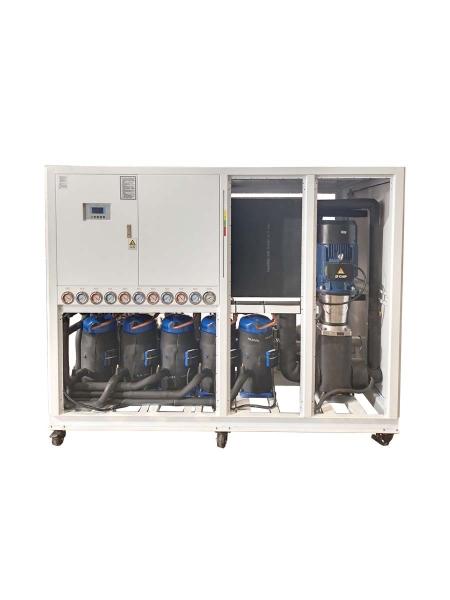

50HP Water-Cooled Industrial Chiller


The 50HP Water-Cooled Industrial Chiller is a robust and efficient cooling solution designed to meet the demanding thermal management needs of large-scale industrial operations. Engineered for reliability and performance, this chiller is ideal for applications requiring consistent and effective cooling in various environments.

Key Features:

  • High Cooling Capacity: With a powerful 50HP output, this chiller effectively handles substantial cooling loads, ensuring optimal temperature control for industrial processes.
  • Water-Cooled Design: Utilizes a water-cooling system for enhanced efficiency, making it suitable for facilities with access to cooling water sources.
  • Energy-Efficient Operation: Designed with advanced technology to minimize energy consumption while delivering consistent cooling performance, leading to lower operational costs.
  • User-Friendly Control Panel: Features an intuitive interface that allows for easy operation, real-time monitoring, and diagnostics to optimize performance.
  • Durable Construction: Built with high-quality materials to withstand harsh industrial conditions, ensuring longevity and reliability.
  • Quiet Operation: Engineered for low noise levels, providing a comfortable working environment.

Specification:

Voltage 3N-380/415V-5060Hz
Cooling capacity kW/h 50HZ-153.91 60HZ-180.07
Kcal 50HZ-132359 60HZ-154860
Compressor power kW 37.50
type Hermetic scroll type or piston
Refrigerant type R22, R404A, R407c, R134A
Condenser type Efficient copper tube shell and tube type
water flow m³/h 33.09-38.72
Pipe dimension G3"
Evaporator water solubility 0.560
water flow m³/h 26.48-30.98
Pipe dimension G3"

Pump

Power KW 4.0
Lift m 21
Protection device High pressure protection, low pressure protection, overload protection, antifreeze protection, flow protection
Ambient temperature ºC 3-room

Applications:

  • Manufacturing Facilities: Ideal for cooling machinery and processes in various manufacturing operations, enhancing productivity and efficiency.
  • Plastic Injection Molding: Provides reliable cooling for injection molding processes, ensuring consistent product quality and reducing cycle times.
  • Food and Beverage Processing: Maintains optimal temperatures in food processing and beverage production, preserving product integrity and safety.
  • HVAC Systems: Can be integrated into larger HVAC systems for efficient cooling in commercial buildings, improving comfort and air quality.
  • Data Centers: Supports cooling requirements for IT equipment in data centers, ensuring stable operating conditions for critical systems.

Benefits:

  • Enhanced Efficiency: The water-cooled design maximizes cooling efficiency, reducing energy consumption and operational costs.
  • Improved Equipment Lifespan: Consistent temperature control prevents overheating, extending the life of machinery and equipment.
  • Increased Productivity: Reliable cooling minimizes downtime and enhances operational efficiency, contributing to higher productivity levels.
  • Cost Savings: Energy-efficient operation and effective cooling reduce overall costs, making it a smart investment for industrial applications.


Choose the 50HP Water-Cooled Industrial Chiller for a reliable and efficient cooling solution tailored to meet the demands of your industrial processes. Experience the advantages of advanced thermal management technology with this robust unit!
