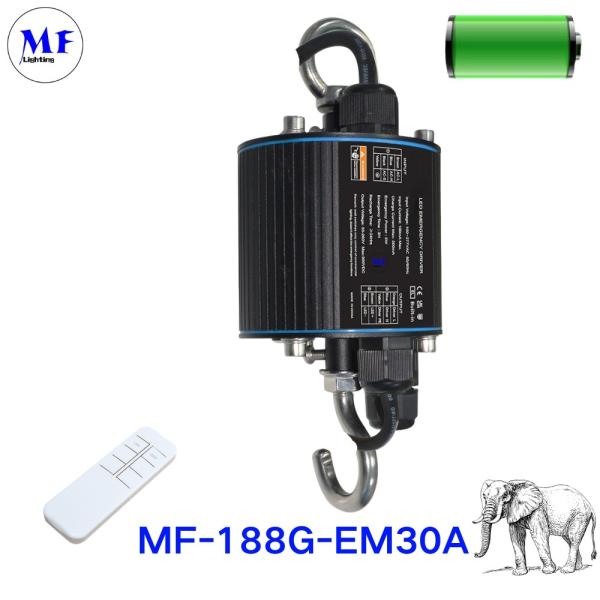

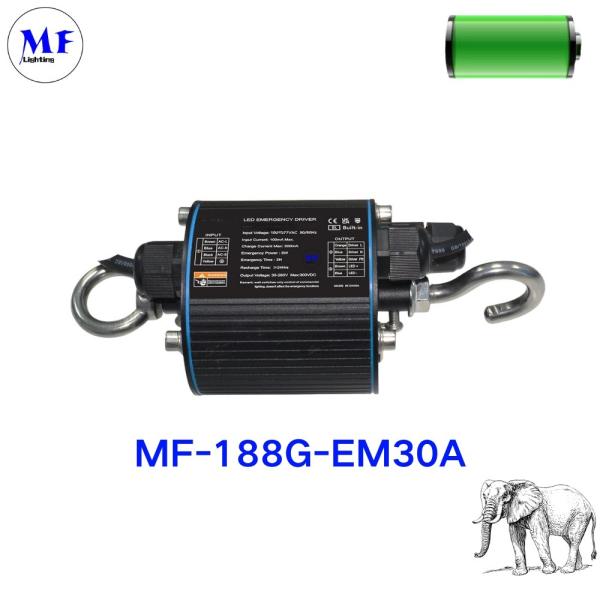

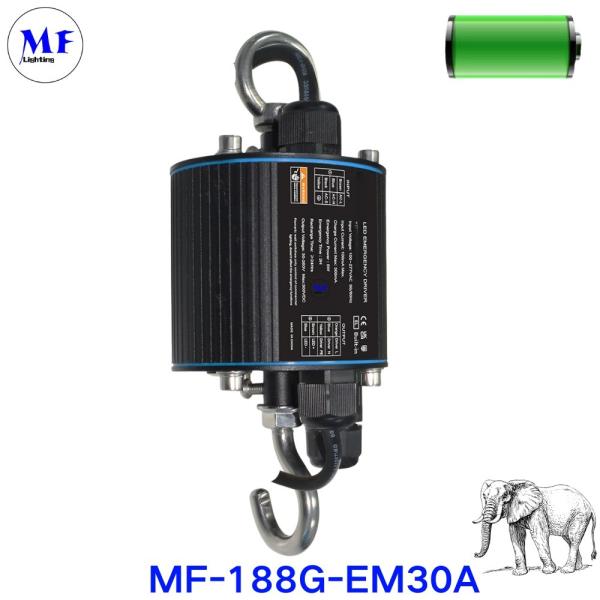

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light
LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light
LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light
LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light
LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light
LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light
LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light
LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light
LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light
LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light
Specifications
Brand Name :
MF
Model Number :
MF-EMUFO-XXW-170
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
USD
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
10000PCS/Month
Delivery Time :
5-8working days
Packaging Details :
Carton
Universal Input Voltage :
100-277VAC/347VAC 50/60Hz
AC Input Current :
200mamax
Input Power Rating :
12W Max
Output Voltage :
170
Emergency Power :
25W/30W/40W
Recharge Time :
24hrs
Discharge Time :
90 Minute
Battery :
Li-ion
Ambient Temp :
32~122f(0~50°c)
Weight :
5.10 Lbs(2.2kg)
Description

High Bay Light LiFePO4 Battery Back Up IP65 15W-3H/20W-2H/30W-1.5H Discharge Time Self-detect LED Emergency Driver Power Supply Emergency Conversion Kit

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light

descriptions:


self-detect
constant power emergency output
apply to constant current driver external lighting products
LiFePO4 using together
battery: over-charge/discharge protection and short circuit protection
working environment: temp.: 0 to 60°C
IP65 standard
not suitable for high risk lighting environment
Accessories: integrated waterproof button and indicator light, remote control
3years warranty

Input voltage 220-240Vac, 50/60Hz
Input current 0.003A Max. @230Vac
Charging power:
5.0W max.
Power factor
>0.5
Emergency output Voltage
DC100-260V,DC300V Max.
Emergency output Current:
58-150mA/ 75-200mA/115-300mA
Case temperature
to 60ºC Max.
IP Rating IP 65
Warranty 3 Years
Battery Data Li-ion 2.6Ah 7.4V
Discharging time&Power 5W 3H

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof LightLED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof LightLED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light

LED indicator:
Green breathing pattern: charging mode
Green stable: battery fully charged
Red flashing: failure as below
Red flashing Once per second: Battery is not connected
Battery is defective
Red flashing four times a second: Load failure during emergency mode, open circuit/short circuit
Green flashing: Emergency status one per second


Remote control:
1: 0S < Key ON ≤1S, Enter a simulated state of emergency, the green indicator blinks once every second
2: 0S < Key OFF ≤1S, In simulated emergency situations, return to the normal charging state
3: 0S < Key OFF ≤1S, In the emergency state, the emergency state is turned off.


Self-test:
When emergency driver is on power, every 180 days ±1 day automatically enter the emergency state, emergency duration until the battery is discharged, then return to power-on status

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof LightLED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof LightLED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light

Application:
school,hospital,subway,train station,shoppingmall,supermarket,airport,office, factory,hotel,basement,parking lot,public place
