Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural
Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural
Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural
Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural
Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural
Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural
Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural
Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural
Specifications
Certification :
CE, RoHS
MOQ :
1
Price :
269
Input Voltage :
220V
Luminous Flux :
300-350lm
CRI :
>97ra
Power Factor :
>0.93
Gobo Type :
Single/Double/Full Color Gobo
Beam Angle :
15-25°(4525se) / 20-36°(4536se)
Housing Color :
Black White
Support Filters :
58
Beam Shapeability :
Shapeable & Zoomable
Dimensions :
65x182.5
Wattage :
10W
Light Source :
Os-ram
Working Time :
50000 hours
Thermal Conductivity :
226W/m.K
Maximum Diameter :
36mm
Description

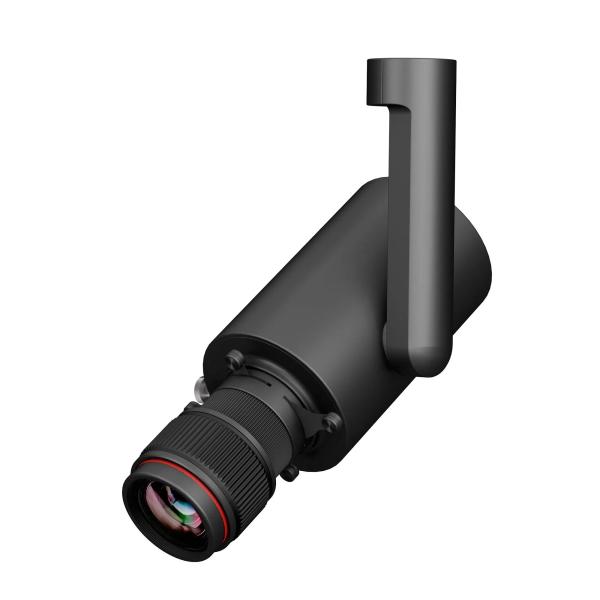

Professional-Grade DIP Color Dimmable Smart Control Shapeable Projection Track Light
Factory price optical-grade variable aperture dimmable shapeable projection track light for logo projection and architectural applications.
Product Specifications
Product NameT1008S
Item TypeShapeable Track Light/LED Track Light/LED Spot Light
Wattage10W
Luminous Flux300-350LM
Supported Filters58
Input Voltage220-240V
Light SourceOsram
CRI (Ra>)97
Housing ColorWhite, Black

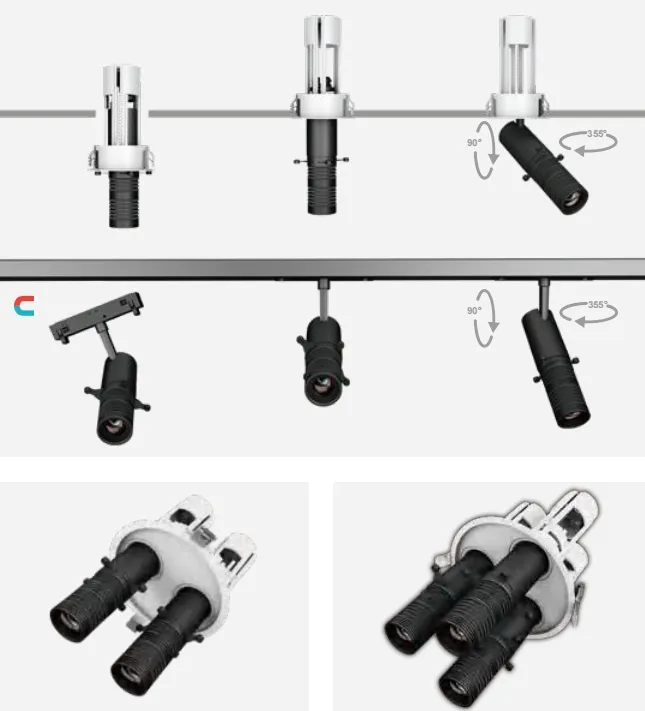

InstallationTrack-Mounted, Wall-Mounted
Working Time50,000 hours
Warranty5 years
GZ series shapeable track light features a compact design with dry mechanical damping system. It achieves stable and reliable front and rear zoom, spot shaping and projection, offering ultra-high cost performance suitable for modern commercial lighting design and no main lamp design.
Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural

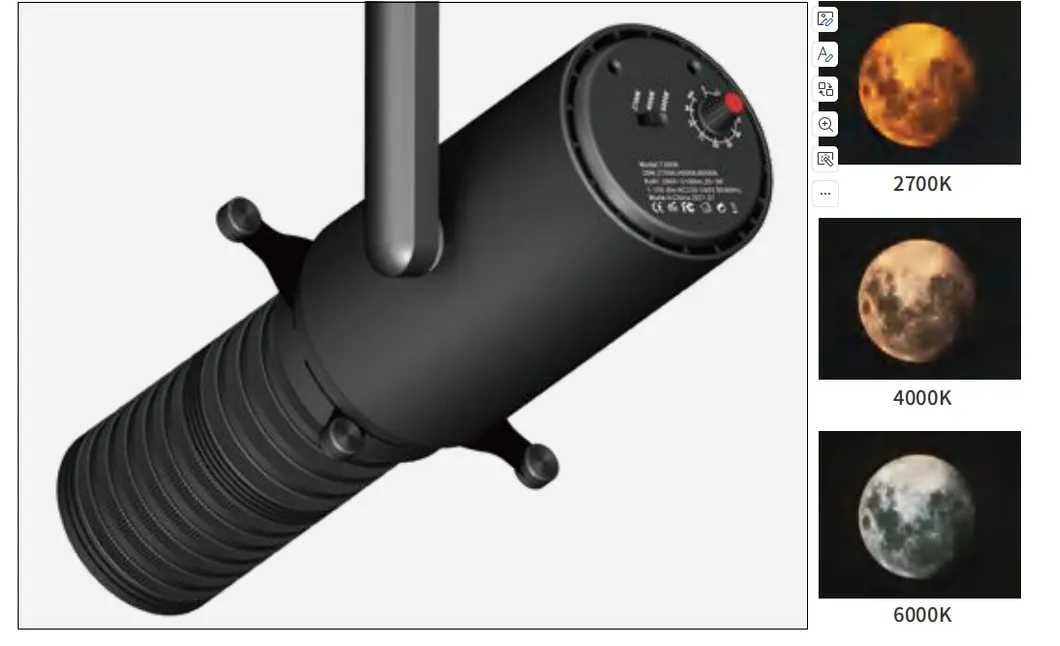

DIP color temperature coupled with the single lamp knob dimming design enables easy single lamp dimming, spot shaping and color temperature adjustment. Can be used alone or equipped with other dimming devices.
Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural
Filter System Details
Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural
  • Color Filter: Adjusts luminous color according to your requirements
  • ND Filter: With electronic dimming, reduces small-angle illumination to less than 75LUX for authentic lighting
  • UV Filter: Effectively filters UV rays in LED lamps, protecting illuminated objects - ideal for silk products and cultural relics lighting
  • CPL Filter: Eliminates surface reflection, displaying objects' original appearance in high luminosity environments
  • GND Filter: Alters light ratio into the lens, enabling even and constant illumination of objects
Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural

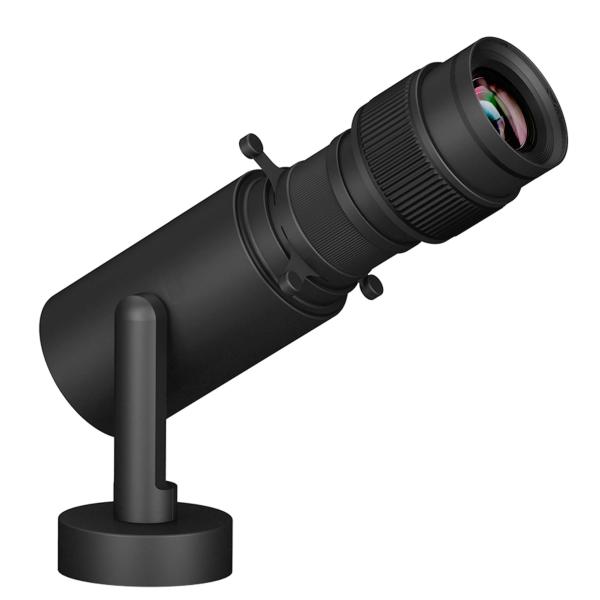

Mini shapeable track light with maximum diameter of only 36mm and maximum angle up to 45 degrees. Suitable for any commercial lighting application. Supports embedded installation, magnetic installation, and track installation.
Advanced Features
Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural
Cold Forging Integrated Radiator Design
Radiator made of 1070# pure aluminum molded by pressure molding. High thermal conductivity (226W/m.K), low temperature differences, low light failure, and long service life.

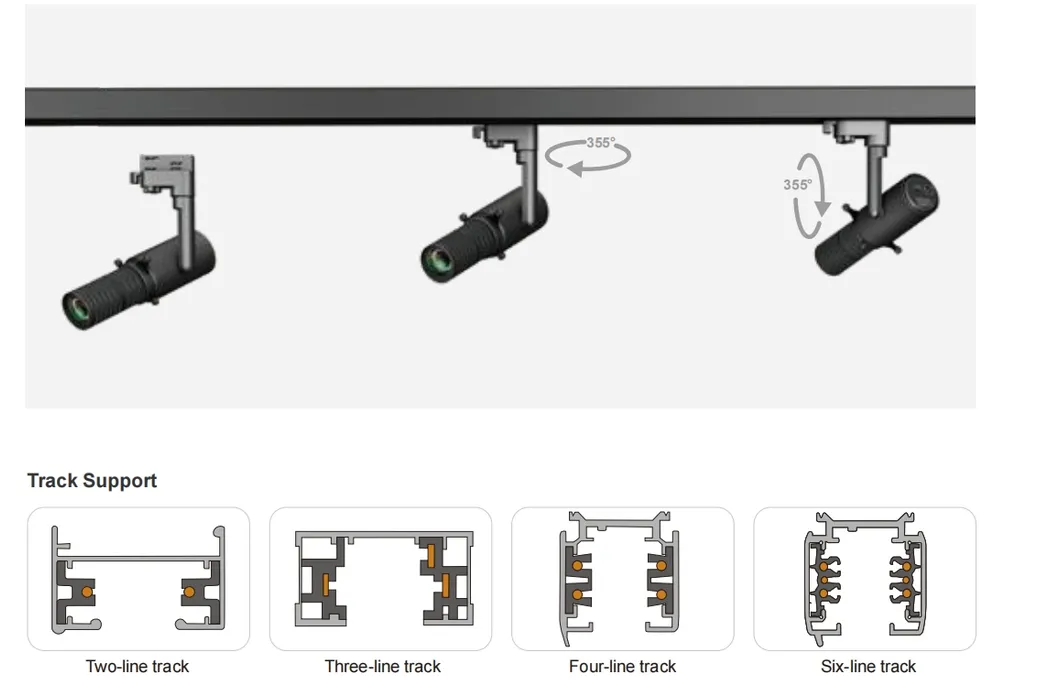

360° Manual Rotation Design
Loosen manual screw and turn lens to achieve 360° spot rotation adjustment. Solves 360° rotation of projection and light spot.
Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural
High-Definition Optical Lens Design

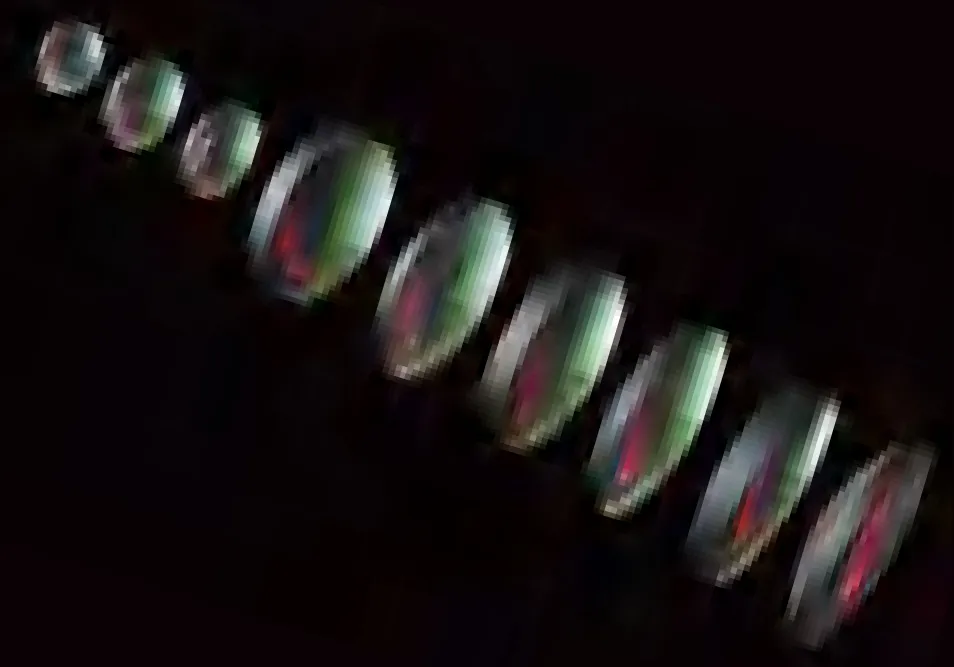

Formed by multiple high-definition coated optical lenses. Features high luminous efficiency, high spot uniformity, minimal distortion, extensive linear zoom range, and excellent spot cut-off line. Specially designed optical path for COB light sources.
Optical-Grade Variable Aperture Design

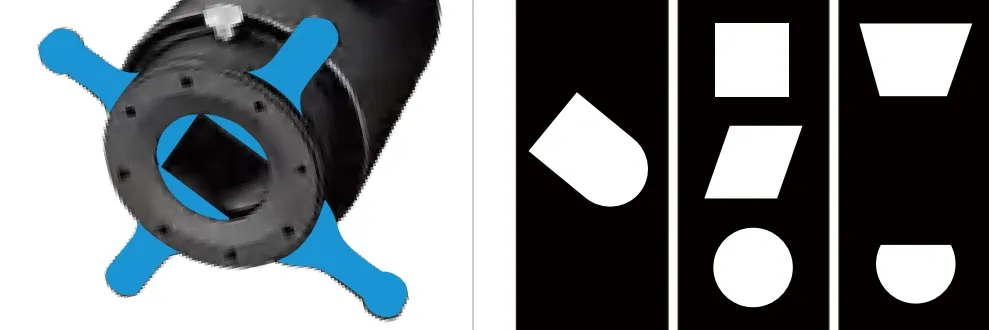

Optical diaphragm made of high-precision special material with no blurring or freezing. Manual insertion and removal of light cutting device allows free shape changes of the spot.
Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural
Multi-Layer Dry Damping Design
Focusing device requires no lubricating oil with silky feel. Stable, reliable, wear-resistant, high temperature resistant, and maintains performance after extended use. Rotating device changes spot sharpness.

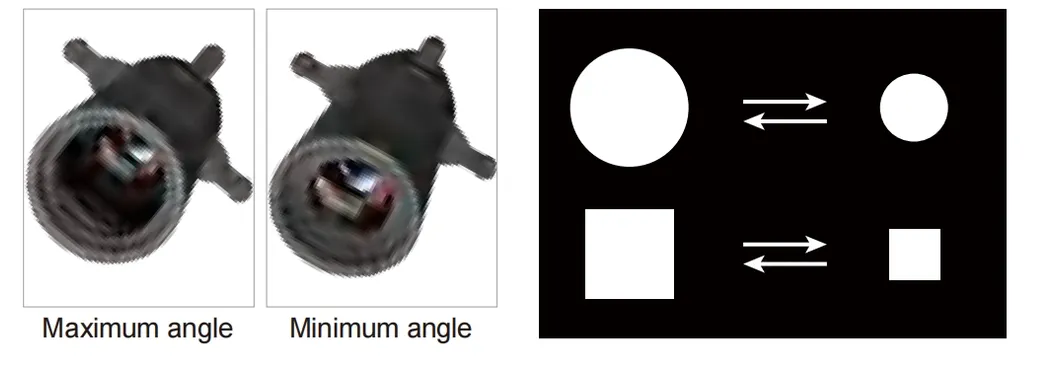

Linear Zoom Mechanism
Short stroke, considerable focal length, high short-focus and long-focus recognition visible to naked eye. Enhanced linear zoom for convenient spot size adjustment.
Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural
Application Scenarios
Luxury Retail: 20° narrow beam highlights jewelry/watches, CPL filters eliminate glare, 2700K for ambiance

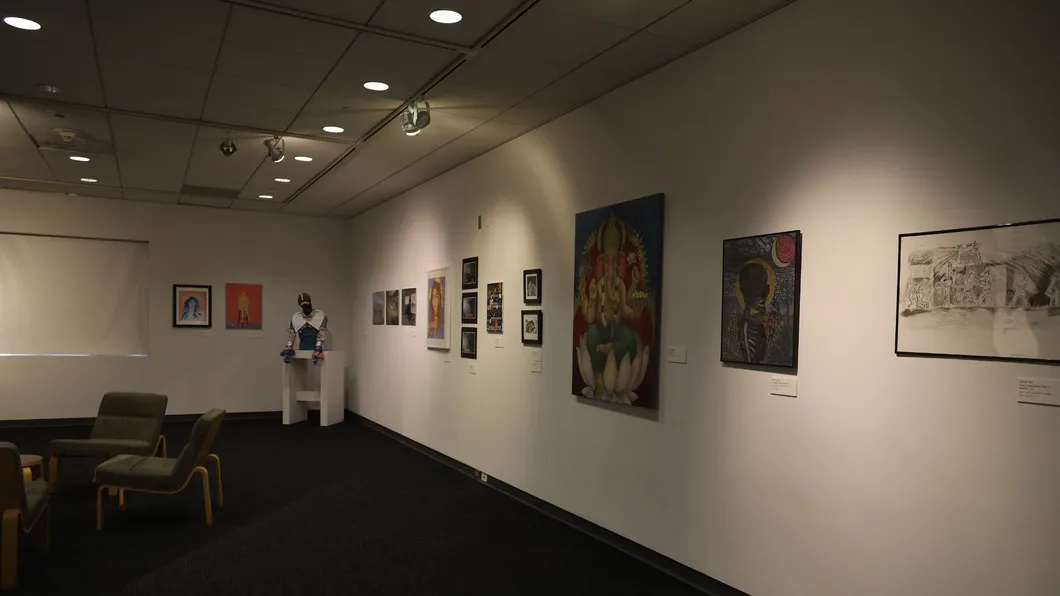

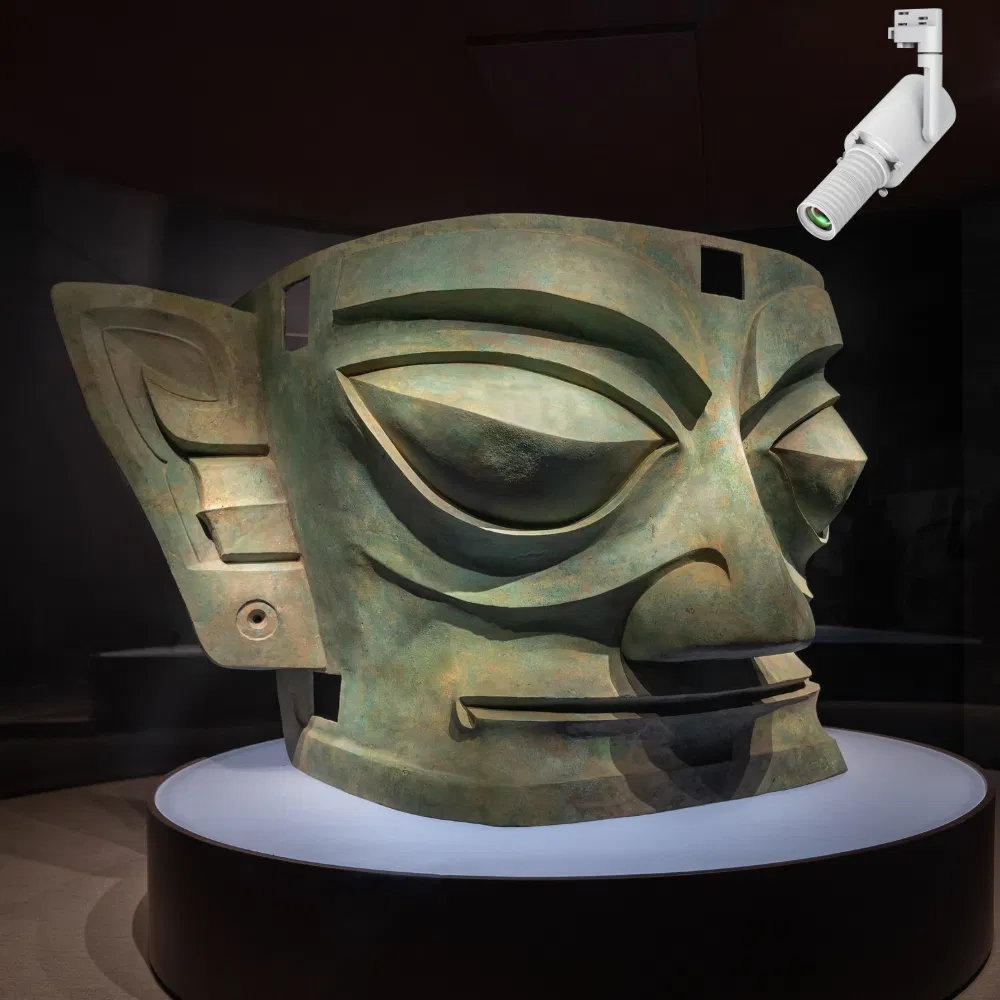

Museums/Galleries: UV filters protect paintings/manuscripts, 36° wide flood for display cases, CRI≥97
Fine Dining: Shapeable spots (circle/square) for brand logos/food close-ups, ND filters adjust softness
Stages/Theaters: Instant change 15° spot to 36° wash, silent operation during performances
Medical Labs: Flicker-free + UV-free for anatomy tables/precision instruments
Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural

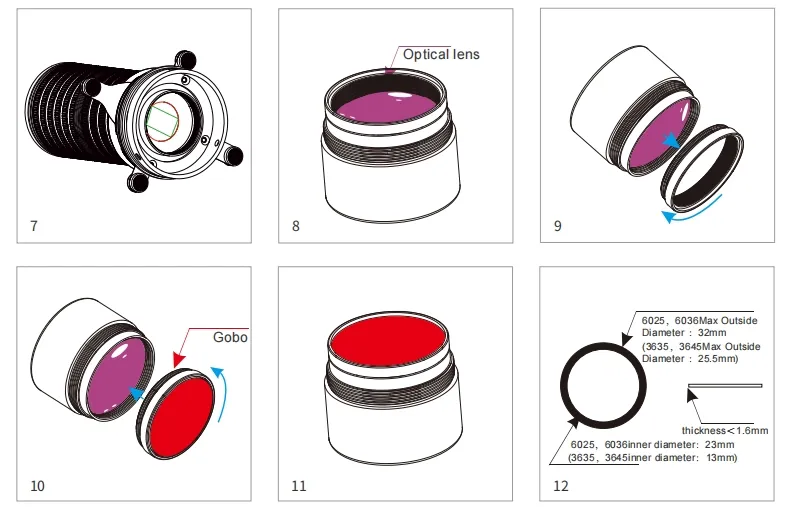

Installation & Operation Guide

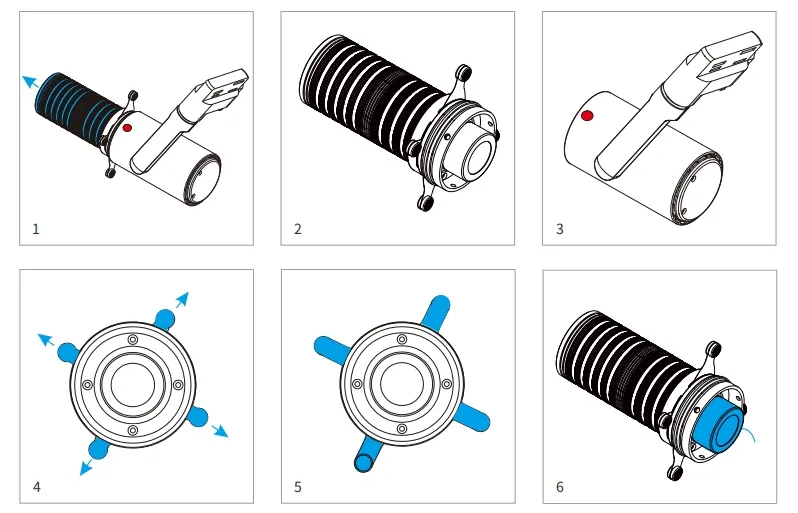

1. Loosen and pull out the hand screw (red part), then pull out the main lens part (blue area) and separate from lamp body
Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural
2. Stretch the four diaphragm sheets on the optical lens outward to maximum extent
Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural

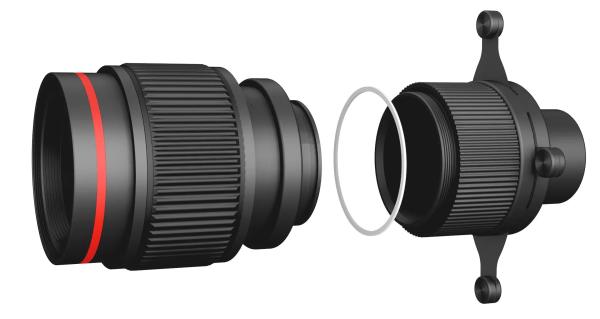

3. Unscrew the blue part of optical components at bottom of lens and separate, then separate lens face ring
4. Install gobo device delivered by manufacturer, then reassemble optical lens and lamp body
5. Design and make various image gobos using manufacturer specifications
Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural

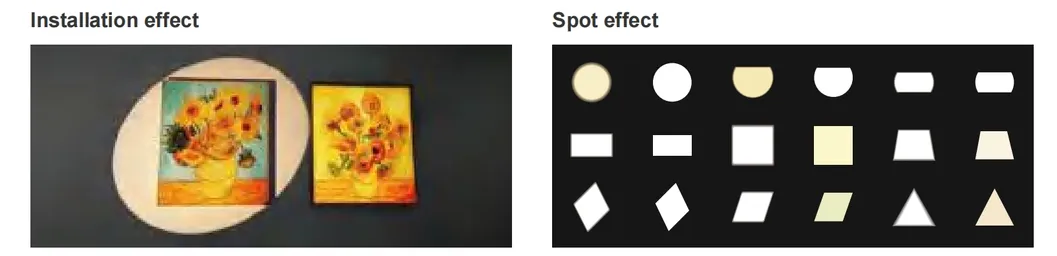

Adjust aperture to appropriate size, face center of irradiated object, and adjust sharpness to reasonable degree
Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural
Pull four diaphragm sheets outward to maximum, then push one by one vertically inward to ensure cut square spot is smaller than object to be illuminated. Adjust aperture sharpness until satisfactory.
Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural

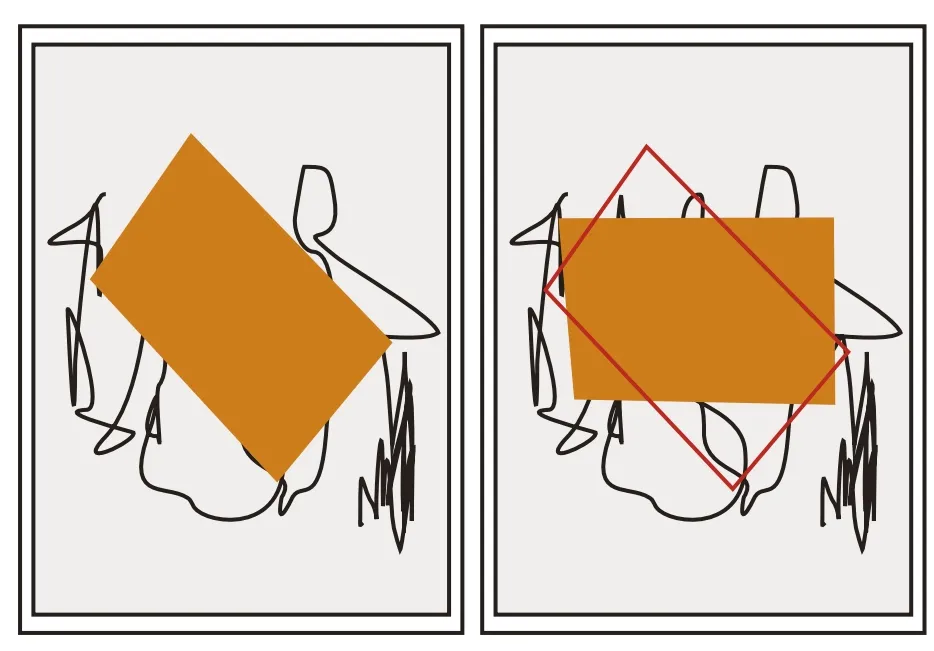

If spot shape doesn't match object, loosen hand screw at red mark, rotate blue lens part to adjust spot edge parallel to object edge, then tighten hand screw. LOGO projection direction can also be adjusted using this method.
Stretch diaphragm sheets outward one by one until spot size substantially matches object. Repeat operations as needed to achieve desired spot effect.
Manufacturer Information
Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural Factory Price Professional-Grade DIP Color Dimmable Smart Control Compatibility Shapeable Projection Track Light for Theaters and Cultural
Frequently Asked Questions
Are you a factory or a trading company? Where is your company located?
We are 100% a factory, not a trading company. Our company is located in Dongguan, between Shenzhen and Hongkong Guangzhou, China.
How about the lead time of LED Linear High Bay Light?
3-7 days for sample order, 15-25 days for mass production order based on order quantities.
Can I have a sample order for LED Tri-proof Light?
Yes, sample order to test and check quality is welcomed. Mixed samples are acceptable.
How do you ship the finished production?
By SEA, AIR or Express (DHL, UPS, Fedex, TNT, etc) are optional.
