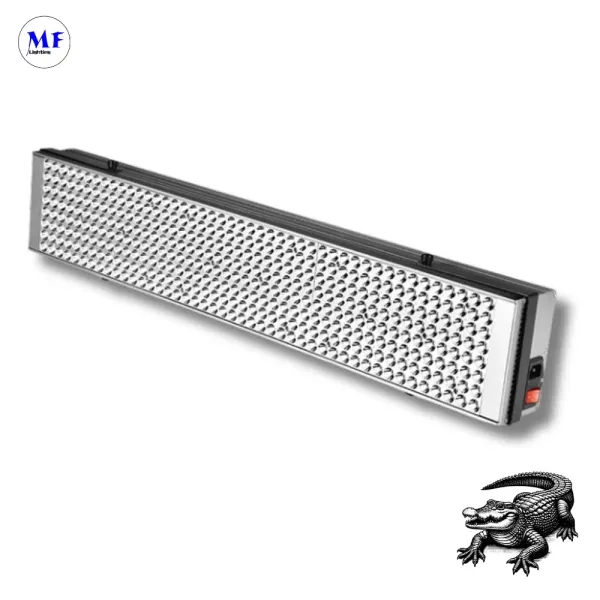

Factory Price 815mm Max-Power 300W LEDs Turbo Array Mirror Reflector UV LED Curing Lamp for 1-3s Instant Cure on Building Panels & Industrial Coatings

Specifications

Certification :

CE, CB

MOQ :

Price :

Model Number :

MF-GHUV-300W

Material :

PC+Alu.

Output Power :

300W

Light Source :

3535-360PCS

Power Supply :

AC85-265V

Temperature Range :

-10-+45°C

IP Rating :

IP43

LED Lifetime :

50,000 Work Hours

Dimensions :

815*148*86mm

Curing Time :

1-3s

Wavelength Options :

365NM/395NM/405NM

Cooling System :

Dual-Fan

Voltage Compatibility :

AC100~265V

Housing Material :

Die-cast aluminum

Mounting Options :

Adjustable stand/handheld

Description

Factory price 815mm Max-Power 300W LEDs Turbo Array Mirror Reflector UV LED Curing Lamp for 1-3s Instant Cure on Building Panels & Industrial Coatings

Catalogue number	MF-GHUV-300W
Duration Time	N/A
Version	Manual
Colour	Grey/White
Output	LED 300w
Light Source	3535-360PCS
Active power	300W
Power supply	85-265 V AC 50/60Hz
Dimming mode	NO
Temperature range	-10-+45°C
Material	PC+Alu.
IP	IP43
Housing Warranty	36 Months
LED lifetime	50, 000 work hours

1.Europe and the United States hot models

2.CB CE certification

3.Patented products

4.can be customized

5.Whole picture printing laser engraving

6.Hanging/wall hanging/ceilinghanging/side hanging

7.Customized patterns

8.395NM/365NM/405NM

9.Customized LOGO for small orders

1.Ultra-Fast Curing: 3535-chip LEDs achieve curing in 1-3 seconds, boosting production efficiency.

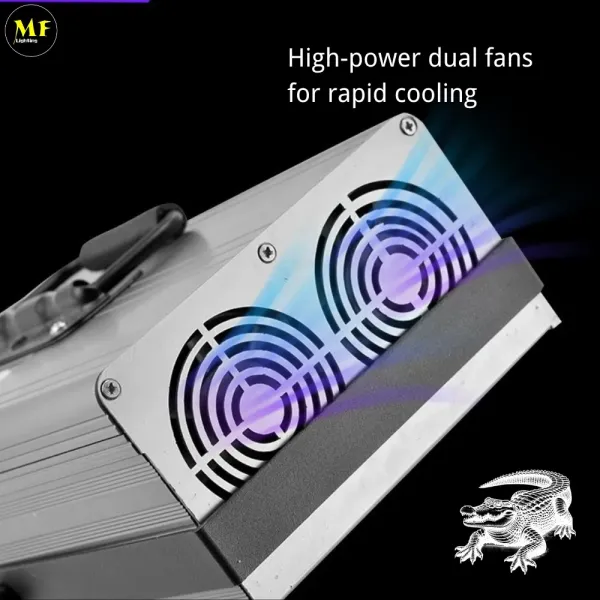

2.Dual-Fan Cooling: High-speed fans with aluminum housing ensure optimal heat dissipation.

3.Multi-Wavelength: 365NM (electronics), 395NM (acrylic bonding), 405NM (3D printing resin).

4.Industrial Durability: Die-cast aluminum body with anti-drop and anti-shock properties.

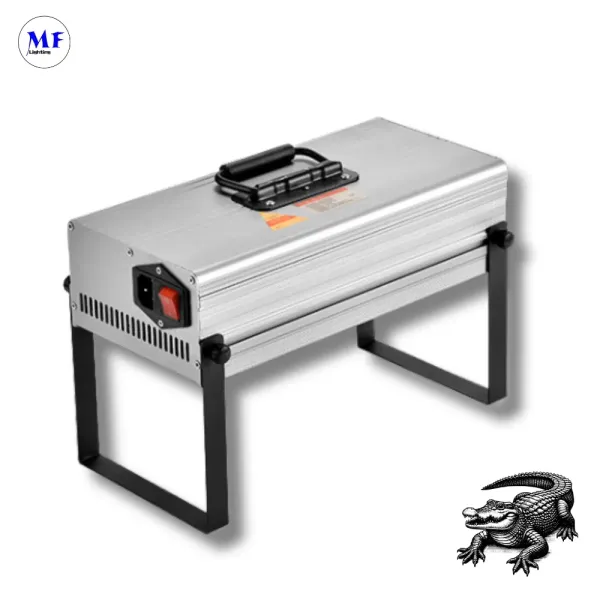

5.Flexible Mounting: Adjustable stand and handheld design for versatile applications.

6.Global Voltage: AC100~265V input compatible with international power standards.

Advantages

1.Energy Saving: 60W~300W options with 50% lower energy consumption than traditional lamps.

2.Long Lifespan: 50,000-hour LED lifespan with 36-month housing warranty.

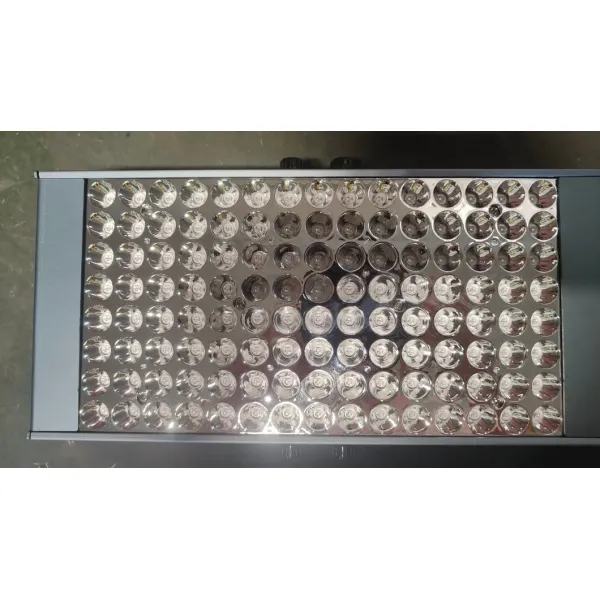

3.Precision Wavelength: Mirror reflector concentrates UV energy for consistent output.

4.Plug-and-Play: Instant full-power operation, no warm-up time.

5.Customization: Laser engraving and LOGO printing available for branding.

1.Electronics Manufacturing: Curing UV glue for smartphone screens and camera modules.
2.Automotive Industry: Fast-curing navigation screen coatings and interior UV paints.
Factory Price 815mm Max-Power 300W LEDs Turbo Array Mirror Reflector UV LED Curing Lamp for 1-3s Instant Cure on Building Panels & Industrial Coatings
3.3D Printing: 405NM wavelength ensures smooth resin curing for rapid prototyping.
4.Construction: UV coatings for wall panels and tiles enhance durability and aesthetics.
Factory Price 815mm Max-Power 300W LEDs Turbo Array Mirror Reflector UV LED Curing Lamp for 1-3s Instant Cure on Building Panels & Industrial Coatings
5.Medical Devices: Sterile bonding and fluorescent agent detection.
6.Printing & Packaging: Instant drying of UV inks for premium packaging.
Factory Price 815mm Max-Power 300W LEDs Turbo Array Mirror Reflector UV LED Curing Lamp for 1-3s Instant Cure on Building Panels & Industrial Coatings

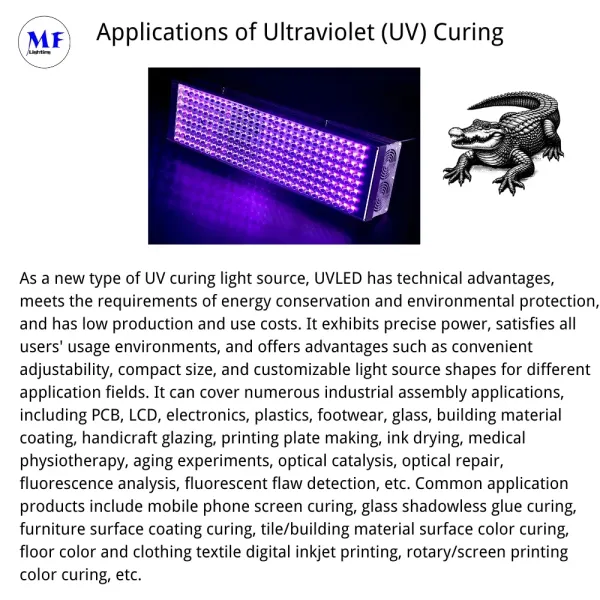

As a new type of UV curing light source, UVLED has technical advantagesmeets the requirements of energy conservation and environmental protectioand has low production and use costs. It exhibits precise power, satisfies allusers' usage environments, and offers advantages such as convenientadjustability, compact size, and customizable light source shapes for differentapplication fields, It can cover numerous industrial assembly applications.including PCB, LCD, electronics, plastics, footwear, glass, building materialcoating, handicraft glazing, printing plate making, ink drying, medicalphysiotherapy,aging experiments, optical catalysis, optical repair,fluorescence analysis, fluorescent flaw detection, etc. Common applicationproducts include mobile phone screen curing, glass shadowless glue curingfurniture surface coating curing, tile/building material surface color curing,floor color and clothing textile digital inkjet printing, rotary/screen printingcolor curing, etc.

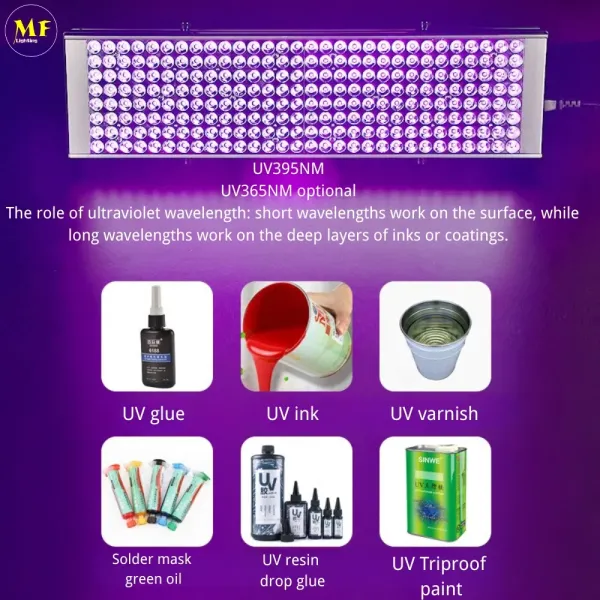

The role of ultraviolet wavelength: short wavelengths work on the surface, whilelong wavelengths work on the deep layers of inks or coatings.

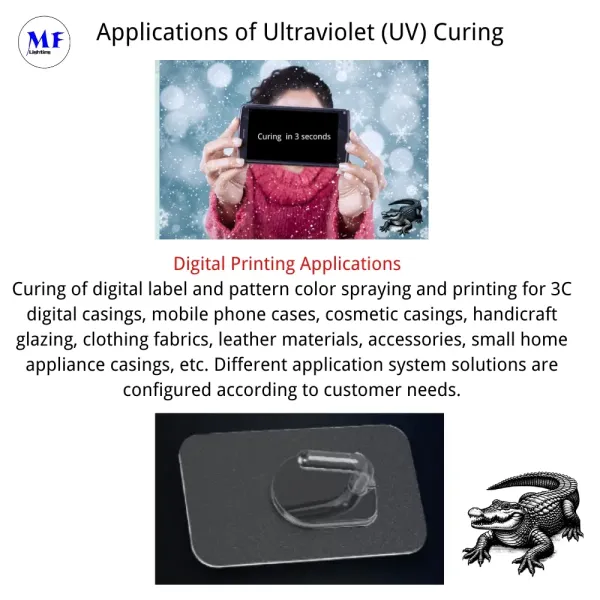

Curing of digital label and pattern color spraying and printing for 3Cdigital casings, mobile phone cases, cosmetic casings, handicraftglazing, clothing fabrics, leather materials, accessories, small homeappliance casings, etc, Different application system solutions areconfigured according to customer needs.

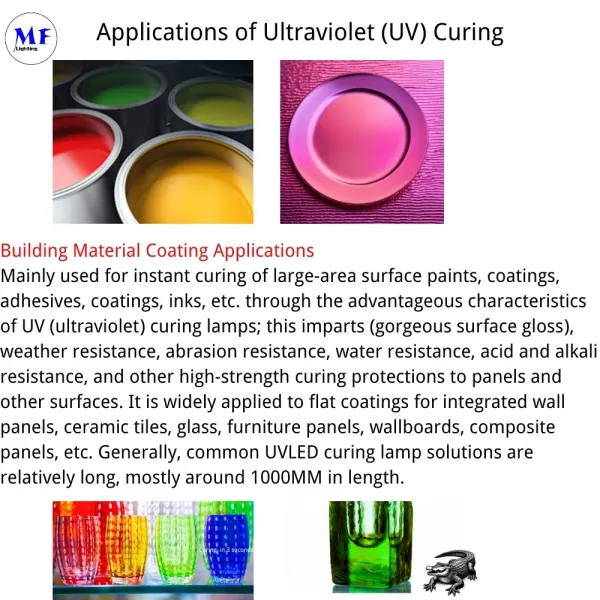

Building Material Coating Applications
Mainly used for instant curing of large-area surface paints, coatings,adhesives, coatings, inks, etc. through the advantageous characteristicsof UV (ultraviolet) curing lamps; this imparts (gorgeous surface gloss),weather resistance, abrasion resistance, water resistance, acid and alkaliresistance, and other high-strength curing protections to panels andother surfaces. It is widely applied to flat coatings for integrated wallpanels, ceramic tiles, glass, furniture panels, wallboards, compositepanels, etc. Generally, common UVLED curing lamp solutions arerelatively long, mostly around 1000MM in length.

Factory Price 815mm Max-Power 300W LEDs Turbo Array Mirror Reflector UV LED Curing Lamp for 1-3s Instant Cure on Building Panels & Industrial Coatings

Q1: Are you a factory or a trading company? Where is your company located?
A1: We are 100% a factory, not a trading company. Our company is located in Dongguan, between Shenzhen and Hongkong Guangzhou, China.

Q2. How about the lead time of LED Linear High Bay Light ?
A2: 3-7 days for sample order, 15-25 days for mass production order base on order quantities.

Q3. Can I have a sample order for LED Tri-proof Light ?
A3: Yes, sample order to test and check quality is welcomed. Mixed samples are acceptable.

Q4: How do you ship the finished production ?
A4:By SEA, AIR or Express(DHL,UPS,Fedex,TNT,etc) are optional.
