Specifications
Model Number :
MF-HGS22-3*10W
Power :
3*7W/10W/12W/15W
IP Grade :
IP20
Certification :
CE/ROHS/SAA
CCT :
2700K/3000K /3500K/ 4000K / 5000K /6000K, 2700-6500K Tunable
MOQ :
1PC
Delivery Time :
7 Working days
LED Driver :
DONE/Aohua/Lifud/Eaglerise Brand for different dim version
Luminous Efficiency :
100LM/W
CCT Adjustable :
2700-6000K Tunable as optional if need
Price :
USD7.0~USD18.0/PC
PF :
10-20W≥0.50, 25W≥0.95
Materials :
Die-casting Aluminum
Payment Terms :
T/T
Housing Colour :
White
Beam Angle :
15°/24°/36°/50° optional
Dimmable :
Non-Dim/Triac/0-10V/Dali-2 dimmable as options
Operating Temperature :
-20℃~50℃
Place of Origin :
China
LED Chip :
OS.RAM/Bridge.lux
Supply Ability :
10, 000PCS/Months
Reflector Color :
Matte White/Matte Silver/Matte Black/bright Sliver/Gun Black
Lifespan :
≥50000hrs
Brand Name :
MF
Input voltage :
100-277Vac or 200-240Vac, 50hz/60hz, DC24V available
Warranty :
3 years
Packaging Details :
Carton
CRI :
Ra80+/Ra90+
Description

3*10W Anti-glare LED Spot Downlight CRI90 100lm/W Triac /0-10V/Dali-2 Dimmable Beam angle 15°/24°/36°50° Optional Recessed Spot LED Down light for Commercial Spaces

3*10W Anti-glare LED Downlight CRI90 100lm/W Triac /0-10V/Dali-2 Dimmable Beam angle 15°/24°/36°50° Optional Recessed Spot LED Down light for Commercial Spaces

3*10W Anti-glare LED Downlight CRI90 100lm/W Triac /0-10V/Dali-2 Dimmable Beam angle 15°/24°/36°50° Optional Recessed Spot LED Down light for Commercial Spaces 3*10W Anti-glare LED Downlight CRI90 100lm/W Triac /0-10V/Dali-2 Dimmable Beam angle 15°/24°/36°50° Optional Recessed Spot LED Down light for Commercial Spaces

Features:

1.IP20/IP44 Rating Design: Suitable for indoor application only.
2.Long Lifespan: Integrated die-cast aluminum heat sink ensures lifespan of 50,000 hours or more.

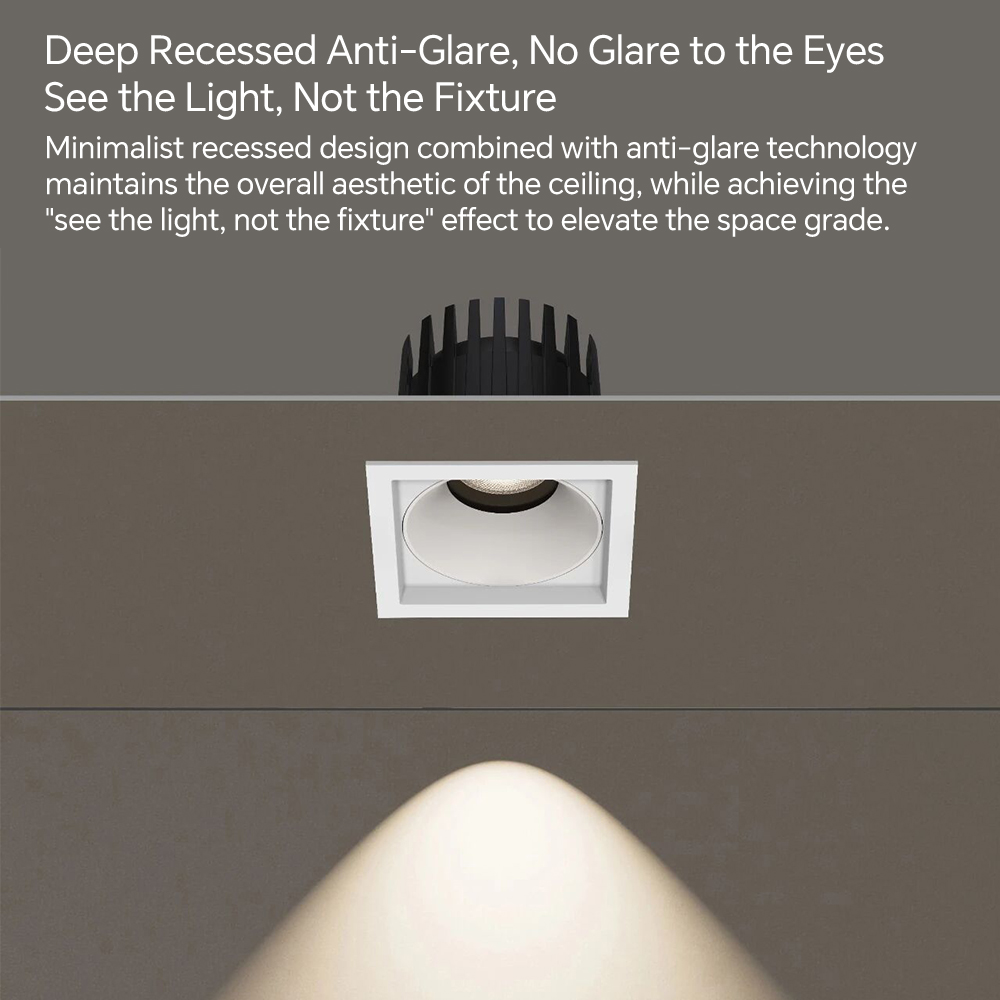

3.Anti-Glare Design: Deep recessed structure with UGR<19 provides eye-friendly lighting for bedrooms and offices.
4.Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V, Tuya zigbee and DALI dimming with smart control via APP.
5.Wide Color Temperature Range: Available in 2700K to 6000K, with tunable CCT options for customized lighting scenes.
6.High Luminous Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+) for accurate color rendering.
7.Multiple Housing Colors: Available in Matte White/Matte Silver/Matte Black/bright Sliver/Gun Black
8.Multiple Heads Available.

3*10W Anti-glare LED Downlight CRI90 100lm/W Triac /0-10V/Dali-2 Dimmable Beam angle 15°/24°/36°50° Optional Recessed Spot LED Down light for Commercial Spaces

Model

MF-HGS22-7W/10W/12W/15W;

MF-HGS22-2*7W/10W/12W/15W;

MF-HGS22-3*7W/10W/12W/15W
Input voltage 100-277Vac or 200-240Vac, 50hz/60hz, DC24V available

Power(watt)

7W/10W/12W/15W

2*7W/10W/12W/15W

3*7W/10W/12W/15W
Color temperature 2700K/3000K /3500K/ 4000K / 5000K /6000K, 2700-6500K Tunable
LED Chip O.SRAM/Bridge.lux
LED Driver DONE/Aohua/Lifud/Eaglerise Brand for different dim version
PF 10-20W≥0.50, 25W≥0.95
Housing Colour White
Reflector color

Matte White/Matte Silver/Matte Black/bright Sliver/Gun

Black
Luminous Flux (lm) 100LM/W
CRI(Ra) Ra80+/Ra90+
Lifespan ≥50000hrs
Beam Angle 15°/24°/36°/50°
Material Die-casting Aluminum
Operating Temperature -200C ~500C
Dimmable Non-Dim/Triac/0-10V/Dali-2 dimmable as options
CCT Adjustable 2700-6000K Tunable as optional if need
IP IP20/IP44
UGR <19
Certificate CE/ RoHS(Whole Lamp); CE/ROHS/CB/SAA(Driver)
Warranty Period 3 years

3*10W Anti-glare LED Downlight CRI90 100lm/W Triac /0-10V/Dali-2 Dimmable Beam angle 15°/24°/36°50° Optional Recessed Spot LED Down light for Commercial Spaces

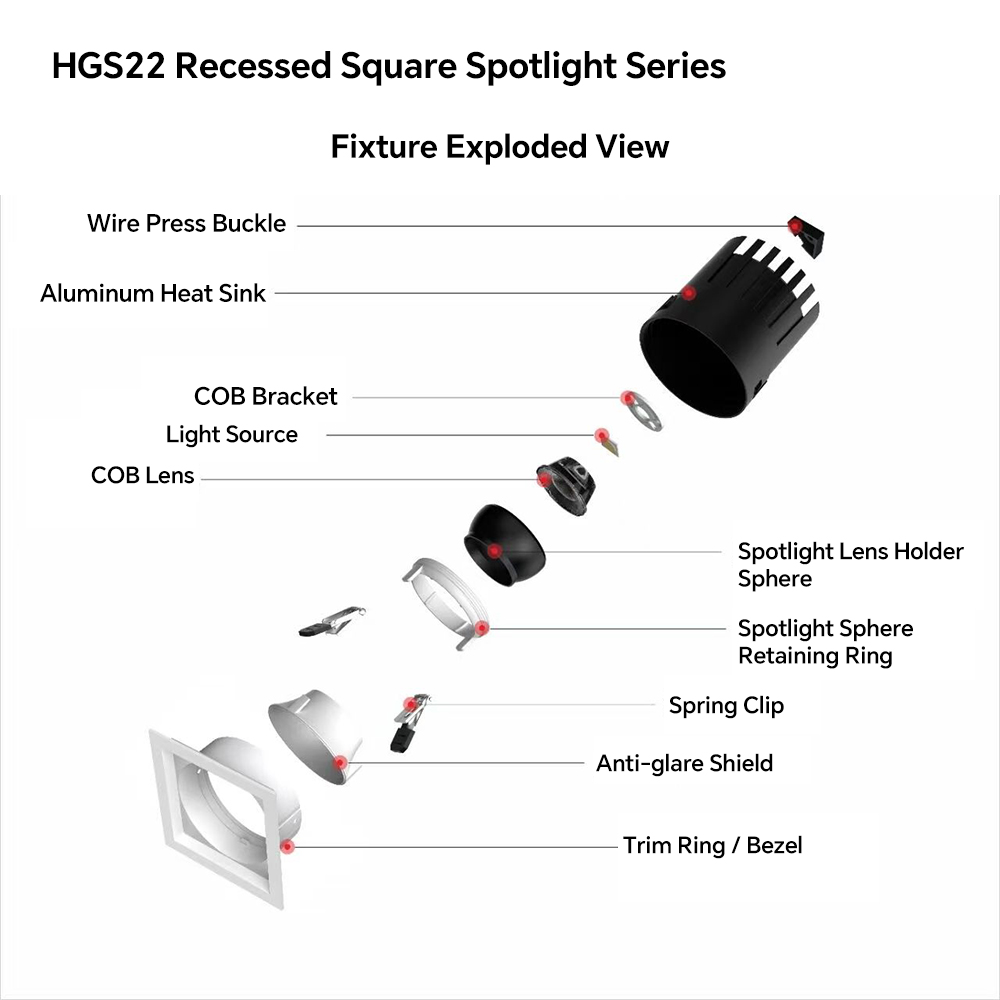

HGS22 Recessed Square Anti‑Glare Spotlight

Deep anti‑glare square recessed spotlight with detachable lamp head, available in single‑head, double‑head and triple‑head configurations to fit different space lighting requirements.

3*10W Anti-glare LED Downlight CRI90 100lm/W Triac /0-10V/Dali-2 Dimmable Beam angle 15°/24°/36°50° Optional Recessed Spot LED Down light for Commercial Spaces 3*10W Anti-glare LED Downlight CRI90 100lm/W Triac /0-10V/Dali-2 Dimmable Beam angle 15°/24°/36°50° Optional Recessed Spot LED Down light for Commercial Spaces

Flexible Beam Angle

Multiple beam angles optional: 15°/24°/36°/50°, delivering precise light output for accent lighting.

Excellent Heat Dissipation

Full‑aluminum housing with multi‑layer Three-Dimensional heat dissipation fins. Expanded heat dissipation area efficiently lowers operating temperature, extending fixture service life.

3*10W Anti-glare LED Downlight CRI90 100lm/W Triac /0-10V/Dali-2 Dimmable Beam angle 15°/24°/36°50° Optional Recessed Spot LED Down light for Commercial Spaces 3*10W Anti-glare LED Downlight CRI90 100lm/W Triac /0-10V/Dali-2 Dimmable Beam angle 15°/24°/36°50° Optional Recessed Spot LED Down light for Commercial Spaces

Multiple Color Temperature Selection

3000K warm light / 4000K neutral light / 6000K cool white light, freely build various indoor atmosphere scenes.

Modular detachable lamp‑head design, easy for installation and maintenance. Ideal for offices, retail stores, hotels, commercial projects and high‑end residential spaces.

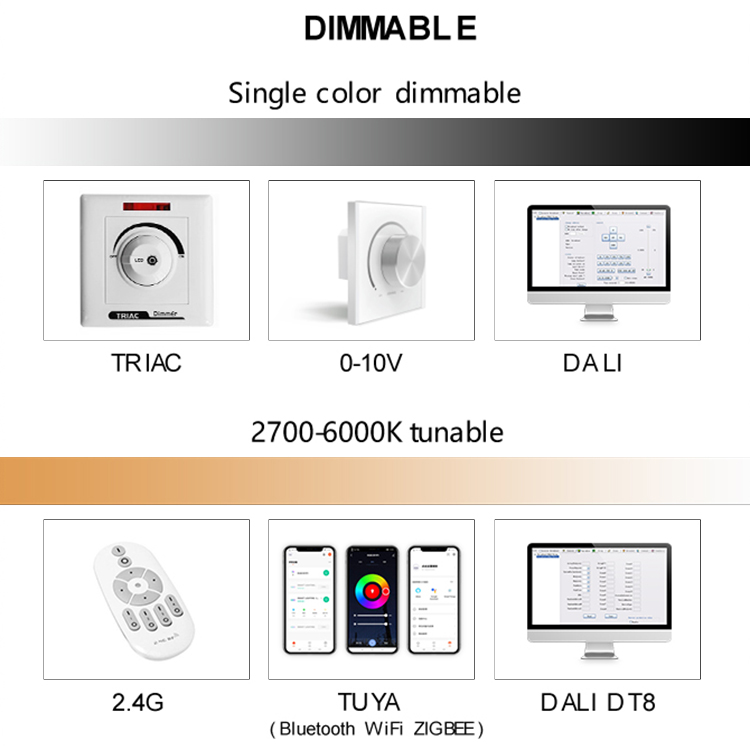

Rich Dimming & Smart Control Options

Single‑color dimming: TRIAC, 0‑10V, DALI

Tunable white 2700‑6000K: 2.4G remote, Tuya(Bluetooth/Wi‑Fi/Zigbee), DALI DT8 Multiple control solutions meet commercial smart lighting projects.

3*10W Anti-glare LED Downlight CRI90 100lm/W Triac /0-10V/Dali-2 Dimmable Beam angle 15°/24°/36°50° Optional Recessed Spot LED Down light for Commercial Spaces 3*10W Anti-glare LED Downlight CRI90 100lm/W Triac /0-10V/Dali-2 Dimmable Beam angle 15°/24°/36°50° Optional Recessed Spot LED Down light for Commercial Spaces

3*10W Anti-glare LED Downlight CRI90 100lm/W Triac /0-10V/Dali-2 Dimmable Beam angle 15°/24°/36°50° Optional Recessed Spot LED Down light for Commercial Spaces

3*10W Anti-glare LED Downlight CRI90 100lm/W Triac /0-10V/Dali-2 Dimmable Beam angle 15°/24°/36°50° Optional Recessed Spot LED Down light for Commercial Spaces​

Model Power Cut out(MM) Dimension(MM) Beam Angle
MF-HGS22(One head) 7W/10W/12W 75*75 88*88*79 15°/24°/36°/50°
MF-HGS22(One head) 15W 75*75 88*88*92 15°/24°/36°/50°
MF-HGS22(Two head) 2*7W/2*10W/2*12W 155*75 168*88*80 15°/24°/36°/50°
MF-HGS22(Two head) 2*15W 155*75 168*88*93 15°/24°/36°/50°
MF-HGS22(Three head) 3*7W/3*10W/3*12W 235*75 247*88*80 15°/24°/36°/50°
MF-HGS22(Three head) 3*15W 235*75 247*88*93 15°/24°/36°/50°

​3*10W Anti-glare LED Downlight CRI90 100lm/W Triac /0-10V/Dali-2 Dimmable Beam angle 15°/24°/36°50° Optional Recessed Spot LED Down light for Commercial Spaces

3*10W Anti-glare LED Downlight CRI90 100lm/W Triac /0-10V/Dali-2 Dimmable Beam angle 15°/24°/36°50° Optional Recessed Spot LED Down light for Commercial Spaces 3*10W Anti-glare LED Downlight CRI90 100lm/W Triac /0-10V/Dali-2 Dimmable Beam angle 15°/24°/36°50° Optional Recessed Spot LED Down light for Commercial Spaces

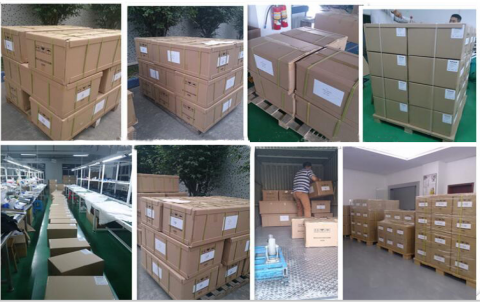

Head Power Carton Size(cm) G.W(KG) PCS/CTN
One head 7W/10W/12W/15W 52*21*49.5CM 13.0KG 50PCS
Double heads 2*7W/10W/12W/15W 44.5*34*40.5CM 15.0KG 30PCS
Three Heads 3*7W/10W/12W/15W 44.5*34*57CM 20.0KG 30PCS

3*10W Anti-glare LED Downlight CRI90 100lm/W Triac /0-10V/Dali-2 Dimmable Beam angle 15°/24°/36°50° Optional Recessed Spot LED Down light for Commercial Spaces

Industrial Settings: In industrial environments where dust, moisture, or water exposure can be an issue, waterproof lighting like these downlights can be beneficial.
Retail or Commercial Spaces: These downlights can also be used in retail stores, restaurants, or other commercial spaces where water resistance and durability are needed.

3*10W Anti-glare LED Downlight CRI90 100lm/W Triac /0-10V/Dali-2 Dimmable Beam angle 15°/24°/36°50° Optional Recessed Spot LED Down light for Commercial Spaces

3*10W Anti-glare LED Downlight CRI90 100lm/W Triac /0-10V/Dali-2 Dimmable Beam angle 15°/24°/36°50° Optional Recessed Spot LED Down light for Commercial Spaces

Ming Feng Lighting Co., Ltd. is a leading LED lighting manufacturer with its own factory. Our company specializes in the design, production, and distribution of high-quality LED lighting products. With years of experience in the industry, we have established a reputation for excellence and innovation in LED lighting technology. Our team of skilled professionals is dedicated to providing customers with the best LED lighting products and services. At Ming Feng Lighting Co., Ltd., we pride ourselves on our commitment to quality and customer satisfaction. Whether you are looking for residential or commercial LED lighting solutions, we have the expertise and resources to meet your needs.

3*10W Anti-glare LED Downlight CRI90 100lm/W Triac /0-10V/Dali-2 Dimmable Beam angle 15°/24°/36°50° Optional Recessed Spot LED Down light for Commercial Spaces

Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.

Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.

Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.

Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order,15 working days for bulk order, but sometimes depend on the order quantity.
