Explosion Proof Flood Light ATEX IECEx Zone 1 & 2 Ex db eb LED Oil Refinery, Chemical Industrial, Mining, 50W-400W, IP66 IK10, 5-Year Warranty for Hazardous Area
Explosion Proof Flood Light ATEX IECEx Zone 1 & 2 Ex db eb LED Oil Refinery, Chemical Industrial, Mining, 50W-400W, IP66 IK10, 5-Year Warranty for Hazardous Area
Explosion Proof Flood Light ATEX IECEx Zone 1 & 2 Ex db eb LED Oil Refinery, Chemical Industrial, Mining, 50W-400W, IP66 IK10, 5-Year Warranty for Hazardous Area
Explosion Proof Flood Light ATEX IECEx Zone 1 & 2 Ex db eb LED Oil Refinery, Chemical Industrial, Mining, 50W-400W, IP66 IK10, 5-Year Warranty for Hazardous Area
Explosion Proof Flood Light ATEX IECEx Zone 1 & 2 Ex db eb LED Oil Refinery, Chemical Industrial, Mining, 50W-400W, IP66 IK10, 5-Year Warranty for Hazardous Area
Explosion Proof Flood Light ATEX IECEx Zone 1 & 2 Ex db eb LED Oil Refinery, Chemical Industrial, Mining, 50W-400W, IP66 IK10, 5-Year Warranty for Hazardous Area
Specifications
Payment Terms :
T/T
Beam Angle :
30°/45°/60°/90°/120°
Model Number :
MF-EX02-A-200W
LED Type :
SMD 2835
MOQ :
1
Delivery Time :
7-9 days
Volts :
AC100-277V/120-347V/277-480V,50-60Hz
IP Rating :
IP 66
Price :
134-330USD
CRI :
Ra>80(70,90 Optional)
Certification :
CE, ROHS
CCT :
3000K,4000K,5000K,5700K,6500K
Supply Ability :
389*268*191MM
Hours Rated :
60,000 hours
Brand Name :
MF
Watts :
50W 75W 100W 150W 200W 240W 300W 400W
Packaging Details :
389*268*191MM
IK Rating :
IK 08
Place of Origin :
China
Lumen Efficiency :
140LM/W (±5%)
Description

Explosion Proof Flood Light ATEX IECEx Zone 1 & 2 Ex db eb LED Oil Refinery, Chemical Industrial, Mining, 50W-400W, IP66 IK10, 5-Year Warranty for Hazardous Area

Explosion Proof Flood Light ATEX IECEx Zone 1 & 2 Ex db eb LED Oil Refinery, Chemical Industrial, Mining, 50W-400W, IP66 IK10, 5-Year Warranty for Hazardous Area

Explosion Proof Flood Light ATEX IECEx Zone 1 & 2 Ex db eb LED Oil Refinery, Chemical Industrial, Mining, 50W-400W, IP66 IK10, 5-Year Warranty for Hazardous Area

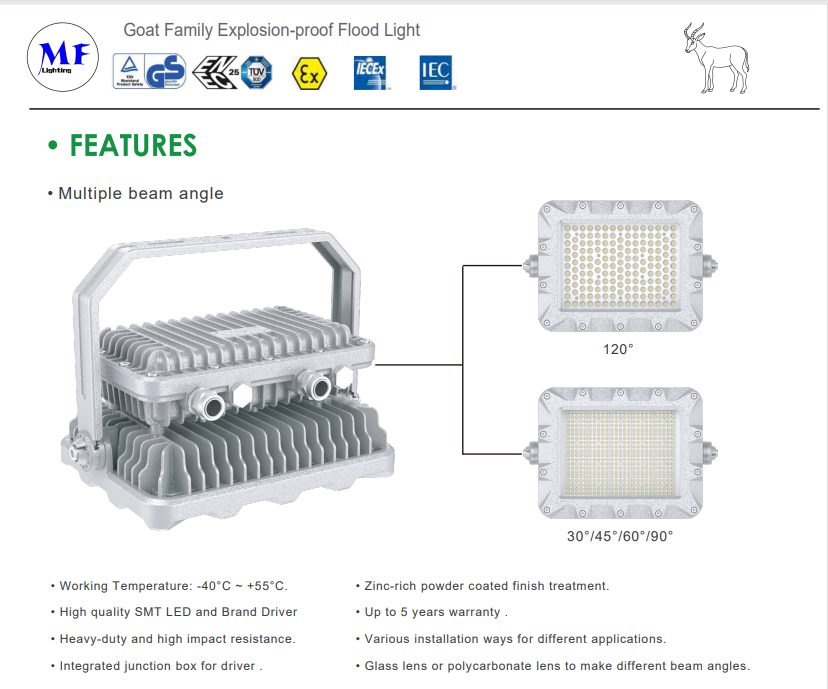

feature:1.Multiple beam angle 2.Working Temperature: -40°C ~ +55°C

3.High quality SMT LED and Brand Driver 4.Heavy-duty and high impact resistance

5.Integrated junction box for driver 6.Zinc-rich powder coated finish treatment

7.Up to 5 years warranty 8.Glass lens or polycarbonate lens

Explosion Proof Flood Light ATEX IECEx Zone 1 & 2 Ex db eb LED Oil Refinery, Chemical Industrial, Mining, 50W-400W, IP66 IK10, 5-Year Warranty for Hazardous Area

Power Housing Length (mm) Housing Width (mm) Housing Height (mm) Mounting Hole Distance (mm) Cable Entry / Shaft Diameter (mm)
50W – 150W 266 170 110 14 13
200W – 240W 330 170 110 15 13
300W – 400W 462 423 191 295 325

Explosion Proof Flood Light ATEX IECEx Zone 1 & 2 Ex db eb LED Oil Refinery, Chemical Industrial, Mining, 50W-400W, IP66 IK10, 5-Year Warranty for Hazardous Area

Beam Angle Typical Application
30° Long-range precision lighting (e.g., towers, chimneys, distant projection)
45° Medium-to-long range accent lighting (e.g., equipment zones, focused illumination)
60° Medium-range general lighting (standard industrial areas)
90° Medium-wide flood lighting (e.g., factory floors, storage yards)
120° Wide-area flood lighting (e.g., open spaces, large coverage areas)

Explosion Proof Flood Light ATEX IECEx Zone 1 & 2 Ex db eb LED Oil Refinery, Chemical Industrial, Mining, 50W-400W, IP66 IK10, 5-Year Warranty for Hazardous Area

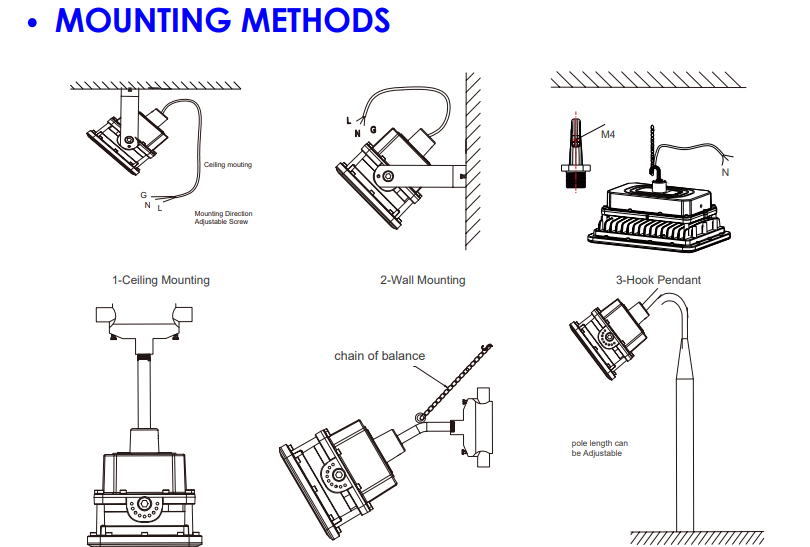

Mounting Methods

1. Ceiling Mounting

Mounting direction adjustable via screw.

Wiring terminals: N (Neutral), L (Live), G (Ground).

Fixing screw size: M4.

2. Wall Mounting

Equipped with a balance chain for stable suspension.

Pole length is adjustable to suit different installation heights.

Explosion Proof Flood Light ATEX IECEx Zone 1 & 2 Ex db eb LED Oil Refinery, Chemical Industrial, Mining, 50W-400W, IP66 IK10, 5-Year Warranty for Hazardous Area

1. Oil and gas industry – petroleum production, refining, loading, transportation, storage, retail, LNG facilities, and mining operations

2. Chemical industry – paint facilities, chemical production, and storage

3. Ocean, marine and aerospace field – offshore platform facilities, vessel operations, and aerospace clean rooms

4.Metal treatment – steel and aluminum plants, pumping stations, and metal smelting

5.Food and alcohol industry – flour milling, fine particle storage, food processing, and alcohol production

6.Other harsh environments – high humidity, high dust, high temperature, and vapor-laden areas

Explosion Proof Flood Light ATEX IECEx Zone 1 & 2 Ex db eb LED Oil Refinery, Chemical Industrial, Mining, 50W-400W, IP66 IK10, 5-Year Warranty for Hazardous Area

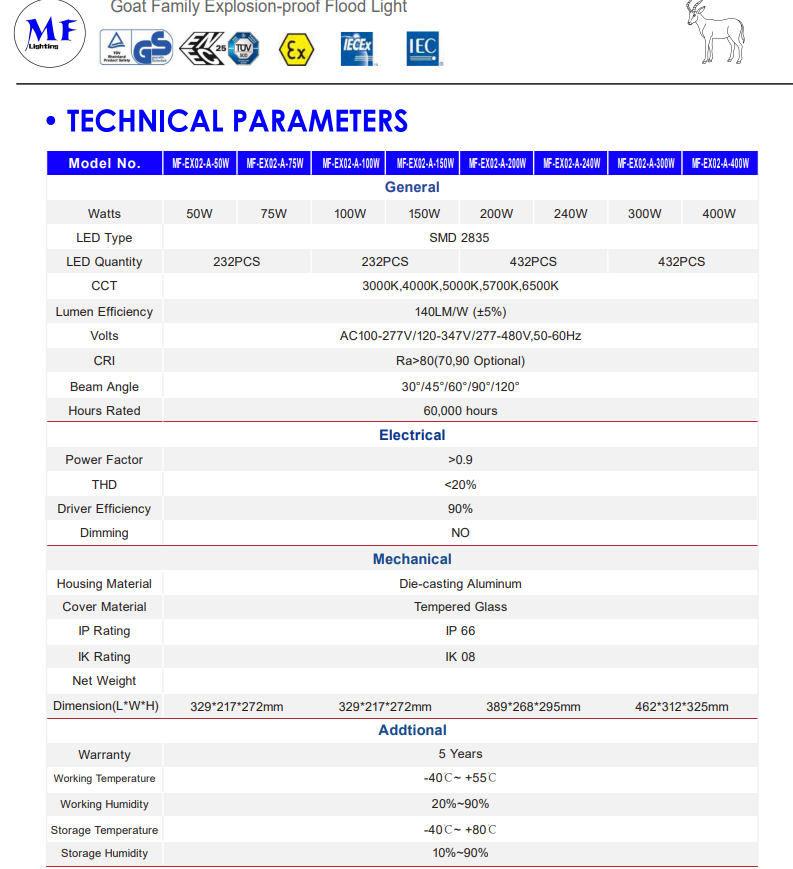

Parameter Specification
LED Type SMD 2835
CCT 3000K / 4000K / 5000K / 5700K / 6500K
Luminous Efficacy 140 LM/W (±5%)
Input Voltage AC100-277V / 120-347V / 277-480V, 50-60Hz
CRI Ra > 80 (Ra70 / Ra90 optional)
Beam Angle 30° / 45° / 60° / 90° / 120°
Rated Lifespan 60,000 hours
Warranty 5 Years
Working Temperature -40°C ~ +55°C
Working Humidity 20% ~ 90%
Storage Temperature -40°C ~ +80°C
Storage Humidity 10% ~ 90%

Electrical Parameters

Parameter Value
Power Factor > 0.9
THD < 20%
Driver Efficiency 90%
Dimming NO

Mechanical Parameters

Parameter Specification
Housing Material Die-casting Aluminum
Cover Material Tempered Glass
IP Rating IP66
IK Rating IK08

Model Variations

Model Power LED Quantity Dimensions (L×W×H)
MF-EX02-A-50W 50W 232 PCS 329 × 217 × 272 mm
MF-EX02-A-75W 75W 232 PCS 329 × 217 × 272 mm
MF-EX02-A-100W 100W 232 PCS 329 × 217 × 272 mm
MF-EX02-A-150W 150W 232 PCS 329 × 217 × 272 mm
MF-EX02-A-200W 200W 432 PCS 389 × 268 × 295 mm
MF-EX02-A-240W 240W 432 PCS 389 × 268 × 295 mm
MF-EX02-A-300W 300W 432 PCS 462 × 312 × 325 mm
MF-EX02-A-400W 400W 432 PCS 462 × 312 × 325 mm
