Factory price Triac 0-10 Dali Dali-2 Control COB Series LED Recessed Down Light LED Down Light LED Spot Light
Factory price Triac 0-10 Dali Dali-2 Control COB Series LED Recessed Down Light LED Down Light LED Spot Light
Factory price Triac 0-10 Dali Dali-2 Control COB Series LED Recessed Down Light LED Down Light LED Spot Light
Factory price Triac 0-10 Dali Dali-2 Control COB Series LED Recessed Down Light LED Down Light LED Spot Light
Factory price Triac 0-10 Dali Dali-2 Control COB Series LED Recessed Down Light LED Down Light LED Spot Light
Factory price Triac 0-10 Dali Dali-2 Control COB Series LED Recessed Down Light LED Down Light LED Spot Light
Factory price Triac 0-10 Dali Dali-2 Control COB Series LED Recessed Down Light LED Down Light LED Spot Light
Factory price Triac 0-10 Dali Dali-2 Control COB Series LED Recessed Down Light LED Down Light LED Spot Light
Factory price Triac 0-10 Dali Dali-2 Control COB Series LED Recessed Down Light LED Down Light LED Spot Light
Factory price Triac 0-10 Dali Dali-2 Control COB Series LED Recessed Down Light LED Down Light LED Spot Light
Specifications
PF :
5-20W≥0.50, 20W≥0.95
Lifespan :
≥50000hrs
Temperature :
-20℃ ~50℃
Payment Terms :
T/T
Material :
Die-casting Aluminum
Certification :
CE
Model :
MF-DLT15-5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W
IP :
IP40
Color temperature :
2700K/3000K /3500K/ 4000K / 5000K /6000K
Certificate :
CE/ RoHS（Whole Lamp）; CE/ROHS/CB/SAA(Driver)
Delivery Time :
7days for sample
Input voltage :
110Vac or 200-240Vac, 50hz/60hz
CCT Adjustable :
2700-6000K Tunable as optional if need
LED Chip :
OSRAM/Epistar COB as options
Cover :
PC Milky
Dimmable :
Non-Dim/Triac/0-10V/Dali-2 dimmable/Tuya Zigbee as options
Model Number :
MF-DLT15-12W
Luminous Flux (lm) :
100LM/W
Supply Ability :
10000 PCS/Month
Life Spain :
≥ 50,000Hrs
LED Driver :
Lifud/Aohuaweiye/Eaglerise/BOKE Brand for different dim version
Beam Angle :
60°
Price :
USD 6.60-16.50/PCS
Housing Colour :
White/black as options
CRI（Ra） :
Ra90+/ Ra80+ As options
Brand Name :
MF
Power(watt) :
5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W
MOQ :
10
Packaging Details :
77*32*34/50PCS/CTN
UGR :
<19
Place of Origin :
CHINA
Warranty Period :
3 years
Description

Product Description

Factory price Triac 0-10 Dali Dali-2 Control COB Series LED Recessed Down Light LED Down Light LED Spot Light

Factory price Triac 0-10 Dali Dali-2 Control COB Series LED Recessed Down Light LED Down Light LED Spot Light

Item Specification
Model MF DLT15-5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W
Rated Power 5W,7W,10W,12W,15W,20W,25W,30W,35W,40W,45W,50W
Color Temperature 2700K,3000K,3500K,4000K,5000K,6000K; CCT adjustable 2700-6000K optional
LED Source High-performance COB light source
LED Driver Qualified brand for different dimming versions
Power Factor 5-20W ≥0.50;>20W ≥0.95
Housing Color White / Black optional
Cover Material Milky PC Diffuser
Luminous Efficacy 100LM/W,100LM per watt
CRI(Ra) CRI80 / CRI90 optional
Lifespan ≥50000 Hours
Beam Angle 60 degree wide beam angle
Material Die casting Aluminum
Working Temperature -20ºC ~ +50ºC
Dimmable Option Non Dim / Triac / 0-10V / DALI 2 / Dali DT8 / Tuya Zigbee / Tuya Wifi
Input Voltage AC110Vac / AC200-240V, 50-60Hz
IP Rating IP40
UGR less than 19 Anti glare
Certificates Whole lamp: CE, RoHS;Driver: CE, RoHS, CB, SAA
Warranty

3 Years

Factory price Triac 0-10 Dali Dali-2 Control COB Series LED Recessed Down Light LED Down Light LED Spot Light

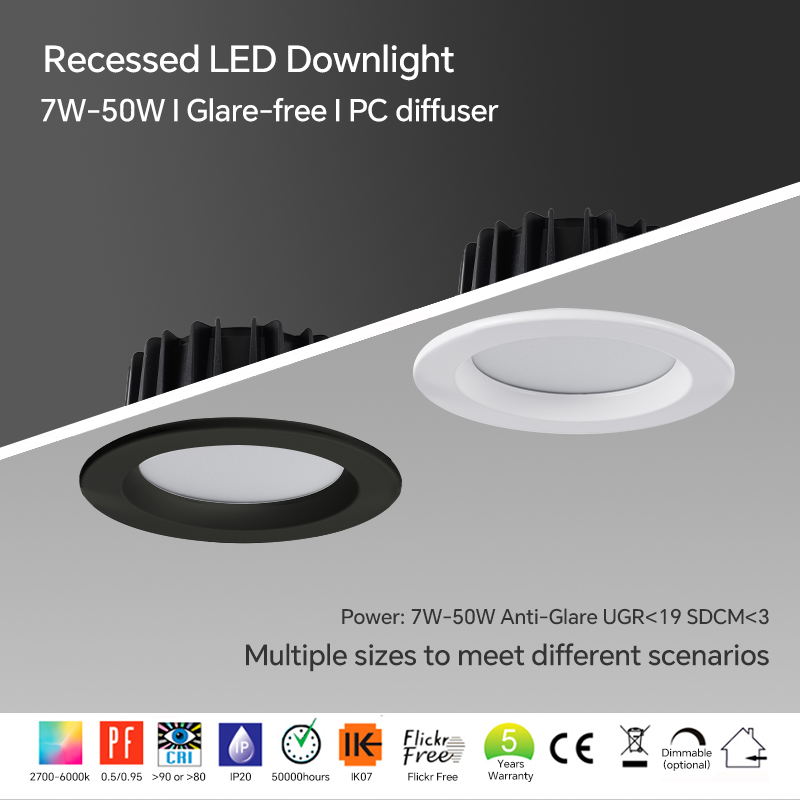

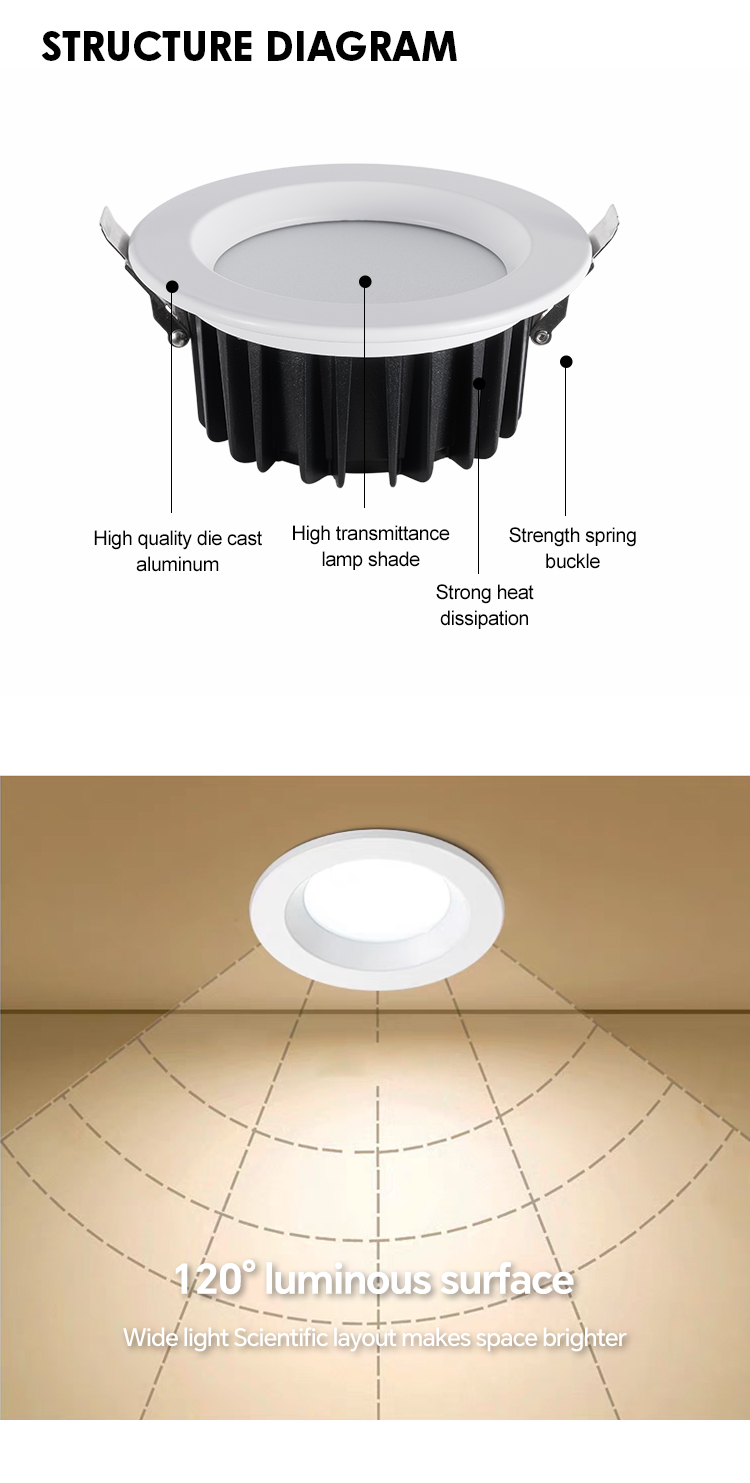

1. Long Lifespan: Integrated die-cast aluminum heat sink ensures lifespan of 50,000 hours or more.


2. Anti-Glare Design: Deep recessed structure with UGR<19 provides eye-friendly lighting for bedrooms and offices.


3.Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V, and DALI dimming with smart control via APP.

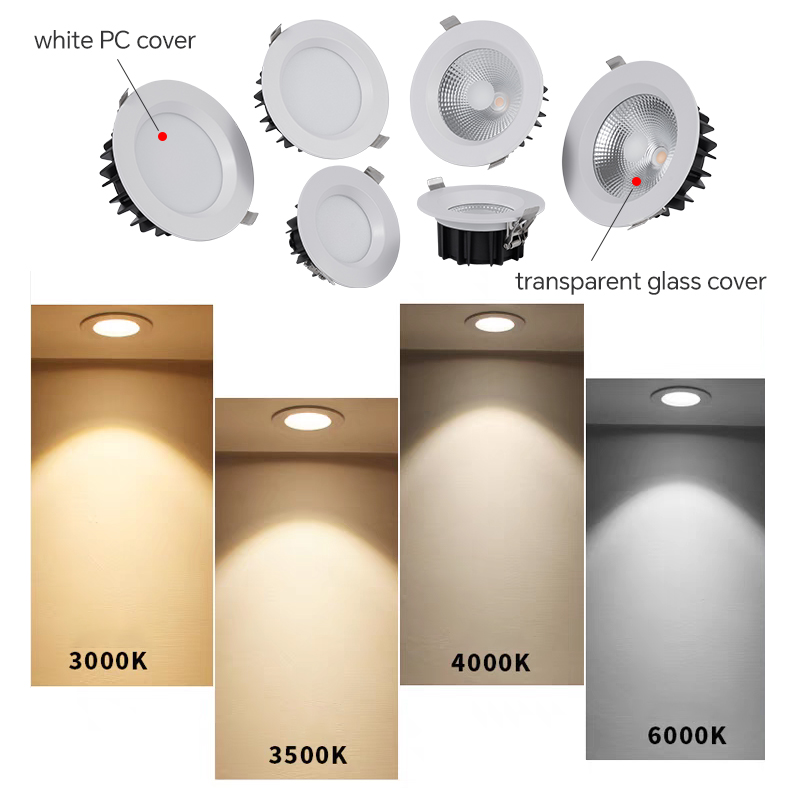

4. Wide Color Temperature Range: Available in 2700K to 6000K, with tunable CCT options for customized lighting scenes.

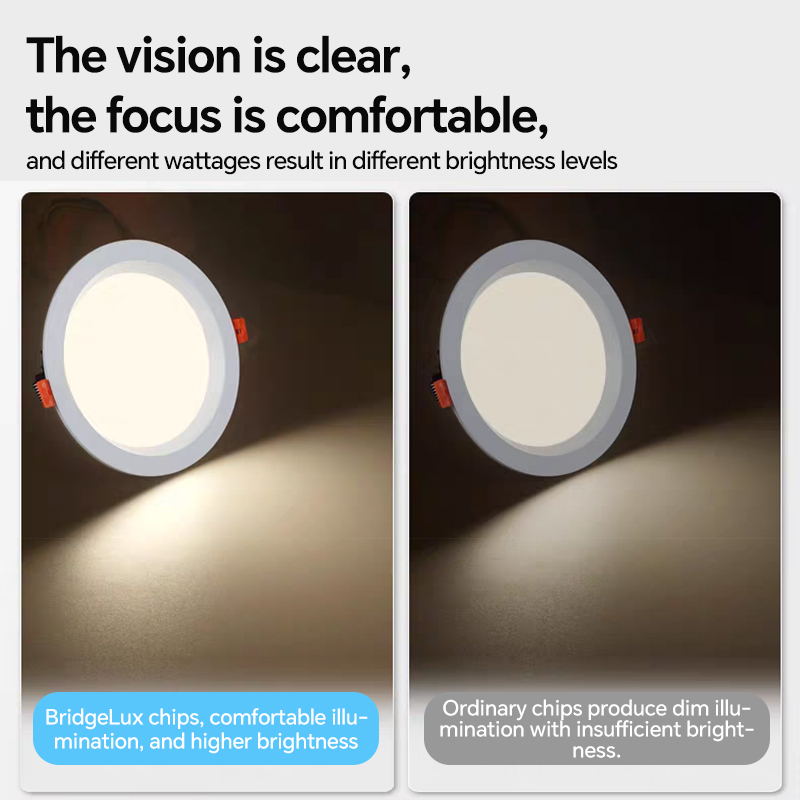

5.High Luminous Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+) for accurate color rendering.

Factory price Triac 0-10 Dali Dali-2 Control COB Series LED Recessed Down Light LED Down Light LED Spot LightFactory price Triac 0-10 Dali Dali-2 Control COB Series LED Recessed Down Light LED Down Light LED Spot Light

Factory price Triac 0-10 Dali Dali-2 Control COB Series LED Recessed Down Light LED Down Light LED Spot Light Factory price Triac 0-10 Dali Dali-2 Control COB Series LED Recessed Down Light LED Down Light LED Spot Light

Factory price Triac 0-10 Dali Dali-2 Control COB Series LED Recessed Down Light LED Down Light LED Spot Light

Factory price Triac 0-10 Dali Dali-2 Control COB Series LED Recessed Down Light LED Down Light LED Spot Light

Flexible Dimming Options: Supports Non-Dim ,TRIAC,0-10V,Tuya zigbee and DALI dimming with smart control via APP.

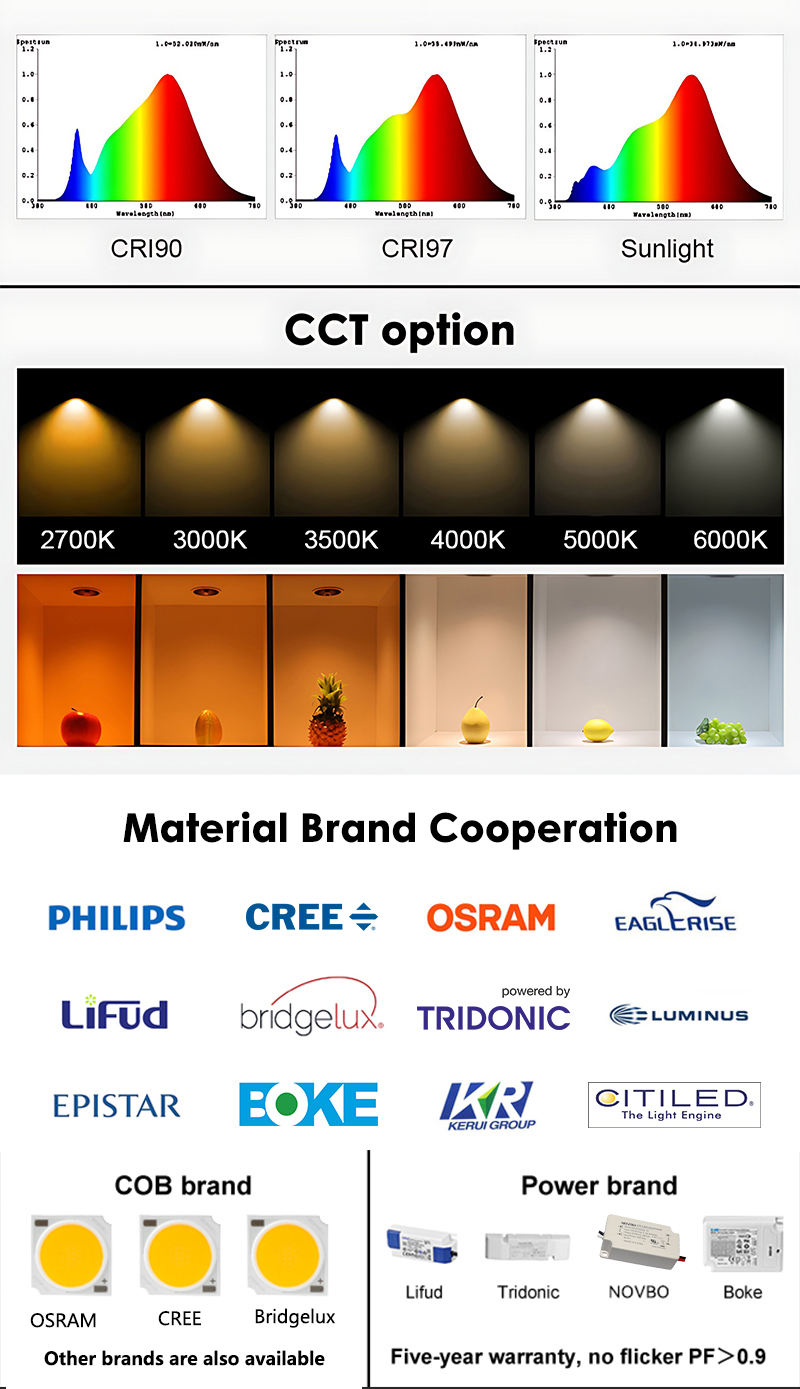

Wide Color Temperature Range: Available in 2700K to 6000K ,with tunable CCT 2700-6000K options for customized lighting scenes.


High Luminous Efficiency: Delivers 100 lumens per watt with high CRI options (Ra80+/Ra90+)for accurate color rendering.


Multiple Housing Colors: Available in White ,Black to match various interior styles.

Factory price Triac 0-10 Dali Dali-2 Control COB Series LED Recessed Down Light LED Down Light LED Spot Light Factory price Triac 0-10 Dali Dali-2 Control COB Series LED Recessed Down Light LED Down Light LED Spot Light

Factory price Triac 0-10 Dali Dali-2 Control COB Series LED Recessed Down Light LED Down Light LED Spot Light

Factory price Triac 0-10 Dali Dali-2 Control COB Series LED Recessed Down Light LED Down Light LED Spot Light

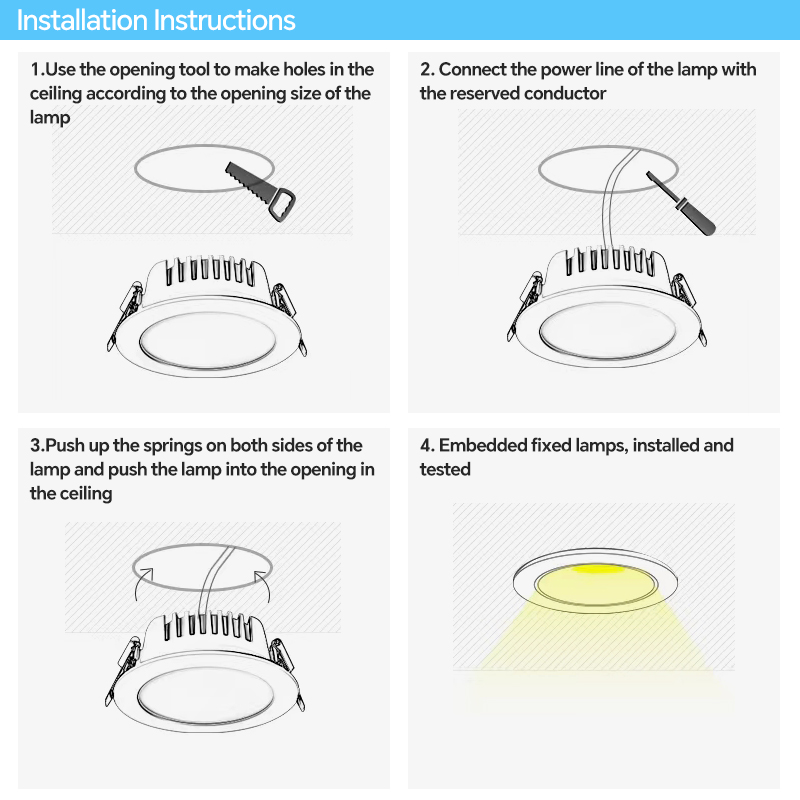

Factory price Triac 0-10 Dali Dali-2 Control COB Series LED Recessed Down Light LED Down Light LED Spot LightEasy Spring Clip Installation

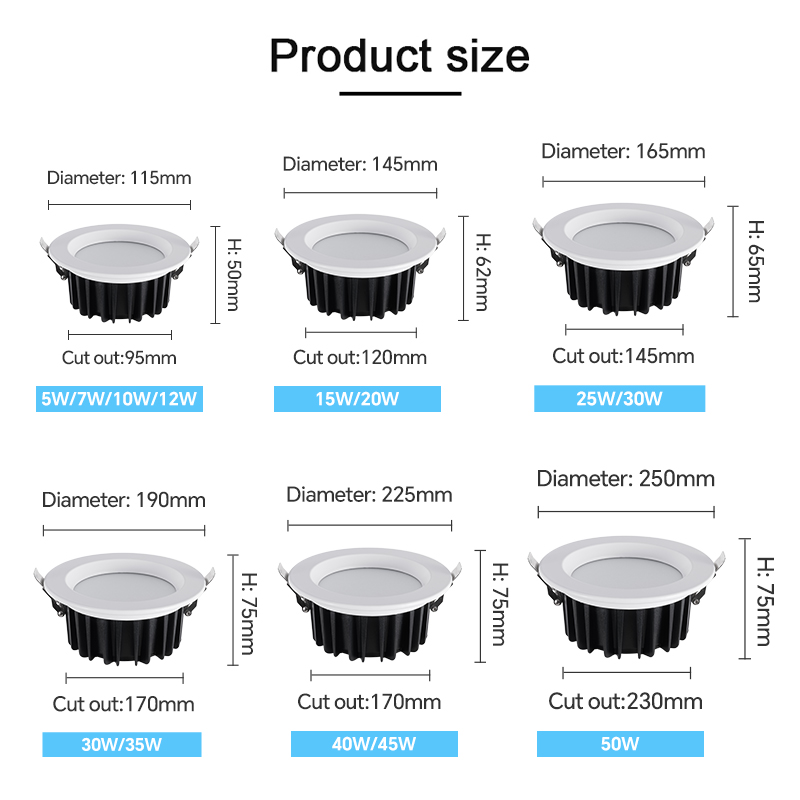

1. Ceiling Hole Cutting:Use appropriate tools to cut a hole in the ceiling according to the size of the corresponding
luminaire.
2. Connect the Wires:Connect the wires to the luminaire terminals correctly according to the installation manual. It is
best to be operated by a professional electrician.
3. Insert into the Ceiling:Align the spring clips on both ends of the product vertically and insert it into the ceiling hole.
4. Lower the Spring Clips:After confirming that the hole size fits the product and the wiring is correct, lower the clips, then you can turn on the power for use

Factory price Triac 0-10 Dali Dali-2 Control COB Series LED Recessed Down Light LED Down Light LED Spot Light

Factory price Triac 0-10 Dali Dali-2 Control COB Series LED Recessed Down Light LED Down Light LED Spot Light

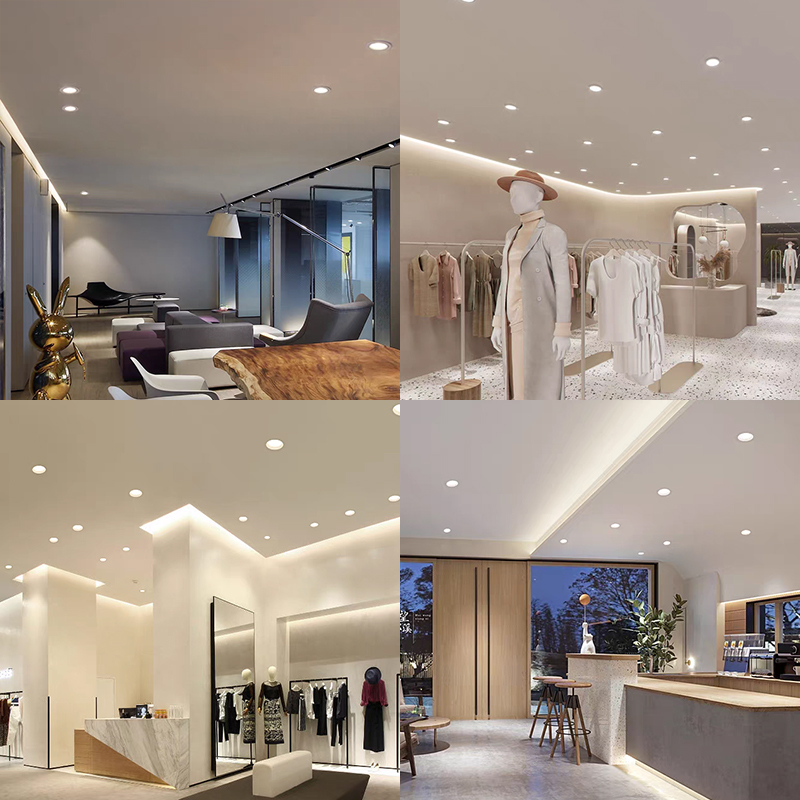

Industrial Settings: In industrial environments where dust, moisture, or water exposure can be an issue, waterproof lighting like these downlights can be beneficial.

Retail or Commercial Spaces: These downlights can also be used in retail stores, restaurants, or other commercial spaces where water resistance and durability are needed.

Factory price Triac 0-10 Dali Dali-2 Control COB Series LED Recessed Down Light LED Down Light LED Spot Light

Factory price Triac 0-10 Dali Dali-2 Control COB Series LED Recessed Down Light LED Down Light LED Spot Light

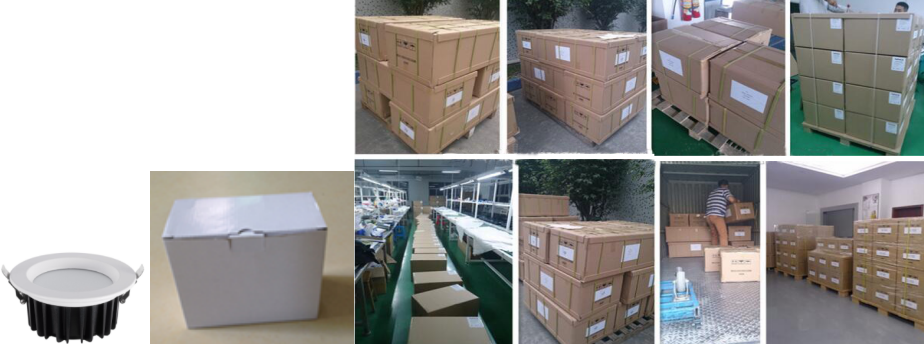

Power Carton Size(cm) Gross Weight Quantity Per Carton
5W/7W/10W/12W 64x27x56 22.5KG 100PCS
15W/20W 77x32x34 19.5KG 50PCS
25W/30W/35W 62x41x43.5 25.0KG 40PCS
40W/45W/50W 51x37x51.5 22.0KG 40PCS

Neutral export-grade carton packing. Custom-printed color-box and OEM marking service available.

Multiple logistics-solution options: sea freight, air freight, express delivery according to project-schedule requirement.

Factory price Triac 0-10 Dali Dali-2 Control COB Series LED Recessed Down Light LED Down Light LED Spot Light
