Factory Price 2in3in4in5in6in Alu. PC anti glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light for Home Furnishing Corridor Public Areas
− High luminous efficacy
− Direct replacement for compact fluorescent lamp downlights
− Energy savings up to 60 % (compared to luminaires that use CFL lamps)
− Very homogenous light
− Functional design
− Easy installation with fast connection
− 3 years guarantee
Specialized design apperance

108 processes

Each layer is carefully design

Len

Reflective cup

Aluminum structure with strong heat dissipation

High quality Hardware Spring

Beam angle:

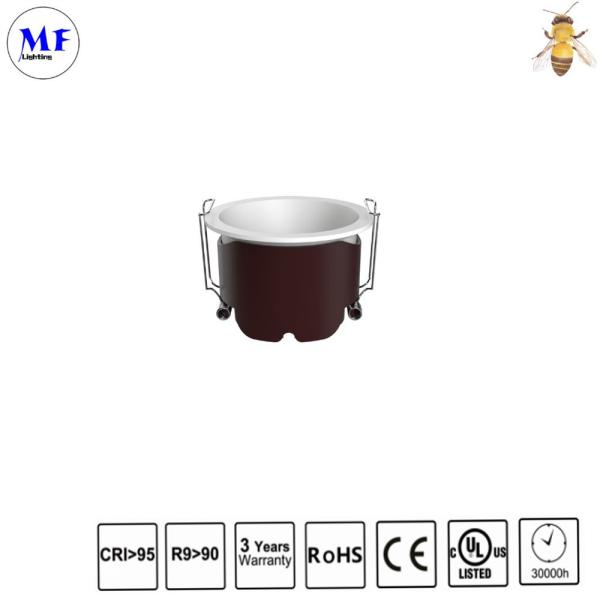

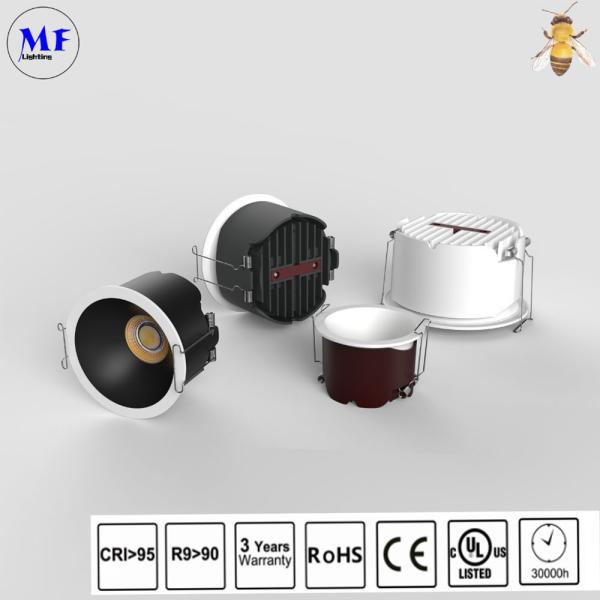

Product pictures:
Parameters
Electrical Data:
Nominal Wattage | 10W/12W/15W/20W/30W/40W |
Nominal Voltage | 100-240V |
Mains Frequency | 50-60Hz |
Nominal Current | 350,000mA |
Power Factor λ | 0.9 |
Protection Class | II |
Operating Mode | Electronic Control Gear (ECG) |
Application & Mounting:
Ambient Temperature Range | -20 °C~ 40°C |
Type of Connection | Terminal, 2-pin |
Type of Protection | IP40 |
Dimmable | No |
Mounting Type | Recessed |
Mounting Location | Ceiling |
Application Environment | Indoor |
Mounting Diameter | 10W 75mm,12W 90mm,15W 100mm,20W 115mm,30W 145mm,40W 170mm |
LED module Replaceable | Not replaceable |
Lifespan L70/B50 at 25 °C | 30000 h1) |
Number of Switching Cycles | 15000 |
Material & Color:
Product Color | White Black |
Housing Color | White Black Grey Red |
Body Material | Aluminum |
Mercury Content | 0.0mg |
Diameter | 10W 82mm,12W 96mm,15W 106mm,20W 123mm,30W 155mm,40W 185mm |
Length | 10W 82mm,12W 96mm,15W 106mm,20W 123mm,30W 155mm,40W 185mm |
Height | 60.00 mm |
Product Weight | 610.00g |
Power | D(mm) | H(mm) | C(mm) |
10W | 82 | 53 | 75 |
12W | 96 | 58 | 90 |
15W | 106 | 63 | 100 |
20W | 123 | 68 | 115 |
30W | 155 | 76 | 145 |
40W | 185 | 83 | 170 |
Luminous Flux | 10W 1000lm/12W 1200lm/15W 1500lm/20W 2000lm/30W 3000lm/40W 4000lm |
Luminous Efficacy | 100 lm/W |
Color Temperature | 3000K 4000K 6000K |
Light Color (designation) | Warm White |
CRI | ≥80 |
Beam Angle | 24°36 °45 °50 °60 ° |
