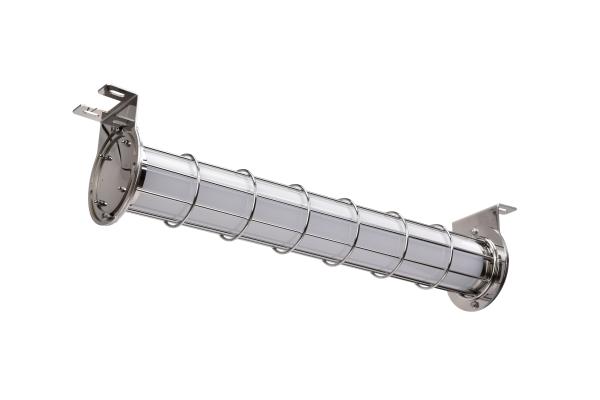

Ip67 Ik10 LED Explosion Proof Lights For Industrial Warehouse
Ip67 Ik10 LED Explosion Proof Lights For Industrial Warehouse
Specifications
Brand Name :
MF
Model Number :
MF-ESO1
Certification :
CE,RoHS,UL,DLC
Place of Origin :
China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
5,000pcs/Month
Delivery Time :
Depends on orders
Packaging Details :
39.5*39.5*20.8cm/1pcs, G.W: 9.5Kg
System Power :
160±5W
Input Voltage :
120-277Vac,50/60Hz
Efficiency :
120lm/w
CRI :
>80
PF :
>0.90
IP Grade :
IP67
Mounted Style :
Recessed /Surface/Pendant
THD :
<15%
Impact protection :
IK10
Explosion proof :
Yes
Description

Factory Direct Best Price Led Explosion Proof Lights Ip67 Ik10 For Industrial Warehouse


Quick Detail:

● Anti-surge & lightning strikes up to 2KV, and withstand 3.5KV high voltage

● Luminous Efficiency:120LM/W

● LED Type: Samsung, High lumen efficacy SMD2835 led chips

●Beam Angle:180°

● LED Driver: JUSIN, 88% efficiency,flicker free,THD<15

● LED Driver Output: DC36-42V

● Function: Non-Dimmable

● Input voltage 120-277v AC universal voltage, 1.5m power cord with 3-pin plug

● CRI:80Ra

● IP67 & IK10

● Working Temperature:-30~50℃

● 5 years warrant

Product Description:

Ip67 Ik10 LED Explosion Proof Lights For Industrial Warehouse
Specifications:

Item

MF-ES01

Input voltage

120-277Vac 50Hz/60Hz

LED Power

20W/40W

Luminaire Efficiency

120lm/W

Delivered Flux(Tj80°c)

17600 lm

IP Rating

IP66

LED QTY

120 pcs

Color temperature

3000K-6500K

Function

Non-Dimmable

LED Driver

Meanwell

Color Rendering Index

Ra>80

Power Factor

>0.94

Lifespan

≥50,000hrs

Operation Environment

Temperature:-30°C~50°C/Humidity:10%~95%

Material

Aluminum Alloy

Product Size(mm)

685(L)*130(W)*155(H)/ 1285(L)*130(W)*155(H)

Net Weight

3Kg/4.3Kg

Certificate

CE/RoHS

Warranty Period

5 years


Dimensions(mm)&Parameters:

Ip67 Ik10 LED Explosion Proof Lights For Industrial WarehouseIp67 Ik10 LED Explosion Proof Lights For Industrial Warehouse

Ip67 Ik10 LED Explosion Proof Lights For Industrial Warehouse
Installation:

Ip67 Ik10 LED Explosion Proof Lights For Industrial Warehouse

Step 1: Drill 4 holes according to the hole of the light holder.

Ip67 Ik10 LED Explosion Proof Lights For Industrial Warehouse

Step 2: Install expansion screw into mounting hole.

Ip67 Ik10 LED Explosion Proof Lights For Industrial Warehouse

Step 3: Lock nut to fix the light.

Ip67 Ik10 LED Explosion Proof Lights For Industrial Warehouse

Step 4: Adjust the angle of light, fix the rotating bracket (Screw torque:2.5N/m) and plug in.

After-sales service:

● From the date of purchase, the product is provided with a free warranty for 5 years, and the following conditions are not included in the free warranty during the warranty period.

● Failure and damage caused by unpacking products; failure caused by falling and touching during handling and use.

● Failure to operate in accordance with the instructions.

● After the warranty period, if the parts need to be replaced during the maintenance process, only the cost of materials to replace the parts, free of time costs.

Applications:

Wildly applied in petrol station, canopy, airport, supermarket, train station, lobby, industry, shopping mall and indoor parking.
