LED Parking Lot Lighting IP65 20W 120LM/WATT , Dimmable, photocell
LED Parking Lot Lighting IP65 20W 120LM/WATT , Dimmable, photocell
LED Parking Lot Lighting IP65 20W 120LM/WATT , Dimmable, photocell
LED Parking Lot Lighting IP65 20W 120LM/WATT , Dimmable, photocell
LED Parking Lot Lighting IP65 20W 120LM/WATT , Dimmable, photocell
LED Parking Lot Lighting IP65 20W 120LM/WATT , Dimmable, photocell
LED Parking Lot Lighting IP65 20W 120LM/WATT , Dimmable, photocell
LED Parking Lot Lighting IP65 20W 120LM/WATT , Dimmable, photocell
Specifications
Brand Name :
MF
Model Number :
MF-P020
Certification :
CE,RoHS,TUV,FCC, DLC
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C,Paypal
Supply Ability :
10,000pcs/Month
Delivery Time :
Depends on orders
Packaging Details :
400*395*115mm/pcs, G.W:5.2Kg
Item No: :
MF-P020
Power: :
20W
Input voltage: :
AC90-305V
LED Chip: :
Cree XTE/ Samsung 351B
LED Driver: :
Meanwell
Efficiency :
130lm/w
CRI: :
80+
IP Grade: :
IP65
CCT :
3000K,4000K , 5000K
Mounting :
Pole/wall Mount As Option
Body color :
Grey/ Black/Silver
Function :
Dimmable/Photocell
Description

90/120 Deg LED Parking Lot Lighting IP65 20W 120LM/WATT , Dimmable, photocell

Description:

LED Parking Lot Lighting is the latest released product for Parking lot lighting from Ming Feng in 2014. This light is allocated with top grade LED from Cree /SAMSUNG and driver from Meanwell, which guarentees a working lifetime over 100,000h hours and a warranty of 5 years.

Our this parking lights with IP65 waterproof, 90°, 120°, 90*120°, 85*135° different beam angle, Grey/ Black/Silver body color for choose, Powder coated die casting aluminum, High standard corrosion resistant finishing and UV resistant can be optional if required.6 different kinds of bracket avaiable for pole, wall...etc installation.

CE, TUV, ROHS, FCC, DLC available, dimmable, photocell sensor function.

Specifications: MF-P020 Parking Light Data Sheet.pdf

Item

 MF-P020

Input voltage

85-305Vac 50Hz/60Hz

LED Power

20W

Rated Power

2W

Delivered Flux(Tj80°c)

1900lm

IP Rating

IP65

Luminous Efficiency

130LM/W
LED Qty: 10pcs
Pole Diameter(mm): Dia60mm / Dia76mm

Color temperature

3000K / 4000K / 5000K

LED Chip

Cree XTE/ SAMSUNG 351B

LED Driver

Meanwell

Color Rendering Index

80+

Power Factor

>0.98

Lifespan

≥100,000hrs

Operation Environment

Temperature:-40°C~50°C / Humidity:10%~95%

Material

Aluminum Alloy

Product Size(mm)

275(L)*364(W)*176(H)

Packing Size(mm)

400(L)*395(W)*115(H)/pcs

Net Weight

N.W:4.5Kg G.W:6.0kg

Certificate

CE/RoHS/TUV/FCC/DLC

Warranty Period

5 years



Competitive Advantage:

1. Light Source: We are use 150LM/W SAMSUNG 351B Chip / CREE XTE Chip options, efficiency acheives 130LM/W.
2. Driver:Taiwan Meanwell LED Driver, Wide AC90-305V, PF>0.98,low THD<9%.
3. Waterproof Grade: IP65.

4. Beam Angle: 90°, 120°, 90*120°, 85*135°

5. Functions: Dimmable, Photocell available.

6. Warranty: Five years

7. Material: Powder coated die casting aluminum, High standard corrosion resistant finishing and UV resistant can be optional if required.

8. Body color : Grey/ Black/Silver


LED Parking Lot Lighting IP65 20W 120LM/WATT , Dimmable, photocell

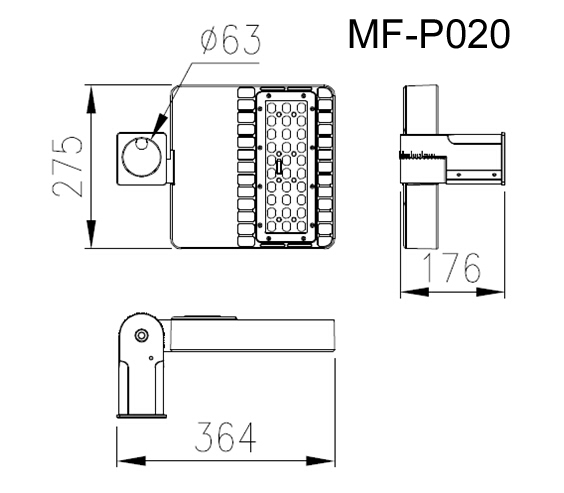

Dimension:

LED Parking Lot Lighting IP65 20W 120LM/WATT , Dimmable, photocell

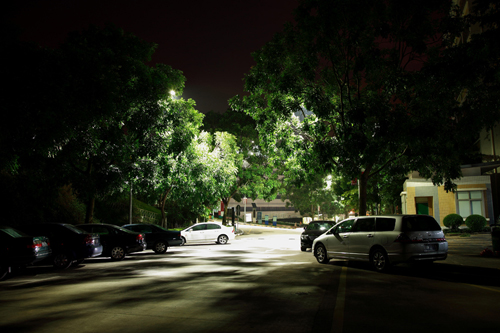

Application:

Parking Lot lighting, wall lighting area, street lighting...etc.

LED Parking Lot Lighting IP65 20W 120LM/WATT , Dimmable, photocell
