Waterproof 12V IP67 Outdoor Spotlights 1W / 3W For Underground Lamp
Waterproof 12V IP67 Outdoor Spotlights 1W / 3W For Underground Lamp
Waterproof 12V IP67 Outdoor Spotlights 1W / 3W For Underground Lamp
Waterproof 12V IP67 Outdoor Spotlights 1W / 3W For Underground Lamp
Waterproof 12V IP67 Outdoor Spotlights 1W / 3W For Underground Lamp
Waterproof 12V IP67 Outdoor Spotlights 1W / 3W For Underground Lamp
Waterproof 12V IP67 Outdoor Spotlights 1W / 3W For Underground Lamp
Waterproof 12V IP67 Outdoor Spotlights 1W / 3W For Underground Lamp
Specifications
Brand Name :
MF
Model Number :
MF-3W12V
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C, Paypal
Supply Ability :
10,000pcs/Month
Delivery Time :
Depends on orders
Packaging Details :
26*24*20cm/24pcs, G.W: 8KG
Description

Waterproof 12V IP67 Outdoor Spotlights 1W / 3W For Underground Lamp



Quick Detail:

  1. 1W / 3W Mini Dimmable LED Down Light
  2. Input: 12-24Vdc, 12Vac
  3. Luminous Flux:95-240lm
  4. CRI: >80
  5. Beam Angle: 30°,60°,120°
  6. LED chip: Bridgelux 45mil
  7. IP: 67
  8. Dimmable: Yes



Description:

Ming Feng lighting co.,ltd 2015 IP67 Mini Dimmable LED down light main body color are silver sand, white, black.

Color options 2700K, 3000K, 4000K, 6000K. Waterproof as the led down light / led spot light special for outdoor application.

The Mini dimmalbe led down light could both one piece package and series package. like six, even more than ten pieces together package. For series package version, they must be used for series connection.



Specifications:

Model No:

MF-3W12V

Input voltage

12-24Vdc, 12Vac

Power(watt)

1W / 3W

Dimension

D35*49mm

Color temperature

WW(2700-3000K) ,PW(4000-4500K) ,CW(5500-6500K), Red, Green, Blue

LED Chip

Bridgelux 45mil

PF

>0.92

Luminous Flux (lm)

95-240lm

CRI(Ra)

≥80

Lifespan

≥35000hrs

Beam Angle

30°,60°,120°

Material

Aluminum Alloy

Operating Temperature

-200C ~450C

Dimmable

Y

IP

67

Dimension Package

10×5.3×5.3cm/pcs
Carton Size 26×24×20cm/24pcs

Weight Package

8KG

Certificate

CE/RoHS

Warranty Period

3 years



Competitive Advantage:

  1. High output Bridgelux 45mil LED chips ,stable performance and patented product.
  2. Beam angle 30 degree / 60 degree / 120 degree options,
  3. The lamp body is small, flexible application.
  4. Choose white, red, blue, golden Light, Purple.
  5. IP67 degree of protection.
  6. 6063 pure aluminum as heatsink material, Excellent heat dissipation performance which brings the light real long life.
  7. High power factor>0.92.
  8. 3 years guarantee



Dimension:

Waterproof 12V IP67 Outdoor Spotlights 1W / 3W For Underground Lamp

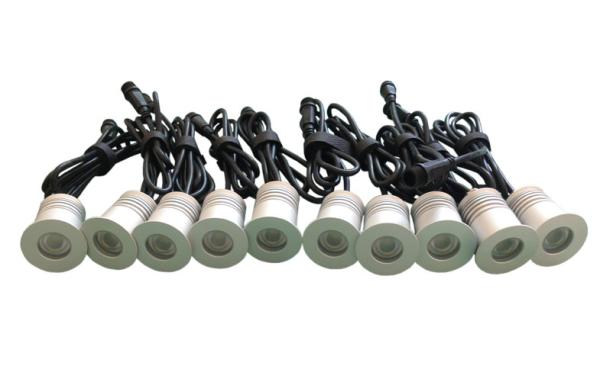

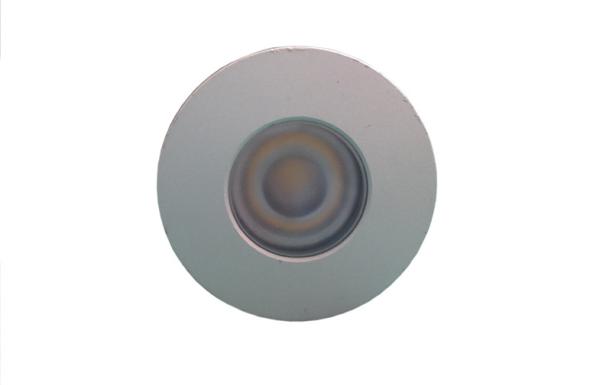

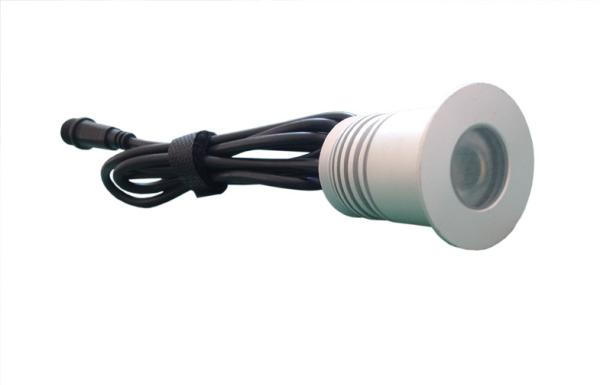

Product Picture:

Waterproof 12V IP67 Outdoor Spotlights 1W / 3W For Underground Lamp

Waterproof 12V IP67 Outdoor Spotlights 1W / 3W For Underground Lamp

Connection Diagram:

Waterproof 12V IP67 Outdoor Spotlights 1W / 3W For Underground Lamp


Installation Diagram:

Waterproof 12V IP67 Outdoor Spotlights 1W / 3W For Underground Lamp


Packing:

Waterproof 12V IP67 Outdoor Spotlights 1W / 3W For Underground Lamp

Applications:

Widely used in Roads, Squares, Walkways, Gardens, Swimming pools, Bridges, and other outdoor venues... etc

Waterproof 12V IP67 Outdoor Spotlights 1W / 3W For Underground Lamp
