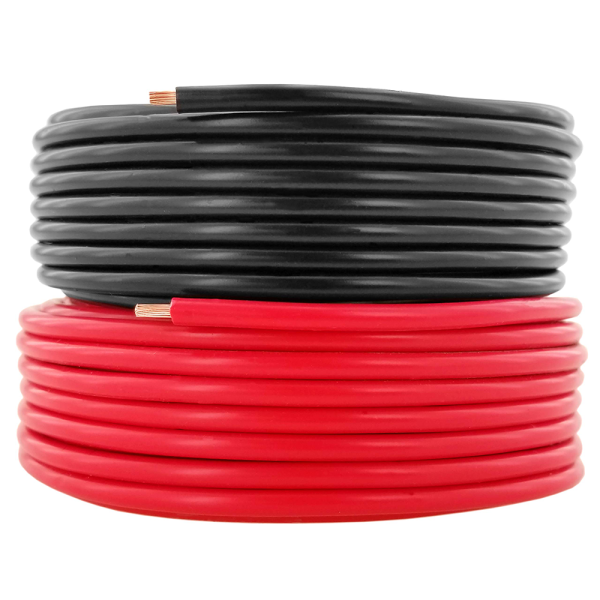

25 35 50 70 95mm Flexible Battery Cable Pure Copper Conductor For Solar Inverter Systems
25 35 50 70 95mm Flexible Battery Cable Pure Copper Conductor For Solar Inverter Systems
25 35 50 70 95mm Flexible Battery Cable Pure Copper Conductor For Solar Inverter Systems
25 35 50 70 95mm Flexible Battery Cable Pure Copper Conductor For Solar Inverter Systems
25 35 50 70 95mm Flexible Battery Cable Pure Copper Conductor For Solar Inverter Systems
25 35 50 70 95mm Flexible Battery Cable Pure Copper Conductor For Solar Inverter Systems
25 35 50 70 95mm Flexible Battery Cable Pure Copper Conductor For Solar Inverter Systems
25 35 50 70 95mm Flexible Battery Cable Pure Copper Conductor For Solar Inverter Systems
25 35 50 70 95mm Flexible Battery Cable Pure Copper Conductor For Solar Inverter Systems
25 35 50 70 95mm Flexible Battery Cable Pure Copper Conductor For Solar Inverter Systems
25 35 50 70 95mm Flexible Battery Cable Pure Copper Conductor For Solar Inverter Systems
25 35 50 70 95mm Flexible Battery Cable Pure Copper Conductor For Solar Inverter Systems
Specifications
Brand Name :
Minfeng
Model Number :
Battery Cable
Certification :
ISO,CE,IEC,TUV,KEMA
Place of Origin :
Hebei, China
MOQ :
100
Price :
0.1-5
Payment Terms :
L/C,T/T
Supply Ability :
100KM/Week
Material :
PVC Copper
Conductormaterial :
Copper
Flame Retardant :
As per customer request
Application :
Building wiring, electrical installations
Meterial :
Solid/Stranded Copper
Jacket Material :
PVC
Operating Temp :
70 degree
Cable Spec :
1.5sqmm,2.5sqmm,4sqmm ,6sqmm to 400sqmm
Description
Battery Cable 25 35 50 70 95 mm 1/0 2/0 Awg Gauge High Temperature Resistance Flexible Cable for Solar Inverter System
Product Overview

Battery Cable is engineered for ESS Cabinet and automotive battery connections, boasting high-temperature resilience and remarkable flexibility. With a long lifespan and built-in safety features, it ensures dependable and hazard-free performance, eliminating concerns of overheating or malfunctions.

Key Specifications
Rated Voltage 450/750V
Size 10/16/25/35/50/70/95/120 mm²
Conductor Material Copper
Insulation Material PVC
Working Temperature -25℃~75℃
Jacket PVC
Application Solar system
Rated Current 60A~300A
Type High Voltage
Place of Origin Hebei, China
Model Number Battery Cable
Brand Name Minfeng
Conductor Stranded Conductor
Material 99.995% Pure Copper
Jacket Material PE
Color Black Red Orange
Application Solar inverter
Certificate TUV SAE
Rated Voltage 1000/1500V
Core Single core
Standard IEC60228
Technical Specifications
Cross Section (mm²) Construction (No./m) DIA. (mm) Thickness (mm) O.D. (mm) Max. COND. Resistance (Ω/km,20℃,DC)
1 32/0.20 1.30 0.60 2.70 18.5
1.5 48/0.20 1.62 0.60 3.00 12.7
2.5 49/0.20 2.06 0.70 3.50 7.6
3 98/0.20 2.58 0.70 4.00 6.15
4 126/0.20 2.70 0.80 4.40 4.71
6 190/0.20 3.20 0.80 5.10 3.14
10 323/0.20 4.50 1.00 6.60 1.82
16 513/0.20 5.80 1.00 8.00 1.16
25 798/0.20 7.30 1.30 9.80 0.743
35 1121/0.20 8.65 1.30 11.30 0.527
50 1596/0.20 9.60 1.50 12.70 0.368
70 2257/0.20 11.70 1.50 15.00 0.259
Product Features

Welding Battery Cable stands out as a premium solution designed specifically for Welding, Solar System, and Battery Connection applications, boasting exceptional performance and reliability. Its unique feature lies in the use of pure copper as a conductor, ensuring superior conductivity and flexibility for users.

25 35 50 70 95mm Flexible Battery Cable Pure Copper Conductor For Solar Inverter Systems
Product Details
25 35 50 70 95mm Flexible Battery Cable Pure Copper Conductor For Solar Inverter Systems
Applications
25 35 50 70 95mm Flexible Battery Cable Pure Copper Conductor For Solar Inverter Systems 25 35 50 70 95mm Flexible Battery Cable Pure Copper Conductor For Solar Inverter Systems 25 35 50 70 95mm Flexible Battery Cable Pure Copper Conductor For Solar Inverter Systems
