10mm 16mm 3 Core Flexible PVC Cable Electrical Wire for Power Devices and Fixed Wiring
10mm 16mm 3 Core Flexible PVC Cable Electrical Wire for Power Devices and Fixed Wiring
10mm 16mm 3 Core Flexible PVC Cable Electrical Wire for Power Devices and Fixed Wiring
10mm 16mm 3 Core Flexible PVC Cable Electrical Wire for Power Devices and Fixed Wiring
10mm 16mm 3 Core Flexible PVC Cable Electrical Wire for Power Devices and Fixed Wiring
10mm 16mm 3 Core Flexible PVC Cable Electrical Wire for Power Devices and Fixed Wiring
10mm 16mm 3 Core Flexible PVC Cable Electrical Wire for Power Devices and Fixed Wiring
10mm 16mm 3 Core Flexible PVC Cable Electrical Wire for Power Devices and Fixed Wiring
10mm 16mm 3 Core Flexible PVC Cable Electrical Wire for Power Devices and Fixed Wiring
10mm 16mm 3 Core Flexible PVC Cable Electrical Wire for Power Devices and Fixed Wiring
10mm 16mm 3 Core Flexible PVC Cable Electrical Wire for Power Devices and Fixed Wiring
10mm 16mm 3 Core Flexible PVC Cable Electrical Wire for Power Devices and Fixed Wiring
Specifications
Model Number :
BVR cable
Delivery Time :
10 Days
Conductor Material :
copper or Al-alloy
Brand Name :
Minfeng
Certification :
ISO,CE,IEC,TUV,KEMA
Price :
0.1-5
Payment Terms :
L/C,T/T
Place of Origin :
Hebei, China
Halogen Free :
Available
Flame Retardant :
Available
Outer Sheath Color :
Black or as per required
Insulation :
XLPE
MOQ :
100
Core Mark :
Number or Color Strip
Cores No :
1-5
Supply Ability :
100KM/Week
Type :
YJV YJV22 YJV32
Description
10mm 16mm 25mm 3 Core 5Core Flexible PVC Cable Electrical Wire
Product Overview

RVV, Copper PVC Insulated PVC Sheathed Flexible Cable

Key Specifications
  • Executive Standard: GB/T5023.5-2008; GB 5023-1997; IEC 60227-1997
  • Conductor: Oxygen-free pure copper mostly; a few tinned copper wires
  • Insulation: PVC
  • Sheath: PVC / WDZ / NH / ZR
  • Color: Black / White / Custom
  • Specifications: 0.5 square - 6 square (2 cores - 24 cores)
  • Number of Cores: Multi-core; more than two cores twisted into cables
  • Rated Voltage: 400/750V, 300/500V, 300/300V
  • Rated Temperature: 70°C
  • Packing Meters: Generally 200 or 300 meters/roll
Product Features
  • Acid and alkali resistance, oil resistance, moisture resistance, mildew resistance, environmental protection
  • Uniform insulation thickness, easy to peel and cut
  • Good flame retardancy and cold resistance
  • Excellent insulation mechanical properties, bright colors and easy installation
  • Passed GB/T18380 flame retardant test
  • Comply with EU RoHS environmental protection directive, and passed the test by SGS
Applications
  • Suitable for power devices, fixed wiring and flexible connection electrical appliances with rated voltages of 450/750V and below
  • Household electrical wires; power cords
  • Special power cords for building intercom systems and monitoring
  • Transmission lines for machine tool manufacturing, instrumentation, household appliances, lighting equipment, power stations, etc.

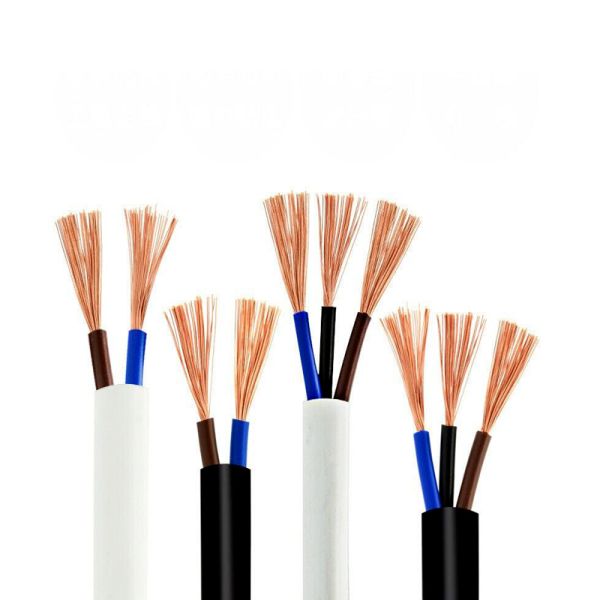

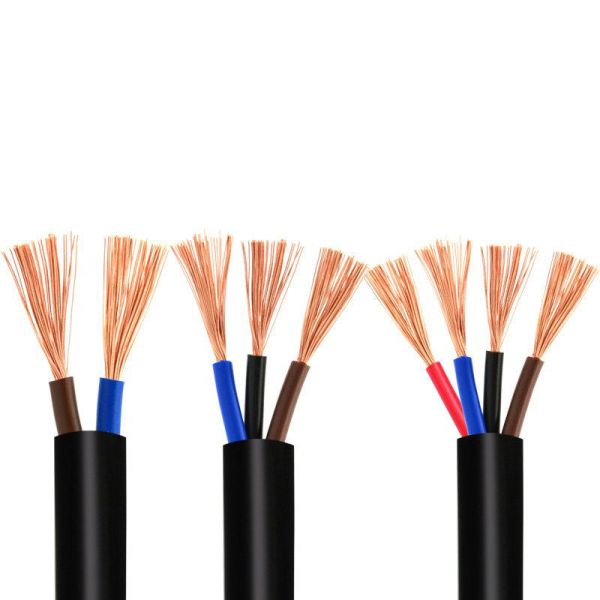

Product Images
10mm 16mm 3 Core Flexible PVC Cable Electrical Wire for Power Devices and Fixed Wiring 10mm 16mm 3 Core Flexible PVC Cable Electrical Wire for Power Devices and Fixed Wiring 10mm 16mm 3 Core Flexible PVC Cable Electrical Wire for Power Devices and Fixed Wiring
Available Specifications
  • 2 × 0.50 / 3 × 0.50 / 4 × 0.50 / 5 × 0.50 / 6 × 0.50 / 7 × 0.50 / 8 × 0.50 / 10 × 0.50 / 12 × 0.50 / 18 × 0.50 / 25 × 0.50 / 36 × 0.50
  • 2 × 0.75 / 3 × 0.75 / 4 × 0.75 / 5 × 0.75 / 6 × 0.75 / 7 × 0.75 / 8 × 0.75 / 10 × 0.75 / 12 × 0.75 / 18 × 0.75 / 25 × 0.75 / 36 × 0.75
  • 2 × 1.0 / 3 × 1.0 / 4 × 1.0 / 5 × 1.0 / 6 × 1.0 / 7 × 1.0 / 8 × 1.0 / 10 × 1.0 / 12 × 1.0 / 18 × 1.0 / 25 × 1.0 / 36 ×1.0
  • 2 × 1.5 / 3 × 1.5 / 4 × 1.5 / 5 × 1.5 / 6 × 1.5 / 7 × 1.5 / 8 × 1.5 / 10 × 1.5 / 12 × 1.5 / 18 × 1.5 / 25 × 1.5 / 36 × 1.5
  • 2× 2.5 / 3 × 2.5 / 4 × 2.5 / 5 × 2.5 / 6 × 2.5 / 7 × 2.5 / 8 × 2.5 / 10 × 2.5 / 12 × 2.5 / 18 × 2.5 / 25 × 2.5 / 36 × 2.5
  • 2 × 4.0 / 3 × 4.0 / 4 × 4.0 / 5 × 4.0 / 7 × 4.0
  • 2 × 6.0 / 3 × 6.0 / 4 × 6.0 / 5 × 6.0 / 7 × 6.0
  • 2 × 10.0 / 3 × 10.0 / 4 × 10.0 / 5 ×10.0
  • 3 × 16.0 / 4 × 16.0 / 5 × 16.0
  • 4 × 25.0 / 5 × 25.0
  • 4 × 36.0 / 5 × 36.0
Technical Parameters
Number of cores × Cross-section (mm) Specification Insulation Thickness (mm) Sheath Thickness (mm) Conductor Resistance Ω/km ≤ 20℃ (Copper) Conductor Resistance Ω/km ≤ 20℃ (Galvanized Copper)
2×0.5 16/0.20 0.5 0.6 39 40.1
2×0.75 24/0.20 0.6 0.8 26 26.7
2×1 32/0.20 0.6 0.8 19.5 20
2×1.5 30/0.25 0.7 0.8 13.3 13.7
2×2.5 49/0.25 0.8 1 7.98 8.21
3×0.5 16/0.20 0.6 0.6 39 40.1
3×0.75 24/0.20 0.6 0.8 26 26.7
3×1 32/0.20 0.6 0.8 19.5 20
3×1.5 30/0.25 0.7 0.9 13.3 13.7
3×2.5 49/0.25 0.8 1.1 7.98 8.21
4×0.75 24/0.20 0.6 0.8 26 26.7
4×1 32/0.20 0.6 0.9 19.5 20
4×1.5 30/0.25 0.7 1 13.3 13.7
4×2.5 49/0.25 0.8 1.1 7.98 8.21
5×0.75 24/0.20 0.6 0.9 26 26.7
5×1 32/0.20 0.6 0.9 19.5 20
5×1.5 30/0.25 0.7 1.1 13.3 13.7
5×2.5 49/0.25 0.8 1.2 7.98 8.21
