Fire Resistant Copper Conductor Cable Mineral Insulated Cable IP67 0.6/1kV 3 - 5 Cores
Fire Resistant Copper Conductor Cable Mineral Insulated Cable IP67 0.6/1kV 3 - 5 Cores
Fire Resistant Copper Conductor Cable Mineral Insulated Cable IP67 0.6/1kV 3 - 5 Cores
Fire Resistant Copper Conductor Cable Mineral Insulated Cable IP67 0.6/1kV 3 - 5 Cores
Fire Resistant Copper Conductor Cable Mineral Insulated Cable IP67 0.6/1kV 3 - 5 Cores
Fire Resistant Copper Conductor Cable Mineral Insulated Cable IP67 0.6/1kV 3 - 5 Cores
Fire Resistant Copper Conductor Cable Mineral Insulated Cable IP67 0.6/1kV 3 - 5 Cores
Fire Resistant Copper Conductor Cable Mineral Insulated Cable IP67 0.6/1kV 3 - 5 Cores
Fire Resistant Copper Conductor Cable Mineral Insulated Cable IP67 0.6/1kV 3 - 5 Cores
Fire Resistant Copper Conductor Cable Mineral Insulated Cable IP67 0.6/1kV 3 - 5 Cores
Specifications
MOQ :
100
Model Number :
BTLY
Flame Retardant :
Available
Brand Name :
Minfeng
Conductor Material :
copper or Al-alloy
Outer Sheath Color :
Black or as per required
Cores No :
1-5
Insulation :
XLPE
Halogen Free :
Available
Type :
YJV YJV22 YJV32
Supply Ability :
100KM/Week
Payment Terms :
L/C,T/T
Place of Origin :
Hebei, China
Core Mark :
Number or Color Strip
Certification :
ISO,CE,IEC,TUV,KEMA
Price :
0.1-5
Delivery Time :
10 Days
Description
0.6/1kV Fire Resistant Copper Conductor PVC IP67 Power Cable (3/4/5 Cores)

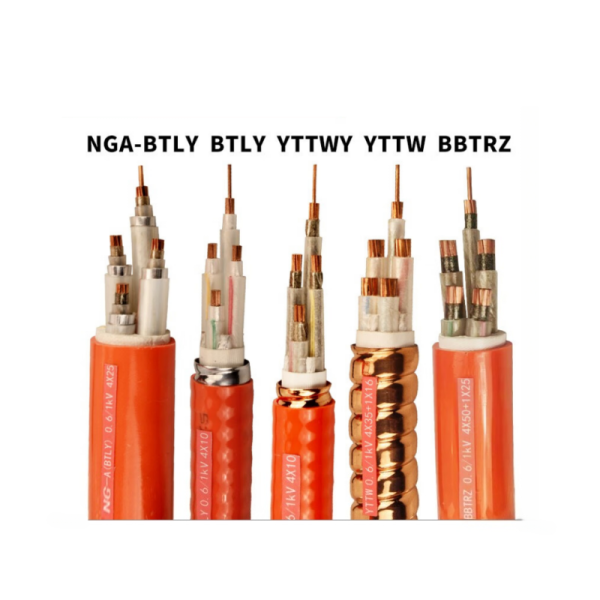

NG-A (BTLY) Cable is a rigid mineral insulated fire-resistant cable with continuous seamless aluminum alloy sheath and compressed magnesium oxide (MgO) insulation, designed for exceptional fire resistance, mechanical durability, and long-term reliability in critical circuits.

Product Specifications
Rated Voltage 0.6 kV, 1 kV
Available Sizes 3*120 mm² + 1*70 mm², 3*150 mm² + 1*70 mm², 3*16 mm² + 1*10 mm², 3*185 mm² + 1*95 mm², 3*50 mm² + 1*25 mm², 3*70 mm² + 1*35 mm², 4*1000 mm² + 1*500 mm², 4*120 mm² + 1*70 mm², 4*150 mm² + 1*70 mm², 4*185 mm² + 1*95 mm², 4*240 mm² + 1*120 mm², 4*25 mm² + 1*16 mm², 4*35 mm² + 1*16 mm², 4*50 mm² + 1*25 mm²
Conductor Material Copper
Insulation Material PVC
Working Temperature 90°C
Jacket PVC
IP Level IP67
Application Industrial, Construction, Building
Rated Current 50 A, 40 A
Type Low Voltage
Place of Origin Hebei, China
Model Number BTLY
Brand Name Minfeng
Product Name Mineral Insulated Cable/MICC Cable
Color Yellow
Voltage 0.6/1 kV
Core 3, 4, 5 Cores
MOQ 100 Meters

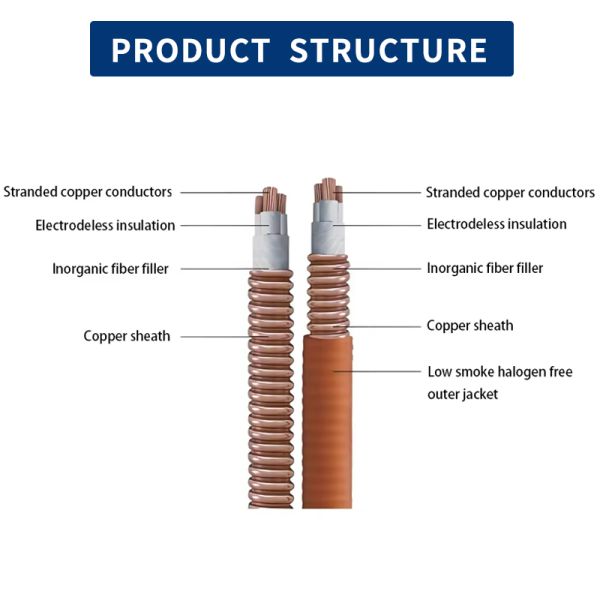

Construction Details
Fire Resistant Copper Conductor Cable Mineral Insulated Cable IP67 0.6/1kV 3 - 5 Cores
Material Annealed copper conductor (compliant with GB/T 3956)
Conductor Structure Multi stranded soft copper wire (≥ 7 pieces)
Insulation Layer Material Synthetic mica tape (temperature resistance ≥ 1000 ℃)
Sheath Material Corrugated copper sheath (thickness ≥ 0.5mm)
Rated Voltage 0.6/1 kV
Working Temperature Long term: 90 ℃; Short circuit: 250 ℃ (≤ 5s)
Insulation Resistance (20 ℃) ≥ 1000 M Ω* km
Applicable Scenarios Fire protection systems, nuclear power plants, high-rise buildings
Fire Resistant Copper Conductor Cable Mineral Insulated Cable IP67 0.6/1kV 3 - 5 Cores
Applications
  • Life Safety Systems: Fire alarms, emergency lighting, evacuation guides
  • Critical Infrastructure: Nuclear plants, tunnels, subways, high-rise buildings
  • Industrial High-Temperature Zones: Steel mills, chemical plants, power generation facilities
Key Advantages
  • Ultra-High Temperature Resistance: Outperforms PVC/XLPE cables in fire scenarios
  • Lightweight Sheath: Aluminum alloy reduces overall weight compared to copper-sheathed MI cables (e.g., BTTZ)
  • Long Lifespan: Mineral insulation prevents aging degradation
  • Eco-Friendly: LSZH option enhances safety for occupants and first responders

NG-A (BTLY) is ideal for projects prioritizing safety, reliability, and compliance with stringent fire protection standards. Custom configurations (conductor size, core count, sheath options) are available. Contact us for technical support or project-specific solutions.
