Specifications
Brand Name :
Minfeng
Model Number :
rubber cable
Place of Origin :
Hebei, China
MOQ :
100
Price :
0.1-5
Payment Terms :
L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
10 Days
Application :
Industrial machinery, power tools, appliances
Outer Diameter :
Varies by core size
Conductor Material :
Copper
Sheath :
Rubber
Cable Type :
Flexible
Color :
Black, Red, Yellow, Blue (varies)
Conductor :
Copper
Voltage :
450/750V
Description
15 mm 16mm² 25mm 3 Core Copper Rubber Welding Cable

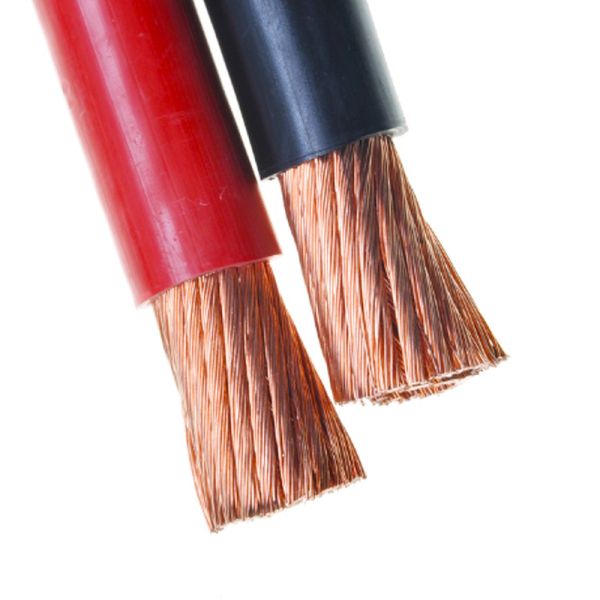

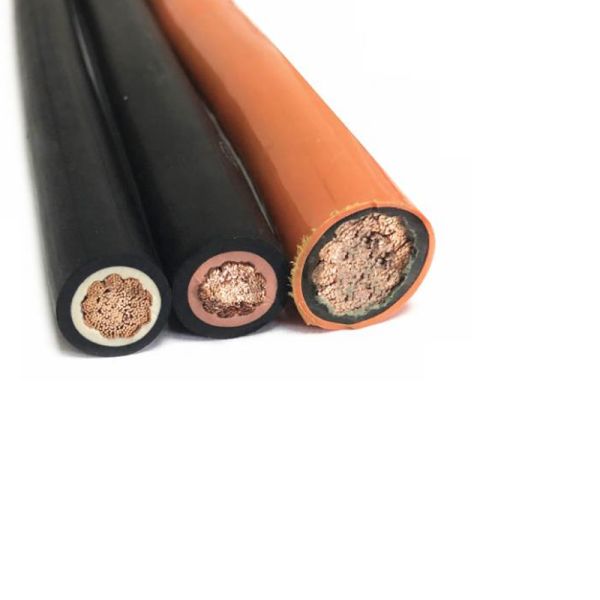

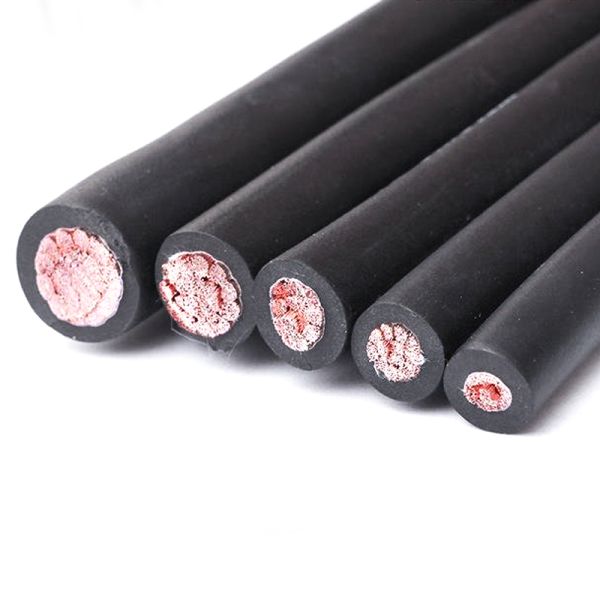

Welding Cable Overview

Rubber-sheathed cable is a type of soft, movable cable featuring multi-strand thin copper wire conductors, with external rubber insulation and rubber sheath protection. This category includes general rubber-sheathed flexible cables, electric welding machine cables, submersible motor cables, radio device cables, and photography light source cables.

  • Suitable for secondary side wiring and connection of welding tongs for electric welding machines with AC voltage not exceeding 200V and pulsating DC peak value of 400V
  • Designed specifically for welding machine secondary side wiring and welding tong connection cables
  • Single-core structure manufactured from multiple strands of flexible conductors
  • Conductive core wrapped with heat-resistant polyester film insulating tape, with outermost layer of rubber insulation and protective sheath
Welding Cable Specifications
Parameter Specification
Core Operating Temperature Not exceeding 65°C
Type YH (Natural rubber sheathed for Welding Cable)
YHF (Chloroprene Rubber or Other Synthetic sheathed Welding Cable)
Application Suitable for welding machines with voltage to ground not exceeding DC 200V and pulsating current value of 400V
Welding Cable Technical Parameters
Nominal Section Area (mm²) No./Diameter of Stranding (mm) Nominal Sheath Thickness (mm) Overall Diameter (mm) Max. Conductor Resistance at 20℃ (Ω/km) Reference Weight
10 322/0.20 1.8 7.5-9.7 1.91-1.95 146-153.51
16 513/0.20 2 9.2-11.5 1.16-1.19 218.9-230.44
25 798/0.20 2 10.5-13 0.758-0.78 316.6-331.15
35 1121/0.20 2 11.5-14.5 0.536-0.552 426-439.87
50 1596/0.20 2.2 13.5-17 0.379-0.39 592.47-610.55
70 2214/0.20 2.4 15-19.5 0.268-0.276 790-817.52
95 2297/0.20 2.6 17-22 0.198-0.204 1066.17-1102.97
120 1702/0.30 2.8 19-24 0.161-0.164 1348.25-1392.55
150 2135/0.30 3 21-27 0.129-0.132 1678.5-1698.72
185 1443/0.40 3.2 22-29 0.106-0.108 1983.8-2020.74
240 1908/0.40 3.8 25-35 0.0801-0.0817 -
15mm 3 Core Copper Rubber Welding Cable Heat Resistant Rubber Sheathed Cable 15mm 3 Core Copper Rubber Welding Cable Heat Resistant Rubber Sheathed Cable
General Rubber Sheathed Flexible Cable
Parameter Specification
Rated Voltage (U0/U) 300/500V; 450/750V
Number of Cores 1, 2, 3, 4, 5, 3+1
Nominal Sectional Area (mm²) 0.3-0.5, 0.75-6, 1.5-6, 1.5-400, 2, 3, 4, 5, 1-95, 1-150, 1-25, 1.5-150
Max. Permissible Operating Temperature 60℃
Ambient Temperature of Installation YC type: -40℃; YCW type: >-15℃
Cable Bending Radius Not less than 5 times the outer diameter of the cable
Application Drive devices, household electric instruments, portable electrical equipment and electromotive tools at AC rated voltage up to 450/750V
General Rubber Cable Types
Name Model Usage Features
Light Weight Rubber Cable YQ, YQW Household appliances, small electric equipment Soft, light and good bending performance; YQW has weather resistance and certain oil resistance
Medium-sized Rubber Cable YZ, YZW Industry, widely used in agricultural electrification YZW has weather resistance and certain oil resistance
Heavy Rubber Cable YC, YCW Port machinery, searchlights, large-scale water conservancy irrigation and drainage stations Good versatility, complete series specifications, good performance and stability; YCW has weather resistance and certain oil resistance
Waterproof Rubber Cable JHS, JHSB Diving motor Good bending performance, can withstand frequent movement
15mm 3 Core Copper Rubber Welding Cable Heat Resistant Rubber Sheathed Cable 15mm 3 Core Copper Rubber Welding Cable Heat Resistant Rubber Sheathed Cable 15mm 3 Core Copper Rubber Welding Cable Heat Resistant Rubber Sheathed Cable
Mining Cable
Parameter Specification
Power Frequency Rated Voltage U/U 0.38/0.66kV, 0.66/1.14kV, 1.9/3.3kV
Max. Permissible Operating Temperature 65℃ for 0.38/0.66kV; 0.66/1.14kV and 90°C for 1.9/3.3kV
Min. Permissible Operating Ambient Temperature -35℃
Bending Radius of Cable Shall not be 6 times less than cable outer diameter
Application Source connection for coal cutter and analogous equipment at rated voltage up to and including 1.9/3.3kV
Mining Cable Types
Type Name Application
UC / MC Rubber sheathed flexible cable for mines cable for coal-cutting mining 0.38/0.66kV Driller connection under the mine shaft
UCP / MCP Screened Rubber-jacketed flexible cable for coal-cutting machine 0.38/0.66kV, 0.66/1.14kV, 1.9/3.3kV Driller connection under the mine shaft
UY / MY Rubber sheathed, movable and flexible cable for mines 0.38/0.66kV Connecting various coal cutters and similar equipment under the mine shaft
UYP / MYP Screened, Rubber sheathed, movable and flexible cable for mines 0.38/0.66kV, 0.66/1.14kV Connecting various coal cutters and similar equipment under the mine shaft
UYQ / MYQ Rubber sheathed light-duty flexible cables for mines 0.3/0.5kV Connecting various coal cutters and similar equipment under the mine shaft
UZ / MZ Electric drill Rubber cables for mines 0.3/0.5kV Power connection of various movable coal cutters under the mine shaft
UZP / MZP Electric drill shielded Rubber cables for mines 0.3/0.5kV Power connection of various movable coal cutters under the mine shaft
15mm 3 Core Copper Rubber Welding Cable Heat Resistant Rubber Sheathed Cable 15mm 3 Core Copper Rubber Welding Cable Heat Resistant Rubber Sheathed Cable
Waterproof Rubber Sheathed Cable
Parameter Specification
Model JHS; JHSB
Rated Voltage 450/750V; 300/500V and below diving applications
Number of Cores 1, 3, 4, 3+1
Nominal Sectional Area (mm²) 1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70
Long-term Allowable Operating Temperature Not more than 65°C; Not more than 85°C (Submersible pump for power transmission)
Features
  • Good electrical insulation performance under long-term water immersion and large water pressure
  • Excellent bending performance, can withstand frequent movement
  • High-density rubber with waterproof function
Application Waterproof rubber sheathed cable for power transmission on diving applications with AC voltage of 500V and below. Suitable for submersible pumps, coal mines, underwater operations, underwater landscape lights, etc.
15mm 3 Core Copper Rubber Welding Cable Heat Resistant Rubber Sheathed Cable 15mm 3 Core Copper Rubber Welding Cable Heat Resistant Rubber Sheathed Cable
Silicone Rubber Cable
Parameter Specification
Executive Standard GB12666-90 for flame retardant and fire resistance test
AC Rated Voltage U0/U 0.6/1KV; U0/U 450/750V (Silicone Rubber Control Cable)
Maximum Working Temperature 180℃
Minimum Ambient Temperature Silicone rubber sheath: Fixed laying -60℃, Non-fixed laying -20℃
Cable Installation and Laying Temperature Not lower than -25℃; Not lower than -20℃ (Silicone Rubber Control Cable)
Allowable Bending Radius Minimum 10 times cable outer diameter; Unarmoured cable minimum 6 times outer diameter (Silicone Rubber Control Cable)
Features Heat-resistant radiation, cold resistance, high temperature resistance, voltage resistance, acid and alkali resistance, corrosive gas resistance, waterproof
Advantages
  • Good thermal stability and stable electrical performance in high temperature, high/low temperature, high cold and corrosive environments
  • Soft structure, convenient laying, outstanding anti-aging performance and long service life
Application
  • Power transmission lines for fixed laying or connecting cables for mobile electrical appliances with AC rated voltage of 0.6/1KV and below
  • Silicone rubber control cable for connecting wire or signal transmission of electrical instruments for mobile or fixed laying with AC rated voltage of 450/750V and below
  • Widely used in metallurgy, electric power, petrochemical, electronics, automobile manufacturing and other industries
Silicone Rubber Cable Models
Silicone Rubber Power Cable Silicone Rubber Control Cable
Model Name Model Name
YGC Silicone rubber insulated sheathed power cable KGG Silicone Rubber Insulated and Sheathed Control Cables
YGCR Silicone rubber insulated sheathed mobile power flexible cable KGGR Silicone Rubber Insulated and Sheathed Control Flexible Cable
YGCP Silicone rubber insulated sheathed copper braided shielded power cable KGGP Silicone rubber insulated and sheathed copper wire braided shielded control cable
YGC22 Silicone rubber insulated sheathed steel tape armored power cable KGGRP Silicone rubber insulated and sheathed copper wire braided shielded control flexible cable
JGG Silicone Rubber Insulation Sheath Installation Wire KGGRP1 Silicone rubber insulated and sheathed tinned braided shielded control flexible cable
JGGR Silicone rubber insulating sheath mobile installation cord KFG Fluoroplastic insulated and silicone rubber sheathed control cable
JGGP Silicone rubber insulated sheathed copper braided shielded installation wire Note: ZR is added before the model of flame retardant silicone rubber cable
JHXG Silicone rubber insulated motor lead wire Copper wire in the conductor core can be tinned
