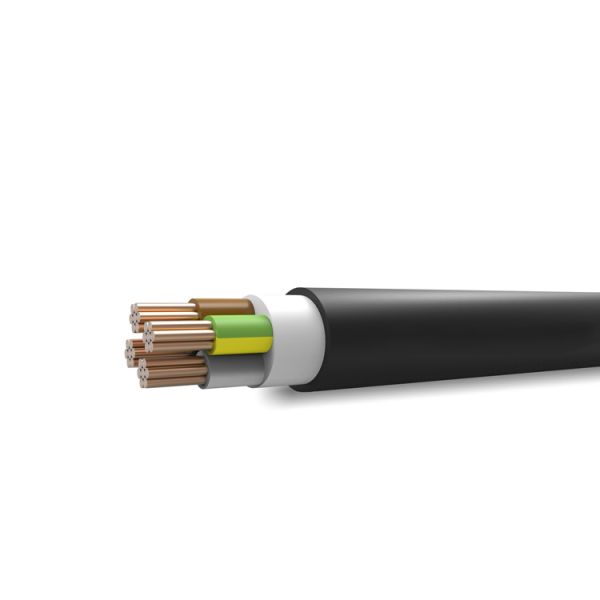

N2XBY 0.6/1KV Copper Conductor XLPE Insulated PVC Sheathed Cable For Industrial Applications
N2XBY 0.6/1KV Copper Conductor XLPE Insulated PVC Sheathed Cable For Industrial Applications
N2XBY 0.6/1KV Copper Conductor XLPE Insulated PVC Sheathed Cable For Industrial Applications
N2XBY 0.6/1KV Copper Conductor XLPE Insulated PVC Sheathed Cable For Industrial Applications
N2XBY 0.6/1KV Copper Conductor XLPE Insulated PVC Sheathed Cable For Industrial Applications
N2XBY 0.6/1KV Copper Conductor XLPE Insulated PVC Sheathed Cable For Industrial Applications
N2XBY 0.6/1KV Copper Conductor XLPE Insulated PVC Sheathed Cable For Industrial Applications
N2XBY 0.6/1KV Copper Conductor XLPE Insulated PVC Sheathed Cable For Industrial Applications
Specifications
Brand Name :
Minfeng
Place of Origin :
Hebei, China
Halogen Free :
Available
Model Number :
N2XBY
Type :
YJV YJV22 YJV32
Supply Ability :
100KM/Week
Core Mark :
Number or Color Strip
Conductor Material :
copper or Al-alloy
MOQ :
100
Certification :
ISO,CE,IEC,TUV,KEMA
Price :
0.1-5
Outer Sheath Color :
Black or as per required
Cores No :
1-5
Flame Retardant :
Available
Insulation :
XLPE
Payment Terms :
L/C,T/T
Delivery Time :
10 Days
Description
N2XBY 0.6/1 KV Cu Conductor XLPE Insulated PVC Sheathed 95mm 4c Power Cable
Product Overview
N2XBY 0.6/1 kV power cable with copper conductors, XLPE insulated and PVC sheathed. Designed for reliable power distribution in various industrial and construction applications.
Key Specifications
Rated Voltage 0.6/1 kV
Conductor Material Copper
Insulation Material XLPE
Jacket Material PVC
Number of Cores 4 Cores
Size Range 1.5-1000mm²
Application Construction & Industrial
Type Low Voltage
Standard HD 603 S1, IEC 60502-1
MOQ 100M
Sample Availability Available
Technical Details
Conductors: Copper, class 1 or 2 according to EN 60228
Insulation: XLPE compound DIX 3
Bedding: Extruded elastomere or plastomere compound or plastic tape
Armour: Two galvanized steel tapes
Sheath: PVC compound DMP 2
Max. Conductor Temperature: 90°C
Max. Short-Circuit Temperature: 250°C
Application
Suitable for installation in earth, ducts, on support brackets, in dry and wet conditions where mechanical damage is not expected and cables are not exposed to mechanical tensile strain. Ideal for urban networks, industrial plants, electric power plants, and other electricity consumers, as well as for connection of control devices in industry and traffic applications.
Four-Core Cable Specifications
Nominal Conductor Cross-Section Shape Max. Resistance at 20°C Current Capacity in Air Current Capacity in Earth Outer Diameter (Approx.) Metal Weight Cable Weight (Approx.)
4x1.5RE/RM12.1243115.257.6330
4x2.5RE/RM7.41324016.196.0386
4x4RE/RM4.610425217.2153.6489
4x6RE/RM3.080536418.4230.4592
4x10RE/RM1.830748619.3384.0841
4x16RE/RM1.1509811221.5614.41162
4x25RE/RM0.72713314525.1960.01671
4x35SM0.52416217427.81344.01847
4x50SM0.38719720632.81920.02741
4x70SM0.26825025437.52688.03662
4x95SM0.19330830541.73648.04821
4x120SM0.15335934845.84608.05903
4x150SM0.12441239251.45760.07290
4x185SM0.099147544456.27104.08815
4x240SM0.075456451762.69216.011194
Product Images
N2XBY 0.6/1KV Copper Conductor XLPE Insulated PVC Sheathed Cable For Industrial Applications N2XBY 0.6/1KV Copper Conductor XLPE Insulated PVC Sheathed Cable For Industrial Applications N2XBY 0.6/1KV Copper Conductor XLPE Insulated PVC Sheathed Cable For Industrial Applications N2XBY 0.6/1KV Copper Conductor XLPE Insulated PVC Sheathed Cable For Industrial Applications
