Low Smoke Halogen Free Flame Retardant XLPE Insulated Shielded Power Cable 3x150/25mm2 for Industrial Power Transmission
Low Smoke Halogen Free Flame Retardant XLPE Insulated Shielded Power Cable 3x150/25mm2 for Industrial Power Transmission
Low Smoke Halogen Free Flame Retardant XLPE Insulated Shielded Power Cable 3x150/25mm2 for Industrial Power Transmission
Low Smoke Halogen Free Flame Retardant XLPE Insulated Shielded Power Cable 3x150/25mm2 for Industrial Power Transmission
Low Smoke Halogen Free Flame Retardant XLPE Insulated Shielded Power Cable 3x150/25mm2 for Industrial Power Transmission
Low Smoke Halogen Free Flame Retardant XLPE Insulated Shielded Power Cable 3x150/25mm2 for Industrial Power Transmission
Specifications
Brand Name :
Minfeng
Model Number :
N2XSEH
Certification :
ISO,CE,IEC,TUV,KEMA
Place of Origin :
Hebei, China
MOQ :
100
Price :
0.1-5
Payment Terms :
L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
10 Days
Sheath :
LSZH
Model Name :
N2XSEH
Core No :
3
Standardscompliance :
IEC, BS, IEEE
Voltagerating :
Up to 35kV
Origin :
Hebei, China
Corporation :
Minfeng Cable Group
Application :
Power transmission and distribution
Description
6/10(12)kV N2XSEH NA2XSEH Low Smoke Halogen Free Flame Retardant XLPE Insulation Shielded Power Cable 3x150/25mm²
Product Overview

Halogen free cable with improved fire characteristics designed for demanding industrial and construction applications.

Rated Voltage 6/10 kV; 12/20 kV; 20/35kV
Size Range 25mm²-1000mm²
Conductor Material Copper
Insulation Material XLPE
Working Temperature 90°C
Jacket LSZH
Application Construction & Industrial
Type Medium Voltage
Core 3 Core
Watertight Conductor and Metallic Screen longitudinally watertight
MOQ 100M
Warranty 1 Year
Applications

For permanent laying in dry and wet spaces over, on, in and under plaster. Suitable for installation in pipes underground or in free air. Ideal for buildings with high occupancy and valuable equipment, including:

  • Industrial plants
  • Hotels
  • Airports
  • Department stores
  • Hospitals
  • Cinemas
Standards & Specifications

Standard: HD 622 S1 DIN VDE 0276 part 622

Nominal Voltage U0/U 6/10 kV; 12/20 kV; 20/35kV
Test Voltage 15 kV; 30 kV; 50 kV

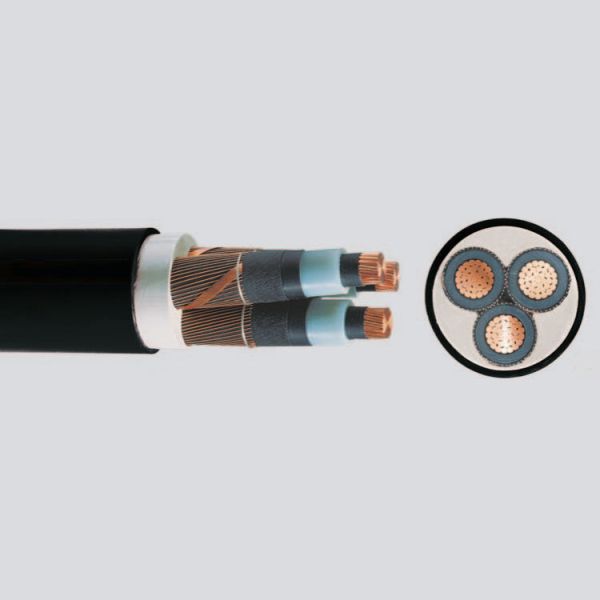

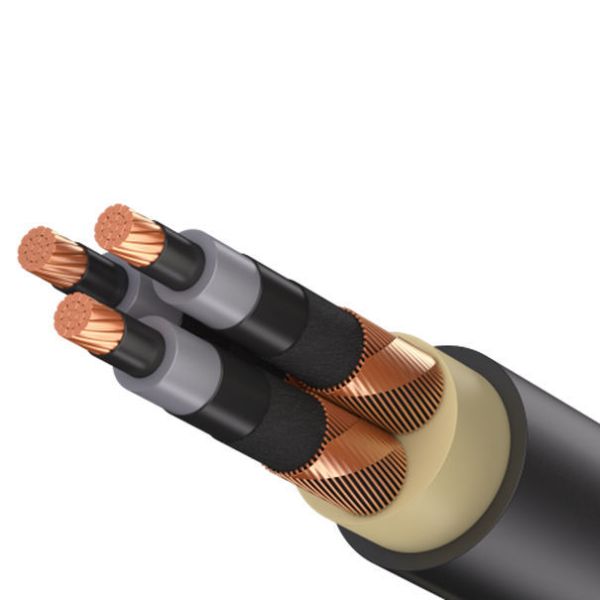

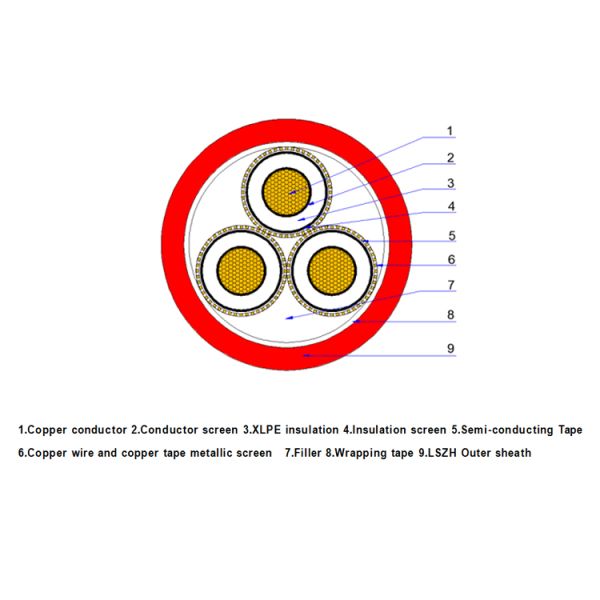

Cable Construction
  1. Conductor: Stranded Copper, Class 2
  2. Conductor Screen: Extruded semi-conductive compound or taping
  3. Insulation: Cross-linked Polyethylene (XLPE)
  4. Insulation Screen: Extruded semi-conductive compound or taping
  5. Screen: Copper wire + copper tape
  6. Filler: LSZH
  7. Outer Sheath: LSZH
Product Images
Low Smoke Halogen Free Flame Retardant XLPE Insulated Shielded Power Cable 3x150/25mm2 for Industrial Power Transmission Low Smoke Halogen Free Flame Retardant XLPE Insulated Shielded Power Cable 3x150/25mm2 for Industrial Power Transmission Low Smoke Halogen Free Flame Retardant XLPE Insulated Shielded Power Cable 3x150/25mm2 for Industrial Power Transmission Low Smoke Halogen Free Flame Retardant XLPE Insulated Shielded Power Cable 3x150/25mm2 for Industrial Power Transmission Low Smoke Halogen Free Flame Retardant XLPE Insulated Shielded Power Cable 3x150/25mm2 for Industrial Power Transmission
