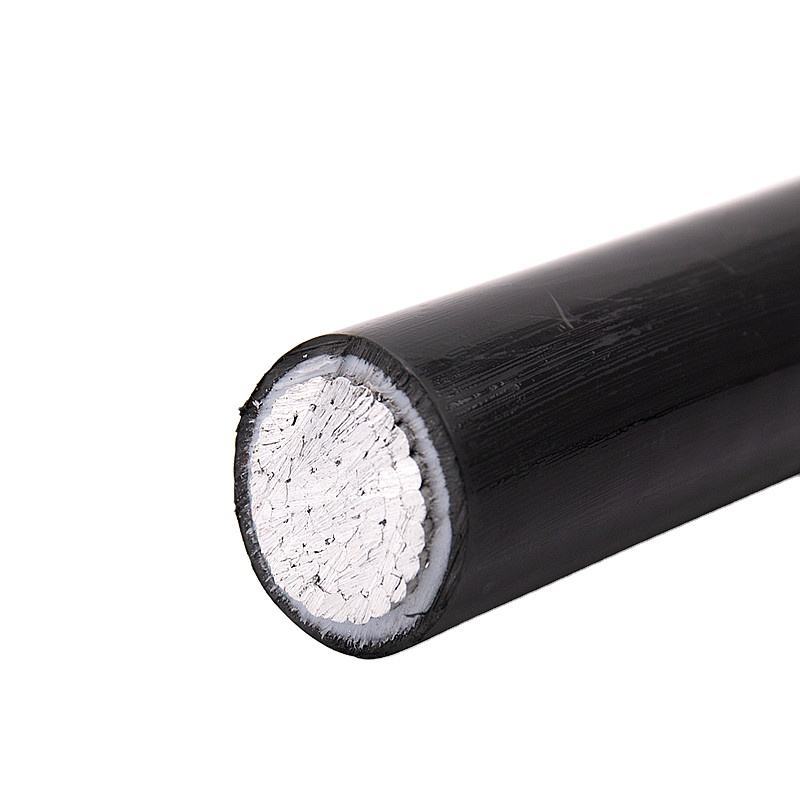

TTU-AL 600V 2KV Aluminum Conductor with PE Insulated and PVC Sheath ICEA S-95-658 NEMA WC 70 90C
TTU-AL 600V 2KV Aluminum Conductor with PE Insulated and PVC Sheath ICEA S-95-658 NEMA WC 70 90C
TTU-AL 600V 2KV Aluminum Conductor with PE Insulated and PVC Sheath ICEA S-95-658 NEMA WC 70 90C
TTU-AL 600V 2KV Aluminum Conductor with PE Insulated and PVC Sheath ICEA S-95-658 NEMA WC 70 90C
TTU-AL 600V 2KV Aluminum Conductor with PE Insulated and PVC Sheath ICEA S-95-658 NEMA WC 70 90C
TTU-AL 600V 2KV Aluminum Conductor with PE Insulated and PVC Sheath ICEA S-95-658 NEMA WC 70 90C
TTU-AL 600V 2KV Aluminum Conductor with PE Insulated and PVC Sheath ICEA S-95-658 NEMA WC 70 90C
TTU-AL 600V 2KV Aluminum Conductor with PE Insulated and PVC Sheath ICEA S-95-658 NEMA WC 70 90C
TTU-AL 600V 2KV Aluminum Conductor with PE Insulated and PVC Sheath ICEA S-95-658 NEMA WC 70 90C
TTU-AL 600V 2KV Aluminum Conductor with PE Insulated and PVC Sheath ICEA S-95-658 NEMA WC 70 90C
Specifications
Core :
1
Specification :
8AWG-1000KCM
Price :
0.1-5
Sheath Mark :
ink Printing or Embossing
Cable Standard :
STM B-3, B-8, B-230, B-800
Voltage :
0.6KV, 2KV
Model Number :
TTU-AL
Sheath :
PVC/LSOH
Delivery Time :
5-8 Days
Brand Name :
Minfeng
Certification :
ISO,CE,IEC,TUV,KEMA
Supply Ability :
100KM/Week
Conductor :
Aluminum
Payment Terms :
L/C,T/T
MOQ :
100m
Packaging Details :
Wooden Drum
Place of Origin :
Hebei, China
Description

Key attributes


Rated Voltage
0.6KV, 2KV
Size
8AWG-1000KCM
Conductor Material
AA-8000 ALUMINUM
Insulation Material
XLPE/PE
Working Temperature
90°C
Jacket
PVC/LSOH
Application
Power Distribution
Type
Low Voltage
Place of Origin
Hebei, China
Model Number
TTU-AL

TTU 600V 2KV Aluminum Conductor with PE Insulated and PVC Sheath ICEA S-95-658. NEMA WC 70.

TTU cable Aluminum

TTU Aluflex
Rated voltage: 2000V
Operating temperature 90°C
Packaging 500 and 1000 m reels
ASTM B-3, B-8, B-230, B-800
Colors: black
TTU-AL 600V 2KV Aluminum Conductor with PE Insulated and PVC Sheath ICEA S-95-658 NEMA WC 70 90C


TTU AL Application:
TTU AL conductors are used in outdoor or directly buried installations for power and lighting circuits in industrial and commercial buildings. This type of conductor can be used in dry and humid places.

STANDARD
ICEA S-95-658. NEMA WC 70.

VOLTAGE
0.6/1 kV

TTU AL Conductors:
Soft bare annealed aluminum AA-8000.

TTU AL INSULATION:
Cross-linked polyethylene (XLPE) insulation, resistant to abrasion, heat and humidity

TTU AL Insulation Jacket:
Outer sheath with polyvinyl chloride (PVC), resistant to moisture, UV rays and flame retardant

Assembly:

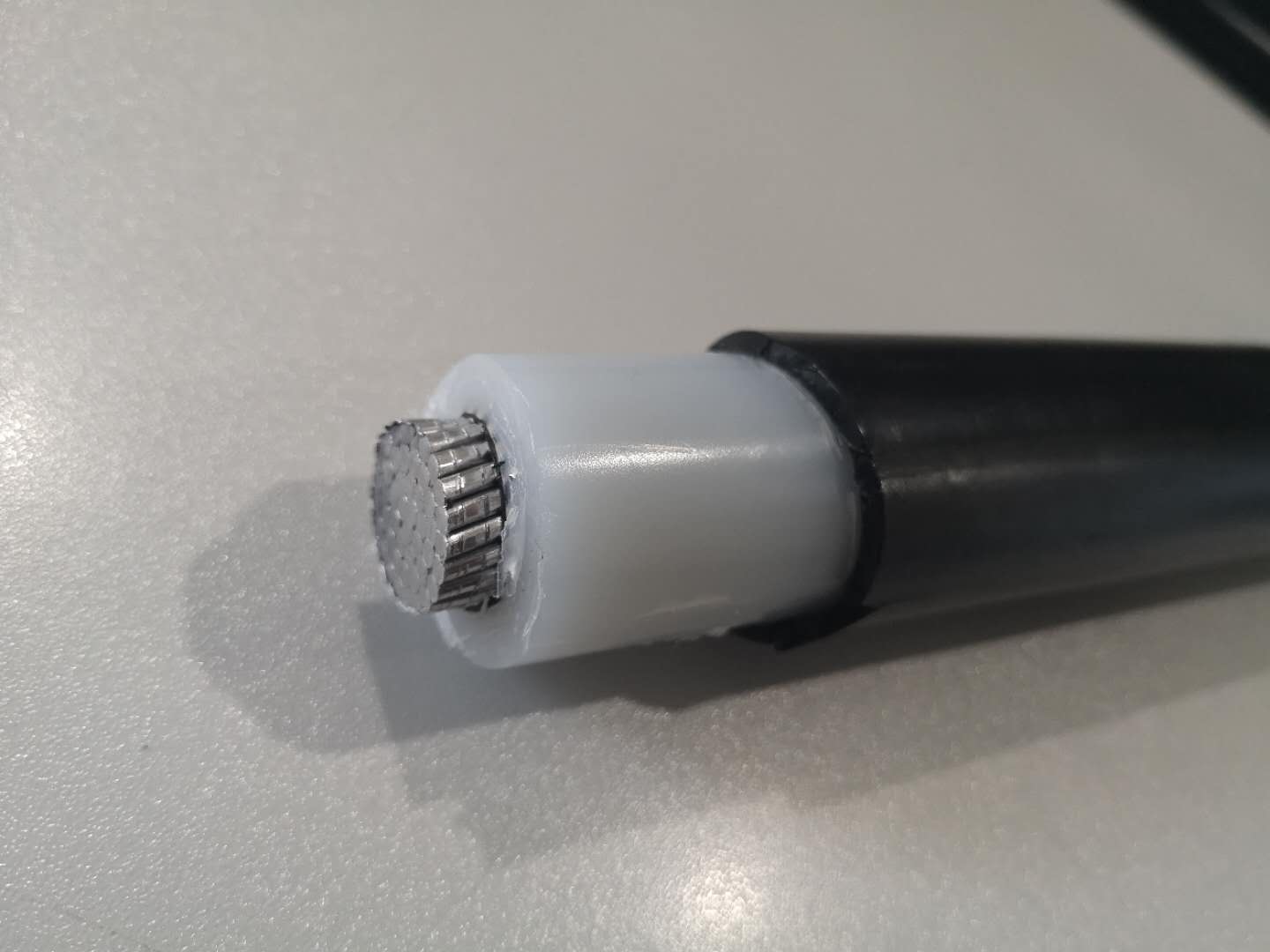

Single conductor of stranded or solid aluminum alloy 8000, XLPE Insulation and PVC Jacket type TTU, several colors are available, surface printed.

TTU AL Conductor Specification
0.6 kV tipo TTU

CONDUCTOR XLPE INSULATION THICKNESS EXTERNAL PVC COVER THICKNESS OUTSIDE DIAMETER TOTAL WEIGHT
CABIBRE SECTION No. Strand
AWG mm2
mm mm mm kg/km
8 8.37 7 1.14 0.38 6.45 48.01
6 13.3 7 1.14 0.76 8.1 78.92
4 21.15 7 1.14 0.76 9.22 107.7
2 33.62 19 1.14 0.76 10.62 150.89
1 42.4 19 1.4 0.76 11.91 189.2
1/0 53.49 19 1.4 1.14 13.61 248.69
2/0 67.43 19 1.4 1.14 14.63 295.82
3/0 85.01 19 1.4 1.14 15.82 354.34
4/0 107.2 19 1.4 1.14 17.18 426.89
250 126.7 37 1.65 1.14 19.35 523.56
300 152 37 1.65 1.65 21.7 656.25
350 177 37 1.65 1.65 22.98 741.03
400 203 37 1.65 1.65 24 827.85
500 253 37 1.65 1.65 26.06 995.92
600 304 61 2.03 1.65 28.7 1187.78
750 380 61 2.03 1.65 31.21 1433.77
1000 507 61 2.03 1.65 36.62 1864.36


2 kV tipo TTU

CONDUCTOR XLPE INSULATION THICKNESS EXTERNAL PVC COVER THICKNESS OUTSIDE DIAMETER TOTAL WEIGHT
CABIBRE SECTION No. Strand
AWG mm2
mm mm mm kg/km
8 8.37 7 1.4 0.38 6.96 53.31
6 13.3 7 1.4 0.76 8.61 85.76
4 21.15 7 1.4 0.76 9.73 115.37
2 33.62 19 1.4 0.76 11.13 159.6
1 42.4 19 1.65 0.76 13.17 220.33
1/0 53.49 19 1.65 1.14 14.11 259.67
2/0 67.43 19 1.65 1.14 15.13 307.54
3/0 85.01 19 1.65 1.14 16.32 366.93
4/0 107.2 19 1.65 1.14 17.68 440.47
250 126.7 37 1.905 1.14 19.86 538.91
300 152 37 1.905 1.65 22.21 673.73
350 177 37 1.905 1.65 23.39 759.38
400 203 37 1.905 1.65 24.51 847.03
500 253 37 1.905 1.65 26.57 1016.61
600 304 61 2.29 1.65 29.21 1210.42
750 380 61 2.29 1.65 31.72 1458.25
1000 507 61 2.29 1.65 37.13 1892.83

• The values indicated in this table may vary according to the tolerances allowed in the conductor manufacturing standards.
