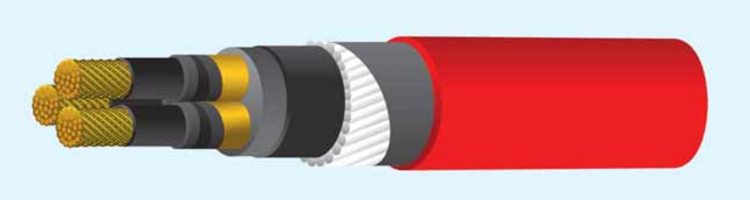

N2XSEYFGbY Cable 3.6/6 KV 6/10 KV 18/30 KV 19/33 KV Copper Core XLPE Insulated Armoured 3-core
N2XSEYFGbY Cable 3.6/6 KV 6/10 KV 18/30 KV 19/33 KV Copper Core XLPE Insulated Armoured 3-core
N2XSEYFGbY Cable 3.6/6 KV 6/10 KV 18/30 KV 19/33 KV Copper Core XLPE Insulated Armoured 3-core
N2XSEYFGbY Cable 3.6/6 KV 6/10 KV 18/30 KV 19/33 KV Copper Core XLPE Insulated Armoured 3-core
Specifications
Brand Name :
Minfeng
Packing :
Wooden Reel
Armouring type :
STA
Application :
for open air installation, for direct burrial underground, in water, in cable ducts, power stations, where mechanical damages to the cable may occur.
Insulating Type :
XPLE cross-linked polyethylene
Delivery Time :
10 Days
Rated Voltage :
3.6/6 KV 6/10 KV 18/30 KV 19/33 KV
Model Number :
N2XSEYFGbY
Price :
0.1-5
Sheath :
PVC
Certification :
ISO,CE,IEC,TUV,KEMA
Payment Terms :
L/C,T/T
MOQ :
100
Number Of Cores :
3
Conductor material :
Copper or Aluminium
Supply Ability :
100KM/Week
Description

Key attributes


Rated Voltage
3.6/6 KV 6/10 KV 18/30 KV 19/33 KV
Size
25-400mm2
Conductor Material
Copper
Insulation Material
XLPE
Working Temperature
90°C
Jacket
PVC
IP Level
/
Application
Industrial
Rated Current
/
Type
Medium Voltage
Place of Origin
Hebei, China
Model Number
N2XSEYFGbY
Brand Name
Minfeng
Product name
XHIO1AV Cable
Standard
IEC 60228, IEC 60502-2 Flame Retardant to IEC 60332-1-2
Conductor
Copper Aluminium
Insulation
XLPE (Cross-Linked Polyethylene)
Nominal voltage
3.6/6 (7.2)kV 6/10 (12)kV 8.7/15 (17.5)kV 12/20 (24)kV 18/30 (36)kV
Product Description
N2XSEYFGbY Cable 3.6/6 KV 6/10 KV 18/30 KV 19/33 KV Copper Core XLPE Insulated Armoured 3-core
N2XSEYFGbY Cable 3.6/6 KV 6/10 KV 18/30 KV 19/33 KV Copper Core XLPE Insulated Armoured 3-core
Application These power armoured cables are designed for open air installation, for direct burrial underground, in water, in cable ducts, power stations, where mechanical damages to the cable may occur. Cable structure - Round bare copper core stranded according to IEC 60228 - Inner semi-conductive layer - Core insulation XLPE - Color code according to HD 308 S2 - Outer semi-conductive layer - Semi-conductive tape - Copper tape screen - Filler - PVC inner sheath - Galvanized steel wire armour (SWA) - Galvanized steel tape - PVC outer sheath (red or black) Technical data - Power cable according to DIN VDE 0276 part 603, HD 620, IEC 60502, BS 6622 - Temperature range max. to +90 °C - Temperature during installation from 0 °C to +70 °C - Short circuit temperature +250 °C (up to 5 seconds) - Nominal voltage Uo/U 3,6/6 kV, 6/10 kV, 6,35/11 kV (dle BS), 18/30 kV, 19/33 kV (dle BS) - Operating voltages 3,6/6 kV = max. 7,2 kV 6/10 kV = max. 12 kV 18/30 kV = max. 36 kV - Test voltage a.c. 3,6/6 kV = 11 kV up to 5 min. 6/10 kV = 21 kV up to 5 min. 18/30 kV = 63 kV up to 5 min. - Minimum bending radius approx. 15 cable diameter
Specification
Number of cores and nominal cross section(mm²)
Overall diameter
appr. (mm)
Cable weight appr.(kg/km)
Conductor DC Resistance at 20℃ (ohm/km)
Current Carrying
Capacity at 30°C
N2XSEYFGbY-3.6/6 KV
In Air
In Ground
3×35
50
4355
0.524
172
154
3×50
53
5095
0.387
205
181
3×70
57.5
6045
0.268
253
220
3×95
61.5
7165
0.193
307
263
3×120
65
8105
0.153
352
298
3×150
68
9645
0.124
397
332
3×185
72
11055
0.0991
453
374
3×240
77
13165
0.0754
529
431
3×300
84.5
15700
0.0601
599
482
N2XSEYFGbY-6/10 KV


3×35
54.5
4860
0.524
172
154
3×50
58
5650
0.387
205
181
3×70
62.5
6670
0.268
253
220
3×95
66
7795
0.193
307
263
3×120
69.5
8765
0.153
352
298
3×150
73
10330
0.124
397
332
3×185
76.5
11775
0.0991
453
374
3×240
81.5
13855
0.0754
529
431
3×300
88
16295
0.0601
599
482
N2XSEYFGbY-8.7/15 KV


3×35
60.5
5570
0.524
172
154
3×50
63.5
6365
0.387
205
181
3×70
67.5
7395
0.268
253
220
3×95
71.5
8555
0.193
307
263
3×120
75
9600
0.153
352
298
3×150
78.5
11195
0.124
397
332
3×185
82
12680
0.0991
453
374
3×240
87
14815
0.0754
529
431
3×300
93.5
17320
0.0601
599
482
N2XSEYFGbY-12/20 KV


3×35
65.5
6215
0.524
172
154
3×50
68.5
7070
0.387
205
181
3×70
73
8145
0.268
253
220
3×95
76.5
9310
0.193
307
263
3×120
80
10385
0.153
352
298
3×150
83.5
12050
0.124
397
332
3×185
87
13525
0.0991
453
374
3×240
92
15700
0.0754
529
431
3×300
98.5
18220
0.0601
599
482
