TGK-SILIKON High Temperature Silicone Wire with Tinned Copper Conductor and 1.1KV 3.7KV 6.6KV Voltage Rating
TGK-SILIKON High Temperature Silicone Wire with Tinned Copper Conductor and 1.1KV 3.7KV 6.6KV Voltage Rating
TGK-SILIKON High Temperature Silicone Wire with Tinned Copper Conductor and 1.1KV 3.7KV 6.6KV Voltage Rating
TGK-SILIKON High Temperature Silicone Wire with Tinned Copper Conductor and 1.1KV 3.7KV 6.6KV Voltage Rating
TGK-SILIKON High Temperature Silicone Wire with Tinned Copper Conductor and 1.1KV 3.7KV 6.6KV Voltage Rating
TGK-SILIKON High Temperature Silicone Wire with Tinned Copper Conductor and 1.1KV 3.7KV 6.6KV Voltage Rating
Specifications
Conductor :
Tinned Copper
Delivery Time :
5-8 Days
Model :
TGK-SILIKON
Standard :
IEC 60228
Certification :
ISO,CE,IEC,TUV,KEMA
Price :
0.1-5
MOQ :
100m
Voltage rating :
1.1KV 3.7KV 6.6KV
Brand Name :
Minfeng
Insulation :
Silicone rubber
Transport Package :
Wooden Steel Drum
Packaging Details :
Wooden Drum
Payment Terms :
L/C,T/T
Model Number :
TGK-SILIKON
Place of Origin :
Hebei, China
Supply Ability :
100KM/Week
Description
1.1 KV 3.7KV 6.6 KV TGK-SILIKON Tinned Copper Silicone Coated Synthetic Fibre Braid Cable High Temperature Silicone Wire
Product Overview
TGK-SILIKON High Temperature Silicone Wire with Tinned Copper Conductor and 1.1KV 3.7KV 6.6KV Voltage Rating
TypeInsulated
Rated Voltage1.1KV/3.7KV/6.6KV
Conductor MaterialTinned Copper
Insulation MaterialSilicone Rubber
Working Temperature-60°C - +180°C
Conductor TypeStranded
ApplicationIndustrial, Building
ShapeRound
Place of OriginHebei, China
Model NumberTGK-SILIKON
Brand NameMinfeng
Product NameGK-SILIKON MV High Temperature Cable
StandardIEC 60228
Applications
Flexible connecting cable for increased ambient temperatures, for transformers, generators and motors. Suitable for installation indoors and in cable ducts for power stations, industry and distribution networks. The halogen-free sheath protection is resistant against transformer oil and fuel oil. Also suited for wiring of rotating machines: motors, alternators, generators, and static motors: transformers, inductors, inverters, choppers for shipbuilding and railway construction, power supply.

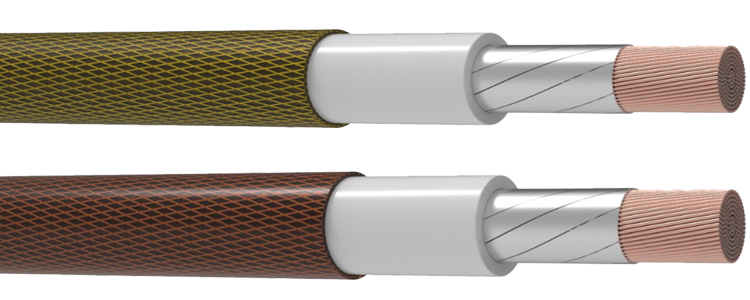

Cable Design
Construction: Tinned copper, stranded, class 5
Separator: semi-conducting tape
Insulation: silicone rubber
Outer Sheath: coated synthetic reinforcing braid
UL approval, 4.2 kV: style 3662
Other working voltages: 1.1 kV, 6.6 kV, 13.8 kV

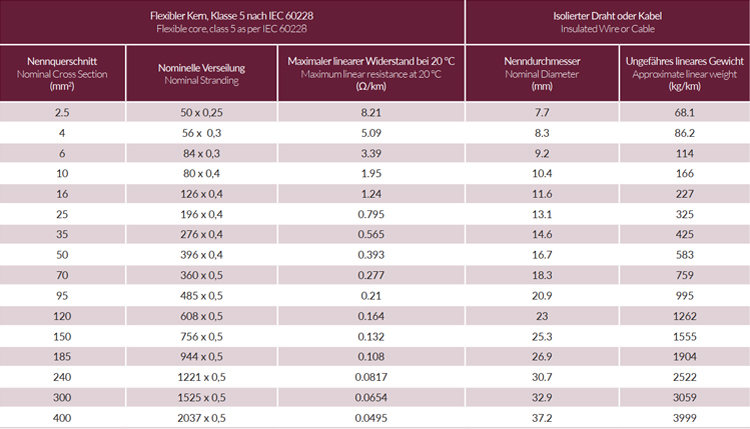

TGK-SILIKON 1.1KV
TGK-SILIKON High Temperature Silicone Wire with Tinned Copper Conductor and 1.1KV 3.7KV 6.6KV Voltage Rating

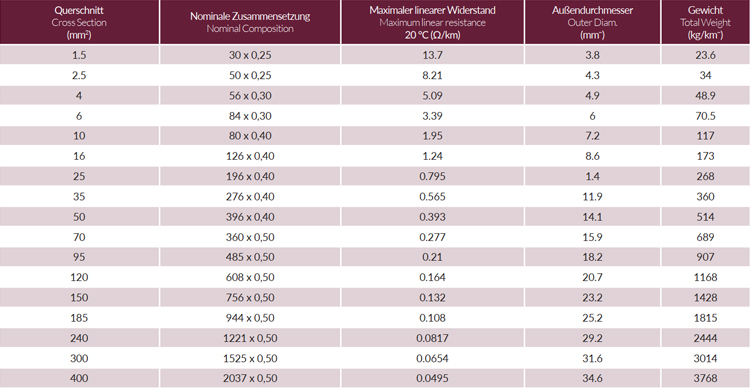

TGK-SILIKON 3.7KV
TGK-SILIKON High Temperature Silicone Wire with Tinned Copper Conductor and 1.1KV 3.7KV 6.6KV Voltage Rating

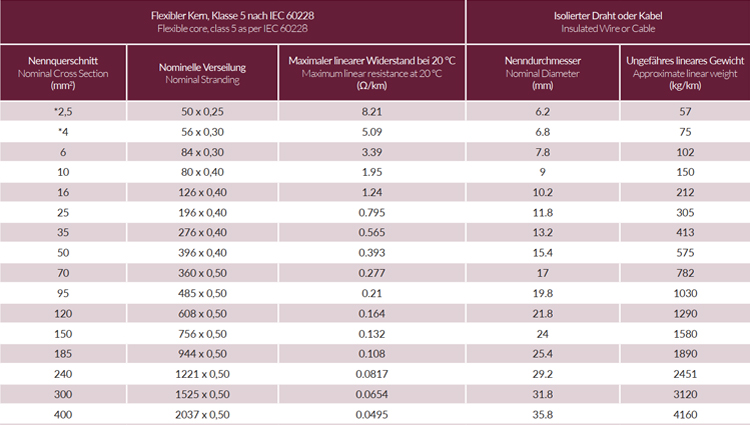

TGK-SILIKON 6.6KV
TGK-SILIKON High Temperature Silicone Wire with Tinned Copper Conductor and 1.1KV 3.7KV 6.6KV Voltage Rating
