Peek Cable Heating Cable with Copper Conductor for Oil Well Heating and 260 °C Working Temperature
Peek Cable Heating Cable with Copper Conductor for Oil Well Heating and 260 °C Working Temperature
Peek Cable Heating Cable with Copper Conductor for Oil Well Heating and 260 °C Working Temperature
Peek Cable Heating Cable with Copper Conductor for Oil Well Heating and 260 °C Working Temperature
Specifications
Marking :
Embossing or Ink Printing
Market :
africa asia
Place of Origin :
Hebei, China
Conductor :
Copper
Packaging Details :
Wooden Drum
Certification :
ISO,CE,IEC,TUV,KEMA
Insulation :
Peek
Price :
0.1-5
Supply Ability :
100KM/Week
Payment Terms :
L/C,T/T
Working Temperature :
260 °C
Brand Name :
Minfeng
MOQ :
100m
Delivery Time :
5-8 Days
Trademark :
Minfeng Cable Group
Model Number :
Peek Cable
Description

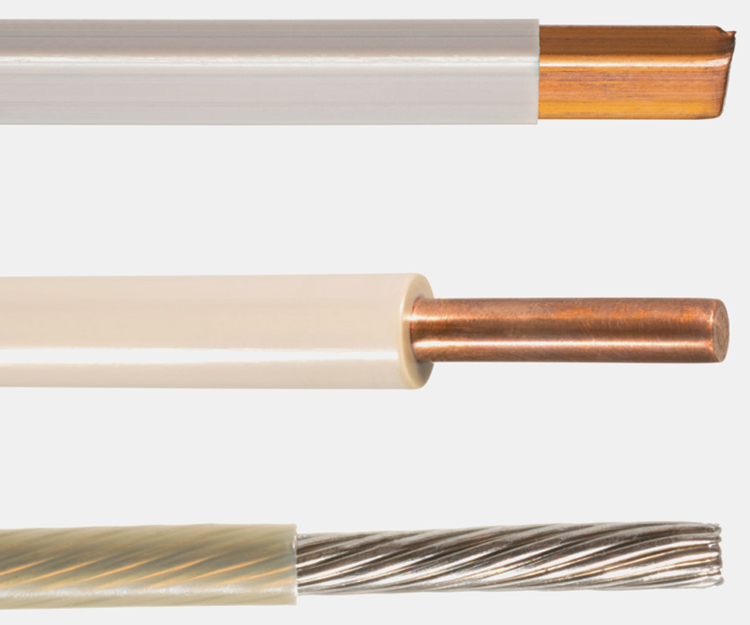

Peek Cable Insulated Wire Continuous Steel Pipe Heating Cable Oil Well Heating Soft Cable Copper Conductor
Product Overview

High-performance PEEK insulated cable designed for demanding industrial heating applications, featuring copper conductors and exceptional thermal resistance.

Peek Cable Heating Cable with Copper Conductor for Oil Well Heating and 260 °C Working Temperature
Technical Specifications
Type Insulated
Rated Voltage /
Diameter 3-40AWG
Conductor Material Copper
Insulation Material PEEK
Working Temperature 260 °C
Conductor Type Solid
Application Industrial, Heating
Shape Round, Coil, Rectangle, Flat
IP Level /
Place of Origin Hebei, China
Model Number Peek Cable
Brand Name Minfeng
Applications
  • Electric motors
  • Solenoids
  • Transformers
  • Electronics
  • Wire and cable systems
Capabilities and Sizing

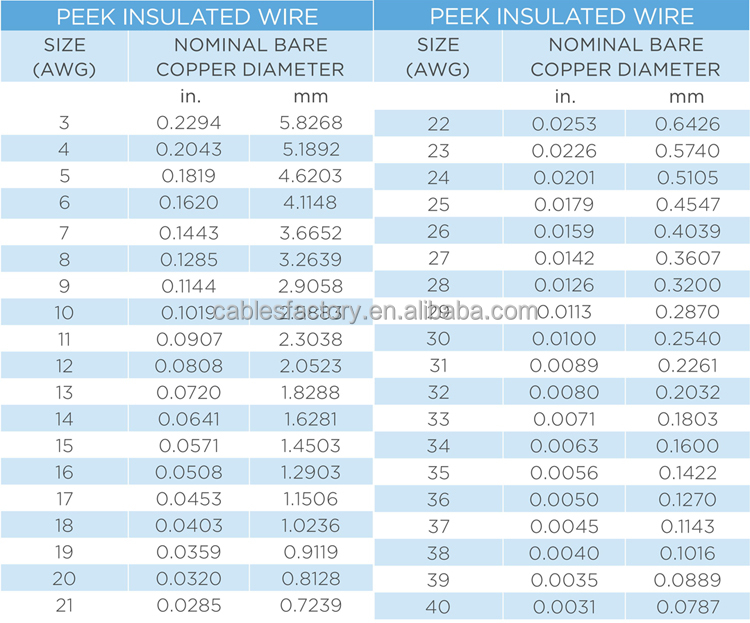

  • Round: #3 - #40 AWG sizes
  • Spool weights up to 200 Lbs
  • Wall thickness range = .001" - .080"
  • Stranded sizes and custom shapes available upon request
  • Alloy: Copper (customer alloys and plating available upon request)
Key Properties
  • PEEK polymer is UL rated up to 260 °C (500 °F)
  • Excellent abrasion resistance
  • Superior dielectric strength
  • Chemical resistance
  • Halogen free
  • Thermal conductivity: .29 W/mK
  • 100% AC spark tested during extrusion
Specification Details
Peek Cable Heating Cable with Copper Conductor for Oil Well Heating and 260 °C Working Temperature
