RE2YKRY 300/500V Armoured Instrument Cable with 1-50 Pairs and Copper Conductor for Industrial Use
RE2YKRY 300/500V Armoured Instrument Cable with 1-50 Pairs and Copper Conductor for Industrial Use
RE2YKRY 300/500V Armoured Instrument Cable with 1-50 Pairs and Copper Conductor for Industrial Use
RE2YKRY 300/500V Armoured Instrument Cable with 1-50 Pairs and Copper Conductor for Industrial Use
RE2YKRY 300/500V Armoured Instrument Cable with 1-50 Pairs and Copper Conductor for Industrial Use
RE2YKRY 300/500V Armoured Instrument Cable with 1-50 Pairs and Copper Conductor for Industrial Use
Specifications
Price :
0.1-5
Temperature Rating :
-40°C to +80°C
Standardscompliance :
BS 5308-1 & IEC 60502
Insulation material :
PE
Place of Origin :
Hebei, China
Sheath Material :
PVC
Certification :
ISO,CE,IEC,TUV,KEMA
MOQ :
100m
Sample :
Available
Supply Ability :
100KM/Week
Delivery Time :
5-8 Days
Corporation :
Minfeng cable group
Application :
Industrial, Electronic Instrumentation
Packaging Details :
Wooden Drum
Model Number :
RE2YKRY
Payment Terms :
L/C,T/T
Brand Name :
Minfeng
Description

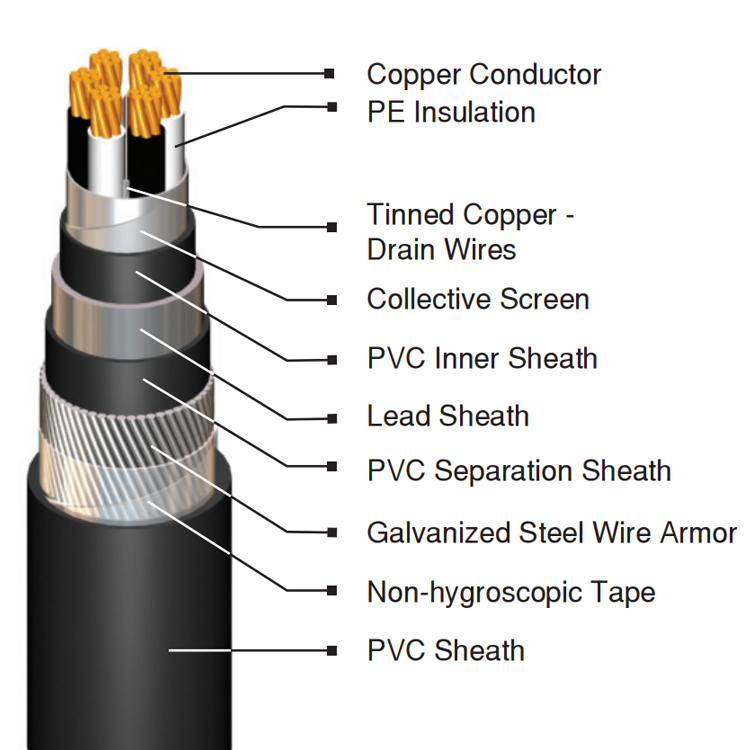

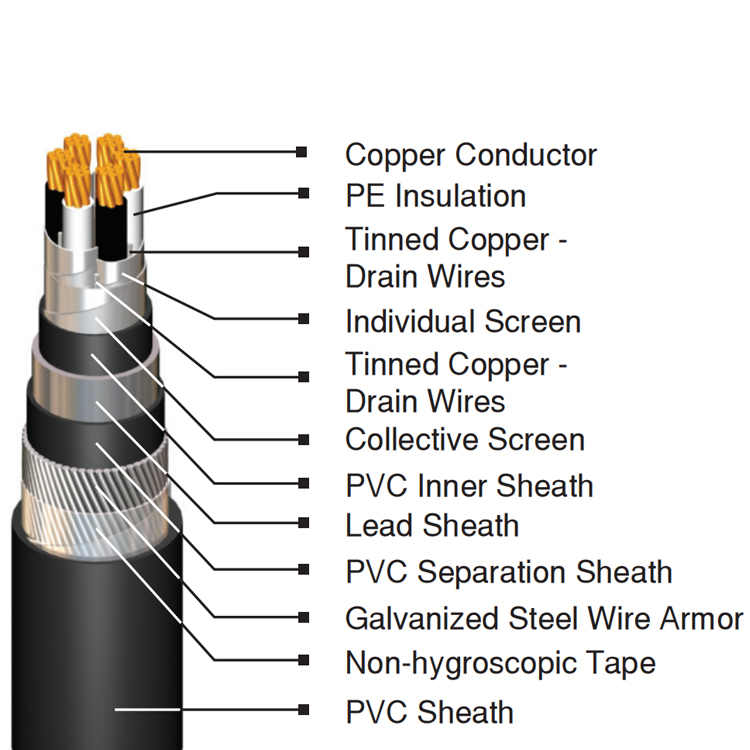

RE2YKRY 300/500V Collective Individual Screen 1-50 Pairs 1.5mm² 2.5mm² SWA Armoured Instrument Cable
Instrumentation cables suitable for industrial control systems in measurement, control, signalling and data system technology applications.
Product Specifications
Rated Voltage 300/500V
Size 1.5mm²/2.5mm²
Shielding Combination
Working Temperature -40°C to +80°C
Conductor Material Copper
Insulation Material PE
Jacket PVC
Application Industrial, Electronic Instrumentation
Length 500 cm, 100 cm, 200 cm, 300 cm
Place of Origin Hebei, China
Model Number RE2YKRY
Standard BS 5308-1 & IEC 60502
RE2YKRY 300/500V Armoured Instrument Cable with 1-50 Pairs and Copper Conductor for Industrial Use RE2YKRY 300/500V Armoured Instrument Cable with 1-50 Pairs and Copper Conductor for Industrial Use
Special Features Available on Request
  • Fire Resistance
  • Oil Resistance
  • UV Resistance
  • Flame Retardant Cat. A, B, C
  • Flame Retardant Non Category
  • Heat Resistance
  • Anti Termite
  • Anti Rodent
  • Low Smoke Zero Halogen
  • Nylon Coated
Technical Specifications

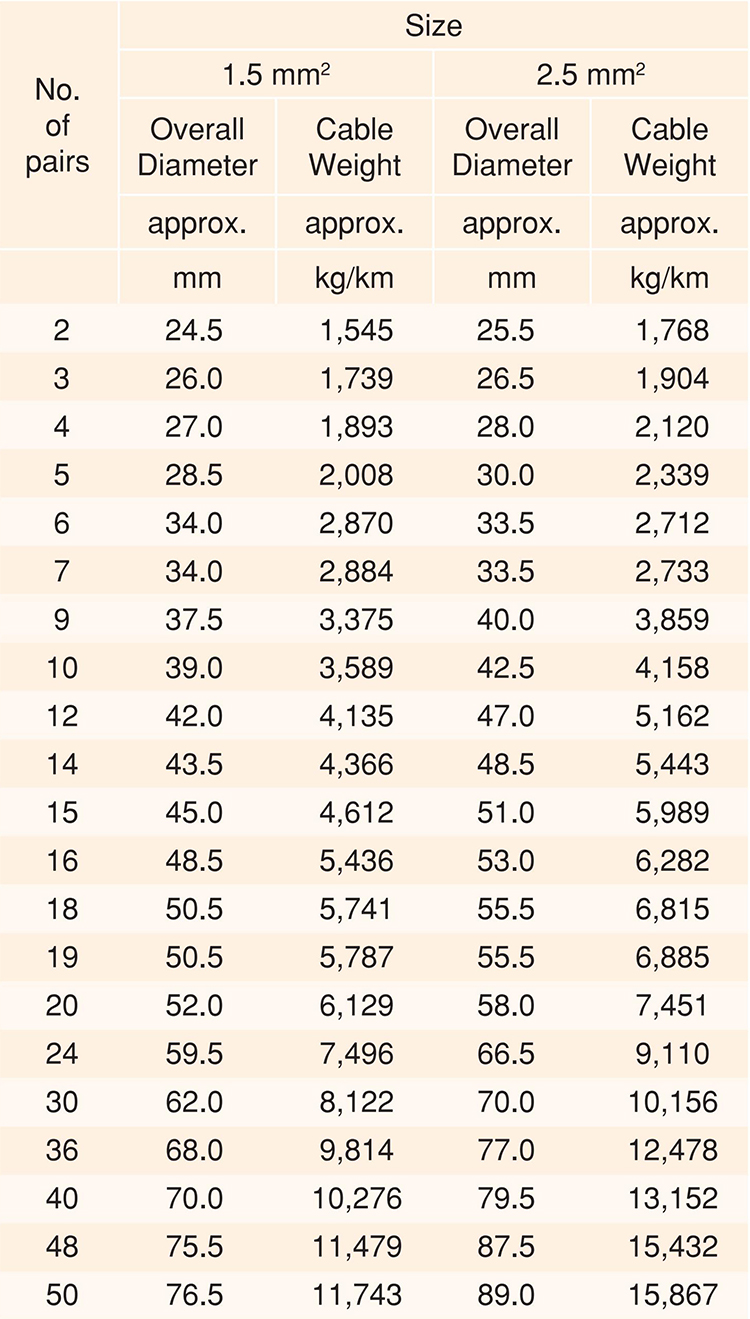

RE2YKRY (1-50) Pairs x 1.5 mm² & (1-50) Pairs x 2.5 mm² 300/500V
RE2YKRY 300/500V Armoured Instrument Cable with 1-50 Pairs and Copper Conductor for Industrial Use

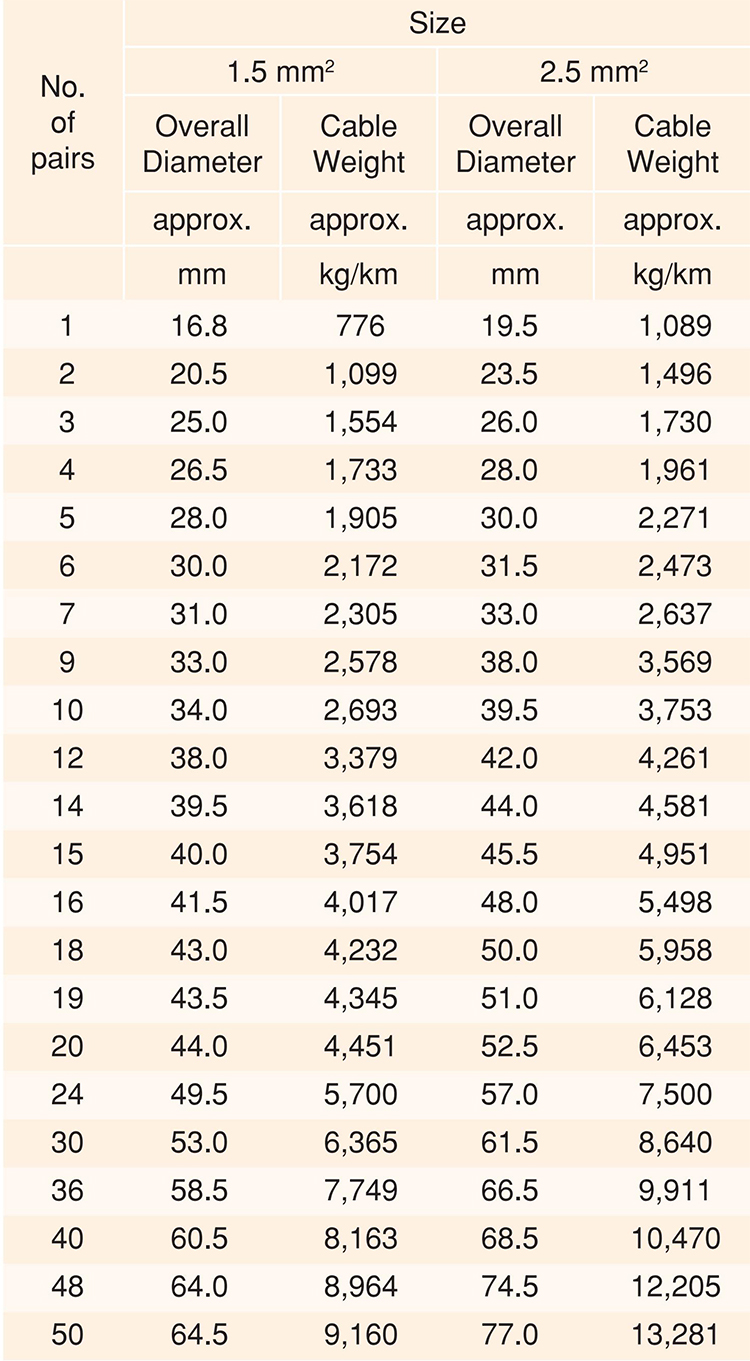

RE2YKRY (2-50) Pairs x 1.5 mm² & (2-50) Pairs x 2.5 mm² 300/500V
RE2YKRY 300/500V Armoured Instrument Cable with 1-50 Pairs and Copper Conductor for Industrial Use
