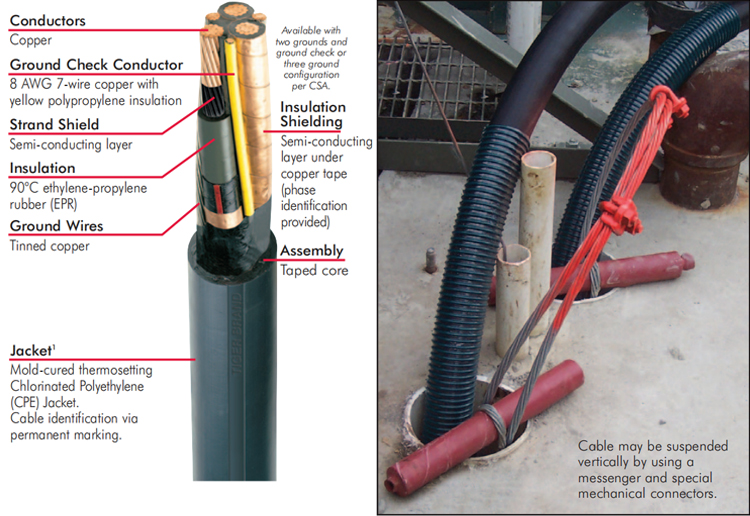

TYPE MP-GC 3/C Mine Power Feeder Cable with 25000-35000V EPR Insulation and CPE Jacket for Industrial Use
TYPE MP-GC 3/C Mine Power Feeder Cable with 25000-35000V EPR Insulation and CPE Jacket for Industrial Use
TYPE MP-GC 3/C Mine Power Feeder Cable with 25000-35000V EPR Insulation and CPE Jacket for Industrial Use
TYPE MP-GC 3/C Mine Power Feeder Cable with 25000-35000V EPR Insulation and CPE Jacket for Industrial Use
Specifications
Brand Name :
Minfeng
Insulation :
EPR
Model Number :
MP-GC 3/C
Certification :
ISO,CE,IEC,TUV,KEMA
Price :
0.1-5
Delivery Time :
5-8 Days
Conductor :
Copper
Place of Origin :
China
Supply Ability :
100KM/Week
Sheath Material :
CPE
Voltage :
25000-35000V
Payment Terms :
L/C,T/T
MOQ :
100m
Standard compliance :
C22.2 #96.1, File LR82346, FT5, -35°C
Application :
Industrial
Description
TYPE MP-GC 3/C MINE POWER FEEDER MOLD-CURED CPE JACKET 25000-35000 VOLTS 100% LEVEL (GROUNDED)
Product Overview

TYPE MP-GC 3/C mining cable designed for high-voltage applications in industrial mining environments. Features mold-cured CPE jacket and 100% insulation level for maximum safety and durability.

Rated Voltage 25000-35000V
Size Range 1/0-500AWG
Conductor Material Copper
Insulation Material EPR
Working Temperature 90°C
Jacket CPE
Application Industrial
Type High Voltage
Place of Origin Hebei, China
Model Number TYPE MP-GC 3/C
Brand Name Minfeng
Standard C22.2 #96.1, File LR82346, FT5, -35°C
Application & Specifications

Connections between units of mine distribution systems not exceeding the rated voltage when installed in duct, conduit or open air and for direct burial in wet and dry locations. Recommended maximum continuous conductor temperature is 90°C.

Cable carries CSA "LR 82346" and MSHA "P-7K-184096" (for black jacket). Tiger® Brand Mining Cable meets or exceeds ICEA Standards S-75-381/NEMA WC-58, up to 25kV, and ASTM B-8 and B-33. 133% insulation level available on request.

Ratings & Approvals

Canadian Standards Association C22.2 #96.1, File LR82346, FT5, -35°C Type MP-GC, MPF up to 35kV. Mine Safety & Health Administration up to 35kV. Pennsylvania Department of Environmental Protection. Insulated Cable Engineers Association S-75-381 up to 25kV.

TYPE MP-GC 3/C Mine Power Feeder Cable with 25000-35000V EPR Insulation and CPE Jacket for Industrial Use
25000 VOLTS • TYPE MP-GC 3/C • EP-CPE JACKET • 100% INSULATION LEVEL
Size AWG Min Wires per Conductor Insulation Thickness (mm) Jacket Thickness (mm) Ground Check Conductor Size AWG² Nominal Outside Dimensions (mm) Approx. Weight (kg/km) Ampacity 30°C Ambient Temp
1186.603.6861.55302210
1/0186.603.6863.75918240
2/0186.604.3866.16688274
3/0186.604.3868.97704315
4/0186.604.3873.58881360
250356.604.3876.09814396
350356.604.3881.712262482
500356.604.3888.815369590
35000 VOLTS • TYPE MP-GC 3/C • EP-CPE JACKET • 100% INSULATION LEVEL
Size AWG Min Wires per Conductor Insulation Thickness (mm) Jacket Thickness (mm) Ground Check Conductor Size AWG² Nominal Outside Dimensions (mm) Approx. Weight (kg/km) Ampacity 30°C Ambient Temp
1/0188.764.3873.47452240
2/0188.764.3876.38256274
3/0188.764.3878.99223315
4/0188.764.3881.910312360
250358.764.3884.711289396
350358.765.1891.814173482
500358.765.1898.917818590
