Specifications
Insulation Material :
XLPE
Jacket :
PVC/LSZH/LSOH
Sheath Color :
Black or red or customization
Brand Name :
Minfeng
Voltage Rating :
0.6/1KV 1-35KV
Cable size :
Varies from 1.5mm² to 1000mm²
Certification :
ISO,CE,IEC,TUV,KEMA
Armoured Type :
STA/SWA
Place of Origin :
China
Productname :
Armoured Cable
Payment Terms :
L/C,T/T
MOQ :
100m
Supply Ability :
100KM/Week
Packaging Details :
Wooden Drum
Delivery Time :
5-8 Days
Number ofcores :
1 to 5 cores
Model Number :
armoured cable
Price :
0.1-5
Operating Temperature :
-15°C to +90°C
Description
0.6/1KV 1-35KV CU/AL/XLPE/PVC SWA/STA Armoured Power Cable for PH
0.6/1KV CU/AL/XLPE/PVC SWA/STA Armoured Power Cable
0.6/1KV to 35KV XLPE Insulated STA/SWA Armoured Power Cable for Philippines

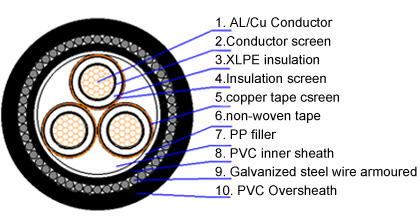

Cable Structure & Specifications
TypeNo. of CoreNominal Cross-section (mm²)
Cu(AL)/XLPE/PVC(PE)11.5-1000
Cu(AL)/XLPE/ATA/PVC(PE)
Cu(AL)/XLPE/AWA/PVC(PE)
Cu(AL)/XLPE/STA/PVC(PE)		2, 3, 4, 51.5-400
Cu(AL)/XLPE/SWA/PVC(PE)
Cu(AL)/XLPE/SWA/ATA/PVC(PE)		3+1, 4+1, 3+22.5-400
Available Cable Types

NYY, NAYY, YVV, NYCY, NYRY, NA2XY, YE3SV, YE2SHSV, NAYCVVY, NA2XY, N2XY, N2XRY Cable

Standard Cross-sectional Areas

25 mm², 35 mm², 50 mm², 70 mm², 95 mm², 120 mm², 150 mm², 185 mm², 240 mm², 300 mm², 400 mm², 500 mm², 630 mm², 800 mm²

Applications

Building construction, Engineering projects, Railway systems, Plant construction, Schools, Hospitals, Underground installations, and various industrial applications.

0.6/1KV to 35KV XLPE Insulated STA/SWA Armoured Power Cable for Philippines
Product Variants
  • XLPE insulated PVC sheathed power cable (XLPE/PVC Cable)
  • XLPE insulated steel tape armored PVC sheathed power cable (XLPE/STA/PVC Cable)
  • XLPE insulated steel wire armored PVC sheathed power cable (XLPE/SWA/PVC Cable)
  • Flame retardant XLPE insulated PVC sheathed power cable (FR/XLPE/PVC Cable)
  • Flame retardant XLPE insulated steel tape armored PVC sheathed power cable (FR/XLPE/STA/PVC Cable)
  • Flame retardant XLPE insulated steel wire armored PVC sheathed power cable (FR/XLPE/SWA/PVC Cable)
1/35KV CU/AL/XLPE Armoured Cable
0.6/1KV to 35KV XLPE Insulated STA/SWA Armoured Power Cable for Philippines0.6/1KV to 35KV XLPE Insulated STA/SWA Armoured Power Cable for Philippines
Technical Specifications
Voltage: 0.6/1kV, 1.8/3KV, 3.6/6KV, 6/10KV, 10KV, 11KV, 15kv, 8.7/15KV, 18/30KV, 19/33KV, 26/35KV
Conductor Area: 2.5 mm² - 600 mm²
Armour Type: Galvanized steel wires/steel tape for 3 core; Stainless steel wire/Steel tape or Aluminium wire/tape for single core
Sheath Material: Polyvinyl chloride (PVC), PE, or HDPE
19/33KV Power Cable Specifications
0.6/1KV to 35KV XLPE Insulated STA/SWA Armoured Power Cable for Philippines
Voltage: 19/33KV
Core: 3
Area: 35-400 mm²
Insulation: XLPE
Armour: SWA/GSW
Jacket: PVC
0.6/1KV to 35KV XLPE Insulated STA/SWA Armoured Power Cable for Philippines
Voltage: 19/33KV
Core: Single
Area: 35-800 mm²
Insulation: XLPE
Armour: AWA
Jacket: PVC/PE
0.6/1KV to 35KV XLPE Insulated STA/SWA Armoured Power Cable for Philippines
Voltage: 19/33KV
Core: Single
Area: 35-800 mm²
Insulation: XLPE
Screen: CWS (Copper Wire Screen)
Jacket: MDPE
11KV / 15KV Power Cable Specifications
0.6/1KV to 35KV XLPE Insulated STA/SWA Armoured Power Cable for Philippines
Voltage: 11KV, 15KV or other
Core: 3 Core
Area: 35-630 mm²
Conductor: Copper/AL/Tinned Copper
Insulation: XLPE
Armour: SWA/GSW
Sheath: PVC/PE
0.6/1KV to 35KV XLPE Insulated STA/SWA Armoured Power Cable for Philippines
Voltage: 11KV, 15KV or other
Core: Single Core
Area: 35-630 mm²
Conductor: Copper/AL/Tinned Copper
Insulation: XLPE
Screen: CWS (Copper Wire Screen)
Sheath: PVC/PE
0.6/1KV to 35KV XLPE Insulated STA/SWA Armoured Power Cable for Philippines
Voltage: 11KV, 15KV or other
Core: Single Core
Area: 35-630 mm²
Conductor: Copper/AL/Tinned Copper
Insulation: XLPE
Armour: AWA
Sheath: PVC/PE
General Specifications
Voltage: 0.6/1KV
Conductor Material: Copper/Aluminum/Tinned Copper
Conductor Flexibility: Stranded class 2
Cores: 1, 2, 3, 4, 5, 3+1, 3+2, 4+1
Armoured Layer: STA/SWA/Galvanized Steel Wires
Conductor Shape: 1.0 mm² - 16 mm² Circular, 25 mm² - 400 mm² Sector-shaped
Insulation: XLPE (Cross-linked Polyethylene)/PVC IEC60502
Sheath: PVC/PE or LSZH
Sheath Color: Black or according to customer requirements
Standard: IEC 60502, BS 7870, GB/T12706 or according to customer requirements
