HMWPE Single Core Cathodic Protection Cable with PVDF Insulation and Tinned Copper Conductor for CP Groundbed Applications (6mm² to 95mm²)
HMWPE Single Core Cathodic Protection Cable with PVDF Insulation and Tinned Copper Conductor for CP Groundbed Applications (6mm² to 95mm²)
HMWPE Single Core Cathodic Protection Cable with PVDF Insulation and Tinned Copper Conductor for CP Groundbed Applications (6mm² to 95mm²)
HMWPE Single Core Cathodic Protection Cable with PVDF Insulation and Tinned Copper Conductor for CP Groundbed Applications (6mm² to 95mm²)
Specifications
Sample :
Available
Brand Name :
Minfeng
Voltage rating :
0.6/1kv
Marking :
Laser Printing
Model Number :
HMWPE Single Core Cathodic Protection Cable
Price :
0.1-5
Temperature Range :
-55°C to +105°C
Payment Terms :
L/C,T/T
Sheath :
HMWPE
Packing Style :
Steel/ Wooden Drum
Packaging Details :
Wooden Drum
Certification :
ISO,CE,IEC,TUV,KEMA
Supply Ability :
100KM/Week
Cable Insulation :
PVDF
Place of Origin :
Hebei, China
MOQ :
100m
Conductor material :
Tinned Copper
Delivery Time :
5-8 Days
Description
HMWPE Single Core Cathodic Protection Cable PVDF Non Armoured - 6mm² to 95mm² for CP Groundbed Applications
HMWPE Single Core Cathodic Protection Cable with PVDF Insulation and Tinned Copper Conductor for CP Groundbed Applications (6mm² to 95mm²)
Product Overview

The single core armoured cable is designed for use in cathodic protection groundbeds where the evolution of chlorine gas is expected. PVDF has excellent resistance to chemical attack. HWMPE Cable is available from 6mm² to 95mm².

Key Specifications
Rated Voltage 0.6/1kV
Size Range 6-95mm²
Conductor Material Tinned Copper
Insulation Material PVDF
Working Temperature -55°C to +105°C
Jacket Material HMWPE
Application Industrial
Type Low Voltage
Standard IEC 60502 BS EN/IEC 60228
Key Features
  • Voltage Rating: 600/1000 Volts
  • Minimum Bending Radius: 10 x Overall Diameter
  • Temperature Range: -55°C to +105°C

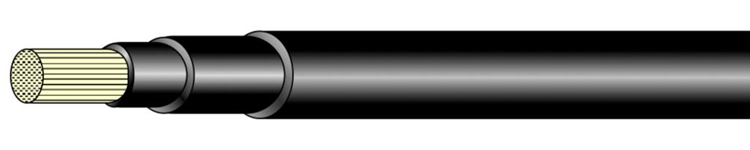

Cable Construction
  • Conductor: Class 2 stranded copper
  • Insulation: Polyvinylidene fluoride (PVDF)
  • Sheath: High-Molecular Weight Polyethylene (HMWPE)
Technical Specifications
Reference Conductor Size (mm²) No Of Cores Stranding (mm) Overall Diameter (mm) Weight (Kg/Km)
HMWPE1X6 6 1 7/1.03 7.2 92
HMWPE1X10 10 1 7/1.34 8.1 138
HMWPE1X16 16 1 7/1.69 9.3 200
HMWPE1X25 25 1 7/2.10 10.4 288
HMWPE1X35 35 1 19/1.51 11.6 385
HMWPE1X50 50 1 19/1.75 13 500
HMWPE1X70 70 1 19/2.12 14.7 715
HMWPE1X95 95 1 19/2.50 16.5 958
