500V Copper Conductor PVC Insulation Instrument Cable and Armoured Instrument Cable for Industrial Use
500V Copper Conductor PVC Insulation Instrument Cable and Armoured Instrument Cable for Industrial Use
500V Copper Conductor PVC Insulation Instrument Cable and Armoured Instrument Cable for Industrial Use
500V Copper Conductor PVC Insulation Instrument Cable and Armoured Instrument Cable for Industrial Use
Specifications
Supply Ability :
100KM/Week
Origin :
Hebei, China
Productname :
Instrument
Model :
Y(ST)(ST)Y PVC/IOSCR/PVC Instrument Cable
Brand Name :
Minfeng
Place of Origin :
China
MOQ :
100m
Conductor :
Copper
Certification :
ISO,CE,IEC,TUV,KEMA
Price :
0.1-5
Payment Terms :
L/C,T/T
Model Number :
Y(ST)(ST)Y PVC/IOSCR/PVC Instrument Cable
Working Temperature :
30℃-70℃
Color :
black or customized
Packaging Details :
Wooden Drum
Mechanical protection :
Armored
Delivery Time :
5-8 Days
Description
Y(ST)(ST)Y PVC/IOSCR/PVC Instrument Cable Y(St)YRY PVC/OSCR/PVC/SWA/PVC Armoured Instrument Cable 500 V
Product Overview

Professional instrumentation cables rated at 500V, designed for industrial applications with comprehensive screening and robust construction.

Key Specifications
Rated Voltage 500V
Conductor Material Copper
Insulation Material PVC
Working Temperature -30℃ to +70℃
Jacket PVC
Application Industrial
Type Low Voltage
Standard EN 50288-7
Brand Minfeng
Origin Hebei, China
Product Description

Application: Instrumentation Cable 500V

Standards: EN 50288-7

Cable Construction
  • Copper conductor stranded wire: 1.0 mm² / 1.5 mm²
  • Insulation: PVC
  • Laying up: Twisted pairs / triads
  • Individual Screen: Polyester (PETP) tape / tinned stranded copper 0.5 mm² / aluminium backed polyester foil / Polyester (PETP) tape
  • Overall Screen: Polyester (PETP) tape / tinned stranded copper 0.5 mm² / aluminium backed polyester foil / Polyester (PETP) tape
  • Outer sheath: PVC - IS: Blue, NIS: Grey
Characteristics

Construction: PVC insulation, PVC outer sheath

Usage: Ambient installation temperature: -5°C to +50°C, Operating temperature: -30°C to +70°C

Fire Retardant: IEC 60332-3-24 (cat C)

Specifications

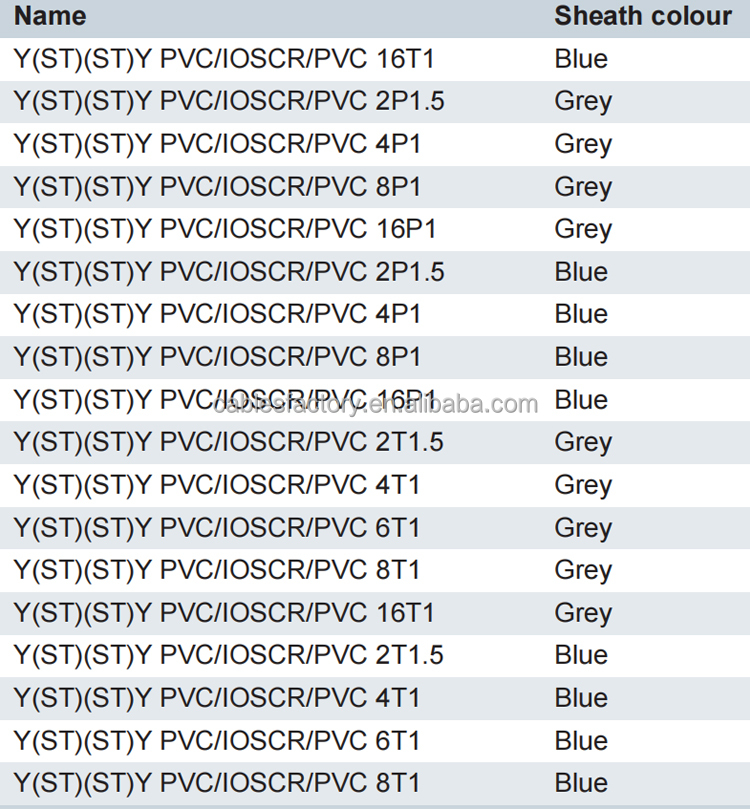

Y(ST)(ST)Y - PVC/IOSCR/PVC
500V Copper Conductor PVC Insulation Instrument Cable and Armoured Instrument Cable for Industrial Use
Y(St)YRY - PVC/OSCR/PVC/SWA/PVC Variants
Model Conductor Size
Y(ST)YRY - PVC/OSCR/PVC/SWA/PVC 1P0.75 0.75 mm²
Y(ST)YRY - PVC/OSCR/PVC/SWA/PVC 2P0.75 0.75 mm²
Y(ST)YRY - PVC/OSCR/PVC/SWA/PVC 4P0.75 0.75 mm²
Y(ST)YRY - PVC/OSCR/PVC/SWA/PVC 6P0.75 0.75 mm²
Y(ST)YRY - PVC/OSCR/PVC/SWA/PVC 8P0.75 0.75 mm²
Y(ST)YRY - PVC/OSCR/PVC/SWA/PVC 12P0.75 0.75 mm²
Y(ST)YRY - PVC/OSCR/PVC/SWA/PVC 16P0.75 0.75 mm²
Y(ST)YRY - PVC/OSCR/PVC/SWA/PVC 24P0.75 0.75 mm²
Y(ST)YRY - PVC/OSCR/PVC/SWA/PVC 1P1.5 1.5 mm²
Y(ST)YRY - PVC/OSCR/PVC/SWA/PVC 2P1.5 1.5 mm²
Y(ST)YRY - PVC/OSCR/PVC/SWA/PVC 4P1.5 1.5 mm²
Y(ST)YRY - PVC/OSCR/PVC/SWA/PVC 6P1.5 1.5 mm²
Y(ST)YRY - PVC/OSCR/PVC/SWA/PVC 8P1.5 1.5 mm²
Y(ST)YRY - PVC/OSCR/PVC/SWA/PVC 12P1.5 1.5 mm²
Y(ST)YRY - PVC/OSCR/PVC/SWA/PVC 16P1.5 1.5 mm²
Y(ST)YRY - PVC/OSCR/PVC/SWA/PVC 24P1.5 1.5 mm²
Y(ST)YRY - PVC/OSCR/PVC/SWA/PVC 1P2.5 2.5 mm²
Y(ST)YRY - PVC/OSCR/PVC/SWA/PVC 2P2.5 2.5 mm²
Y(ST)YRY - PVC/OSCR/PVC/SWA/PVC 4P2.5 2.5 mm²
Y(ST)YRY - PVC/OSCR/PVC/SWA/PVC 6P2.5 2.5 mm²
Y(ST)YRY - PVC/OSCR/PVC/SWA/PVC 8P2.5 2.5 mm²
Y(ST)YRY - PVC/OSCR/PVC/SWA/PVC 12P2.5 2.5 mm²
Y(ST)YRY - PVC/OSCR/PVC/SWA/PVC 16P2.5 2.5 mm²
Y(ST)YRY - PVC/OSCR/PVC/SWA/PVC 24P2.5 2.5 mm²
