0.6/1kV 300/500V 150/250V YHKGSYFoyn PVC Control Screen and Armoued Signal Mining Cable
0.6/1kV 300/500V 150/250V YHKGSYFoyn PVC Control Screen and Armoued Signal Mining Cable
Specifications
Temperature range :
90°C
Voltage rating :
0.6/1kV 300/500V 150/250V
Conductor Material :
Copper.
Price :
0.1-5
Delivery Time :
10 Days
Certification :
ISO,CE,IEC,TUV,KEMA
Payment Terms :
L/C,T/T
Model Number :
Signal Mining Cable
Sheath Shape :
special PVC
Brand Name :
Minfeng
MOQ :
100
Product name :
Signal Mining Cable
Supply Ability :
100KM/Week
Place of Origin :
Hebei, China
Standards :
BS,DIN and ICEA upon request
Insulating Type :
XPLE cross-linked polyethylene
Description
0.6/1kV 300/500V 150/250V YHKGSYFoyn PVC Control Screen and Armoured Signal Mining Cable
Specialized mining cable designed for supplying electrical equipment in strip and open-pit mines, underground mines, and areas with explosion hazards including methane and coal dust.
0.6/1kV 300/500V 150/250V YHKGSYFoyn PVC Control Screen and Armoued Signal Mining Cable
Key Specifications
Rated Voltage0.6/1kV 300/500V 150/250V
Conductor MaterialCopper
Insulation MaterialXLPE Cross-Linked Polyethylene
Working Temperature90°C
Jacket MaterialPVC
ApplicationIndustrial Mining
StandardPN-EN 60228
Size Range10-185mm²
Applications
Designed for electrical equipment operation in strip and open-pit mines, underground mines, and areas with explosion hazards from methane and coal dust. Suitable for installation in shafts and excavation sites with inclination angles up to 90 degrees.

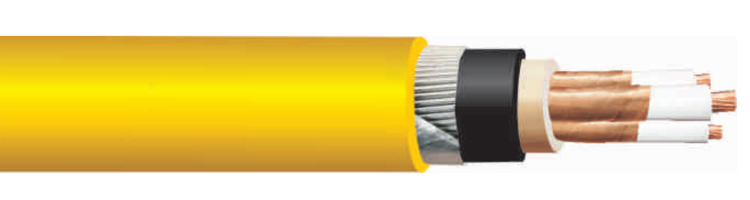

Cable Construction
  • Conductors: Copper, solid class 1 or stranded class 2 according to PN-EN 60228
  • Insulation: XLPE cross-linked polyethylene
  • Individual Conductor Screen: Copper tape
  • Core: Copper wire
  • Stranding Element: Power conductors twisted around core
  • Filling Sheath: Special PVC or non-vulcanised rubber
  • Inner Sheath: Special PVC
  • Armour: Round steel wires
  • Outer Sheath: Special non-flammable PVC preventing flame propagation

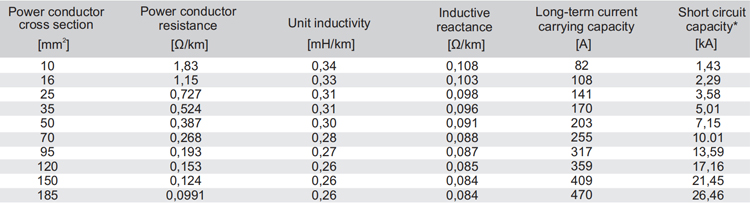

Technical Data
  • Operating Temperature: -30°C to 70°C
  • Maximum Conductor Operating Temperature: 90°C
  • Minimum Installation Temperature: -5°C
  • Operating Voltage: 0.6/1 kV
  • Test Voltage: 3.5 kV
  • Minimum Bending Radius: 12 × Cable Diameter
  • Flame Propagation Resistance: Oxygen index > 29
