SIWO-KUL B20 3.3/4.2KV MV High Temperature Flexible Cables with Rubber Insulation for Industrial Use
SIWO-KUL B20 3.3/4.2KV MV High Temperature Flexible Cables with Rubber Insulation for Industrial Use
SIWO-KUL B20 3.3/4.2KV MV High Temperature Flexible Cables with Rubber Insulation for Industrial Use
SIWO-KUL B20 3.3/4.2KV MV High Temperature Flexible Cables with Rubber Insulation for Industrial Use
SIWO-KUL B20 3.3/4.2KV MV High Temperature Flexible Cables with Rubber Insulation for Industrial Use
SIWO-KUL B20 3.3/4.2KV MV High Temperature Flexible Cables with Rubber Insulation for Industrial Use
SIWO-KUL B20 3.3/4.2KV MV High Temperature Flexible Cables with Rubber Insulation for Industrial Use
SIWO-KUL B20 3.3/4.2KV MV High Temperature Flexible Cables with Rubber Insulation for Industrial Use
SIWO-KUL B20 3.3/4.2KV MV High Temperature Flexible Cables with Rubber Insulation for Industrial Use
SIWO-KUL B20 3.3/4.2KV MV High Temperature Flexible Cables with Rubber Insulation for Industrial Use
Specifications
Price :
0.1-5
Temperature Range :
-35°C to +90°C
Jacket Color :
As Required
MOQ :
100m
Hs Code :
8544492100
Packaging Details :
Wooden Drum
Standard Compliance :
IEC 60228
Payment Terms :
L/C,T/T
Supply Ability :
100KM/Week
Model Number :
SIWO-KUL 3.3kV
Certification :
ISO,CE,IEC,TUV,KEMA
Insulation Material :
Rubber
Model No :
SIWO-KUL 3.3kV
Place of Origin :
China
Rated Voltage :
3.3/4.2KV
Brand Name :
Minfeng
Delivery Time :
5-8 Days
Description
SIWO-KUL B20 3.3/4.2KV MV High Temperature Flexible Cables Silicone Fiber-Glass Cable Tinned Copper Conductor
Product Overview
SIWO-KUL B20 3.3/4.2KV MV High Temperature Flexible Cables with Rubber Insulation for Industrial Use
Rated Voltage 3.3/4.2KV
Size 1.5-300mm²
Conductor Material Copper
Insulation Material Rubber
Working Temperature -35°C to +90°C
Application Industrial
Type Medium Voltage
Place of Origin Hebei, China
Model Number SIWO-KUL 3.3kV
Brand Name Minfeng
Standard IEC 60228

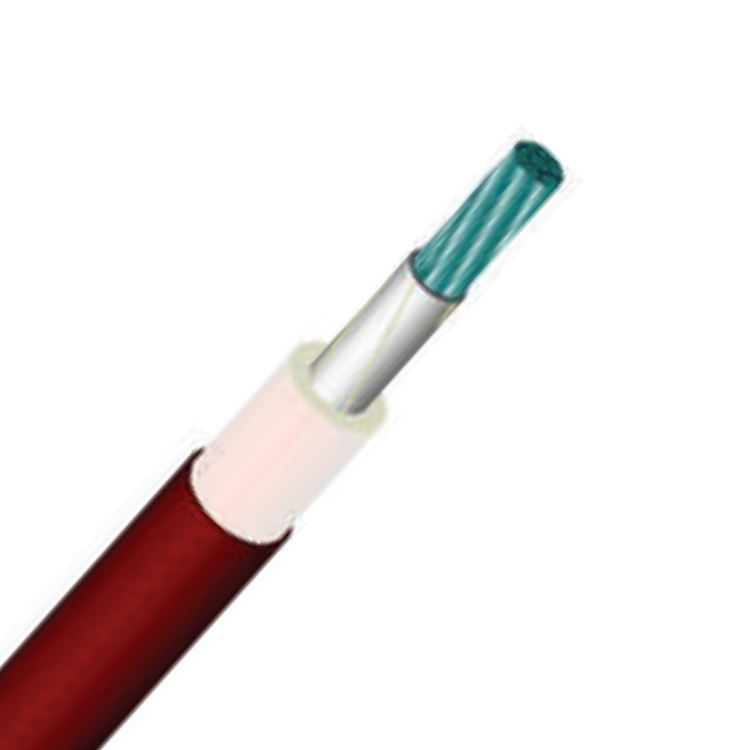

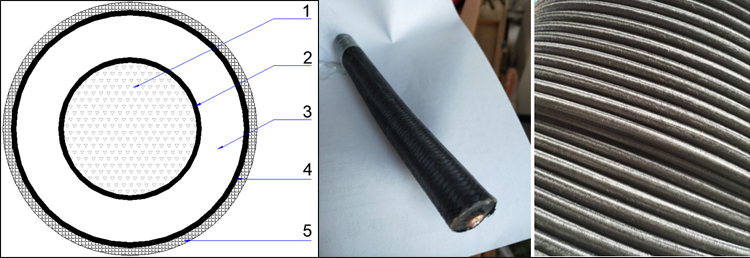

Construction Features
  • Fine tinned copper strands
  • Strands to VDE-0295 Class-5, IEC 60228 Cl-5
  • Silicone rubber core insulation
  • Plastic foil separator
  • Protective synthetic yarn braid, varnished - Reddish/brown
  • Extremely oil & chemical resistant
  • Excellent dielectric strength
  • High abrasion resistance
Technical Specifications
  • Working voltage: 3.3 - 4.2 kV
  • Test voltage: 10 kV
  • Bending radius: 5 x Ø
  • Temperature range: -55°C to +180°C
  • Intermittent: +220°C
  • Short time (1-5 Sec): +350°C
  • Flame retardant: IEC 60332.3
  • Insulation resistance: 200 MΩ x km
Certifications & Approvals
  • F1 as per NF F 16-101
  • Lloyd's Registry of Shipping
  • Bureau Veritas, TYPE Approval
  • DIN VDE-0472
  • UL Style 3641 (AWM)
  • BSS 6195-T5-C-D-E-F
  • Halogen-free to IEC 60754-1
  • Low smoke to IEC 60754-2
  • CE low voltage directive 72/23/EEC & 93/68/EEC
  • ROHS compliant
Additional Specification
SIWO-KUL B20 3.3/4.2KV MV High Temperature Flexible Cables with Rubber Insulation for Industrial Use
