0.6/1kV Low Voltage Reeling Cable with Copper Conductor and ETFE Insulation for Vertical Reeling
0.6/1kV Low Voltage Reeling Cable with Copper Conductor and ETFE Insulation for Vertical Reeling
0.6/1kV Low Voltage Reeling Cable with Copper Conductor and ETFE Insulation for Vertical Reeling
0.6/1kV Low Voltage Reeling Cable with Copper Conductor and ETFE Insulation for Vertical Reeling
Specifications
Model No :
(SMK)-V (N)SHTOEU
Corporation :
Minfeng Cable Group
Conductor :
Flexible Copper
Payment Terms :
L/C,T/T
Temperature Range :
90°C
MOQ :
100
Insulation Material :
ETFE
Certification :
ISO,CE,IEC,TUV,KEMA
Delivery Time :
10 Days
Jacket :
PCP
Brand Name :
Minfeng
Model Number :
(SMK)-V (N)SHTOEU
Price :
0.1-5
Place of Origin :
Hebei, China
Supply Ability :
100KM/Week
Description
(SMK)-V (N)SHTOEU 0.6/1kv Low Voltage Cables for Vertical Reeling
Product Overview

Flexible low voltage reeling cable designed for extreme mechanical stresses, specifically engineered for vertical reeling operations (spreader reeling application).

0.6/1kV Low Voltage Reeling Cable with Copper Conductor and ETFE Insulation for Vertical Reeling
Key Specifications
Rated Voltage 0.6/1kV
Size 1-2.5mm²
Conductor Material Copper
Insulation Material ETFE
Working Temperature 90°C
Jacket PCP
Application Industrial
Type Low Voltage
Standard DIN VDE 0250-814

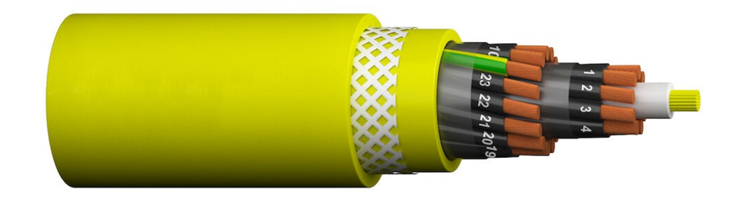

Design Features
  • Conductor: Electrolytic bare copper, very finely stranded class FS
  • Insulation: Special thermoplastic compound providing high stability, excellent insulation resistance and gliding characteristics
  • Core Identification: Black colored insulation with light printed numbers, earth conductor green-yellow
  • Individual Screen: Braid screen made of tinned copper wires with optimized transfer impedance at 30 MHz
  • Core Arrangement: Laid-up in maximum of 3 layers
  • Support Element: Central aramide support element to increase loading capability
  • Sheath System: PROTOFIRM Special with inner sheath (PCP, yellow), anti-torsion braid, and outer abrasion-resistant sheath
Electrical Parameters
Rated Voltage 0.6/1 kV (600/1000V)
Max. Operating Voltage AC 0.7/1.2 kV
Max. Operating Voltage DC 0.9/1.8 kV
AC Test Voltage 3.5 kV (5 Min.)
Data Transmission ASI-Bus, Profibus, CAN-Bus, Industrial Ethernet
Technical Specifications
Number of cores x cross section Conductor diameter max. mm Outer diameter min. mm Outer diameter max. mm Bending radius free moving min. mm Weight (ca.) kg/km Permissible tensile force max. N Conductor resistance at 20°C max. Current carrying capacity (1) Short Circuit Current (conductor)
49x1 1.3 26.6 29.6 148 1250 3200 19.5 18 0.14
12x2,5 2 22 25 125 870 2700 7.98 30 0.36
24x2,5 2 26.2 29.2 146 1300 3600 7.98 30 0.36
30x2,5 2 29.4 32.4 162 1630 4100 7.98 30 0.36
44x2,5 2 34.1 37.1 186 2200 5100 7.98 30 0.36
56x2,5 2 40.1 43.1 216 2960 6000 7.98 30 0.36
Environmental & Mechanical Performance

Chemical Resistance: Oil resistance according to DIN EN 60811-404; weather resistant for unrestricted outdoor/indoor use; verified water resistance in long-term tests

Thermal Performance: Max. conductor temperature 90°C, short circuit temperature 250°C, ambient temperature range -50°C to +80°C

Mechanical Capabilities: High tensile load with support elements, torsional stress ±50°/m, travel speed up to 240 m/min for vertical reeling
