Specifications
Brand Name :
ASTTAR
Certification :
MA
Place of Origin :
China
MOQ :
1PC
Payment Terms :
T/T, Western Union
Supply Ability :
2000PCS/month
Delivery Time :
2-20days on receiving the payment
Packaging Details :
10pc/carton
Measurement range :
0-200 m
Resolution :
0.001m
Protection level :
IP65
Explosion-proof type :
Ex ib I Mb
Weight :
0.17kg
Description

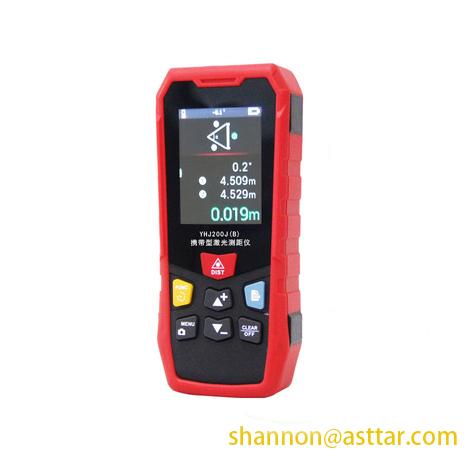

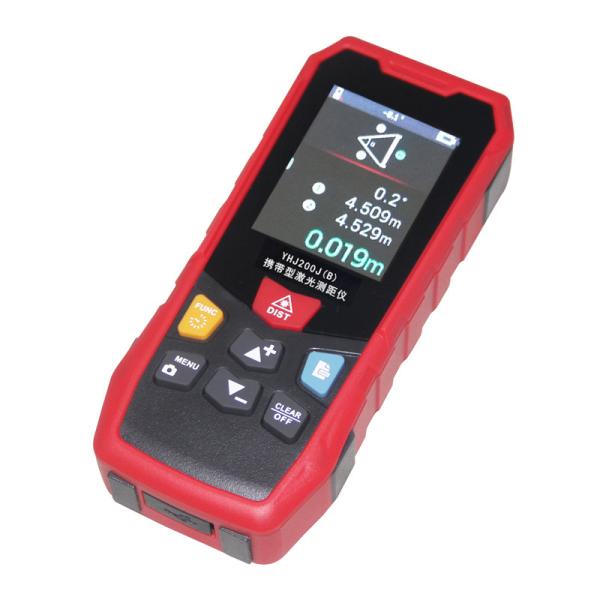

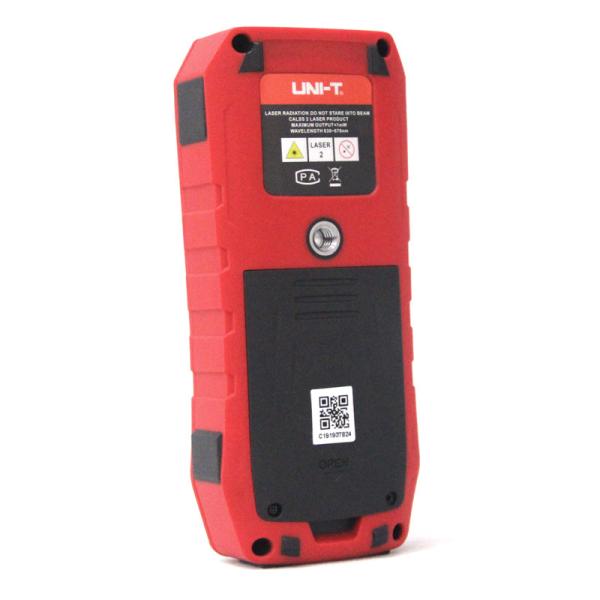

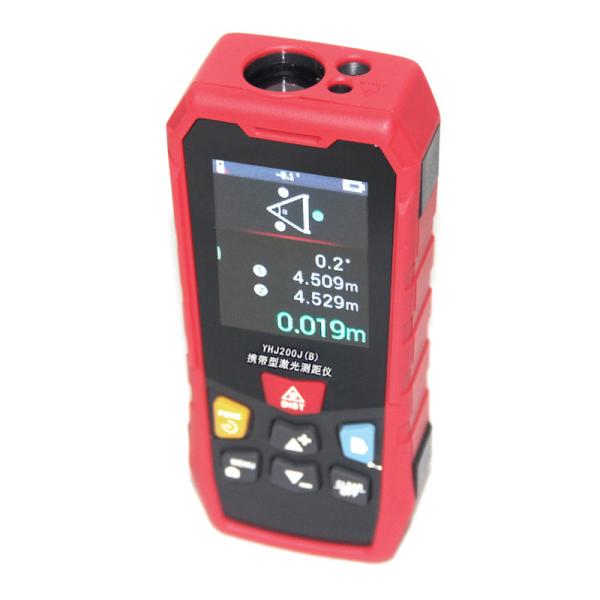

YHJ-200J(B) portable laser distance meter

Features and application

YHJ-200J(B) portable laser distance meter adopts special chip and photoelectric integrated intelligent design. It is a high-precision multi-function distance measuring instrument, which can directly or indirectly measure distance, area and volume. It has the features of accurate measurement and convenient use.

The product is suitable for distance measurement in the working environment with flammable and explosive flammable gas mixture. It can also be widely used for measurement in construction, decoration, property, transportation, fire protection, gardening, urban planning, city appearance management, water conservancy testing, electric power maintenance etc.

Item Technical parameters
Measurement range (0-200)m
Measurement accuracy Range(m) 0-10 10-50 50-200
Error(m) ±0.100 ±0.50 ±1.00
Resolution 0.001m
Laser output power ≤1mW
single measurement
Continuous measurement
Maximum/minimum value
Volume measurement
Area measurement
Pythagorean measurement
Triangle area measurement
Automatic level
Automatic vertical
Historical measurement record 100 groups
Instrument automatically turn off 100s-300s(adjustable)
Laser automatically turn off 5s-120s(adjustable)
Backlight automatically turn off 100s-300s(adjustable)
Electronic horizontal angle
Inclination measurement range ±90.0o
Voice prompt
Power prompt
Battery type 3 AAA batteries
Protection level IP 65
Explosion-proof type Ex ib I Mb
Size 59mm×28mm×137mm
Weight 0.17kg

YHJ-200J(B) 200m portable explosion proof intrinsically safe laser distance meter rangefinder

YHJ-200J(B) 200m portable explosion proof intrinsically safe laser distance meter rangefinder
