Specifications
Brand Name :
ASTTAR
Model Number :
KL6Ex(B)
Certification :
ATEX/CE
Place of Origin :
China
MOQ :
1PC
Payment Terms :
T/T, Western Union
Supply Ability :
50000PCS/year
Delivery Time :
2-20days on receiving the payment
Packaging Details :
9 sets/Carton(including single chargers), 12PCS/carton(only lamps)
Battery capacity :
7.5Ah
illumination :
14000Lux
Weight :
0.7kg
Battery type :
Li-ion rechargeable battery
Color :
red and black
lifetime :
2 years
Protection grade :
IP65
Certificate :
ATEX/CE
Lighting time :
>16 hours
Description

2021 ATEX KL6Ex(B) LED underground mining cap lamp

Product Description

KL6Ex(B) miner's cap lamp adopts Power LED light source, so there is no need to replace the light source during service life. Adopt special intelligent chip, set switch conversion and LED light source control as one, easy to switch the miner’s cap lamp display mode. Miner’s cap lamp is equipped with built-in microprocessor control chip, intelligent management of charge, discharge process, with a variety of protection functions, suitable for all kinds of miner’s cap lamp charging equipment charging. The power supply adopts safe and environmental protection li-ion battery pack, no memory, maintenance free, safe and reliable.

Miner's cap lamp is suitable for use as mobile lighting in an environment where there is a mixture of flammable and explosive combustible gases.

Specifications

Item KL6Ex(B)
Battery style Li-ion
Rated capacity 7.5Ah
Rated voltage 3.7V
Lighting time ≥16h

Max luminance

(1m apart from the lamp)

 When lighting begins >14000lx
After lighting for 11h >12000lx
Main light source current 0.35A
Auxiliary light source current 0.08A
Life of cap lamp 2 years
Charging Voltage DC(6-8)V
Charging time ≤10h
Explosion protection Ex ia I Ma
Protection grade IP65
Dimensions of battery case (128x46x118)mm
Weight 0.7kg

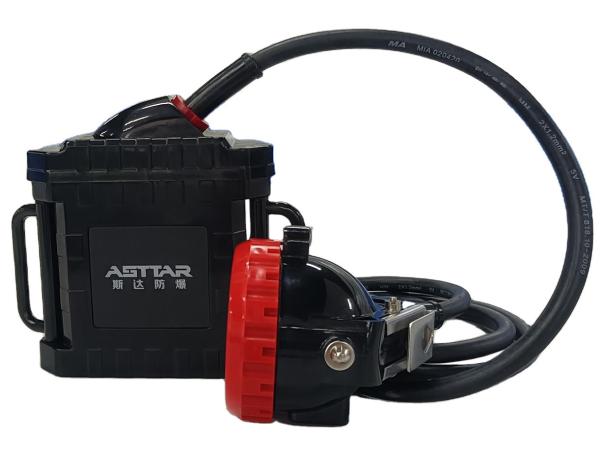

Product pictures

Characteristics

a) The miner’s cap lamp consists of Li-ion batteries and a new generation LED light source.

b) The electronic switch controls the ON/OFF of the main light source and auxiliary light sources.

c) The miner’s cap lamp has multi-functional protection.

d) A charging control circuit is fitted inside the headpiece of the miner’s cap lamp. This circuit enables the miner’s cap lamp to be charged on other manufacturers’ charger.

e) Due to the high efficiency and long life of the LED light source, it is not necessary to replace within the lifetime of miner’s cap lamp.

f) The miner’s cap lamp is compact, light in weight, maintenance free, long in service life,intrinsically safe and environmentally friendly.

Standards

The miner’s cap lamp complies with the following Standards:

EN 60079-0:2012+A11:2013; EN 60079-11:2012; EN 60079-35-1:2011; EN 50303:2000

Features

(a) Short Circuit Protection - In the event of a short circuit in the headpiece or cable, the battery protective plate will cut off the power supply in 15ms. If, for any reason, this protection fails to operate, the current limiting resistance and quick-acting fuse will restrict the current to meet the requirements of the intrinsically safe standard.

(b) Over-Current Protection - In the case of an abnormal current increase, the battery protective plate will cut off the power supply in 15ms. If, for any reason, this protection fails to operate, the current limiting resistance and quick acting fuse will restrict the short circuit to meet the requirements of the intrinsic safety standard.

(c) Battery Protection - in addition to the above, over-current and over-heating protective PTC devices is built into the battery.
