300BPH Automatic 18.9 / 19 / 20 Liter Jar Bucket Bottle Blow Molding Machine
300BPH Automatic 18.9 / 19 / 20 Liter Jar Bucket Bottle Blow Molding Machine
300BPH Automatic 18.9 / 19 / 20 Liter Jar Bucket Bottle Blow Molding Machine
300BPH Automatic 18.9 / 19 / 20 Liter Jar Bucket Bottle Blow Molding Machine
300BPH Automatic 18.9 / 19 / 20 Liter Jar Bucket Bottle Blow Molding Machine
300BPH Automatic 18.9 / 19 / 20 Liter Jar Bucket Bottle Blow Molding Machine
300BPH Automatic 18.9 / 19 / 20 Liter Jar Bucket Bottle Blow Molding Machine
300BPH Automatic 18.9 / 19 / 20 Liter Jar Bucket Bottle Blow Molding Machine
Specifications
Brand Name :
BOTTLING MACHINERY
Model Number :
BL-300G
Certification :
CE/ISO9001-2008
Place of Origin :
Zhangjiagang city Jiangsu provice China
MOQ :
1
Price :
53000-55000USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5sets per month
Delivery Time :
20-35 working days
Packaging Details :
Sea shipping Wooden case
Name :
Full-automatic PET 5 Gallon bottle blow molding machine
Capavity :
180~250bottles per hour(for 5 gallon bottle)
Cavity :
6 cavities
Power :
30KW
Main machine size :
3800*1900*2500mm
Main machine weight :
4000kg
Preform loader size :
2000*1350*2040mm
Preform loader weight :
550kg
Description

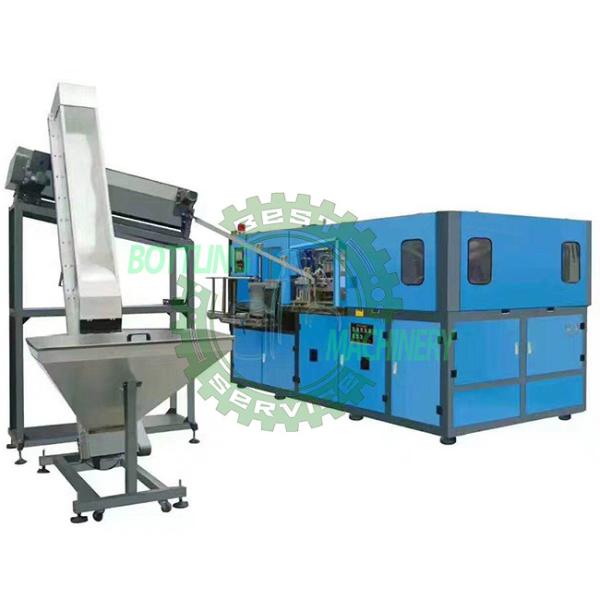

Description of 300BPH automatic 18.9 / 19 / 20 liter jar bucket bottle blow molding machine


Fully automatic bottle blow molding machine is suitable for producing PET plastic 10L to 20L bottles. This machine include one set of blowing machine + one set of preform loader.

Features of 300BPH Full-automatic PET 5 Gallon bottle blow molding machine:
1, Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.
2, The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow.
3, The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4, The machine can be operated in the step-by-step mode and the semi-auto mode.

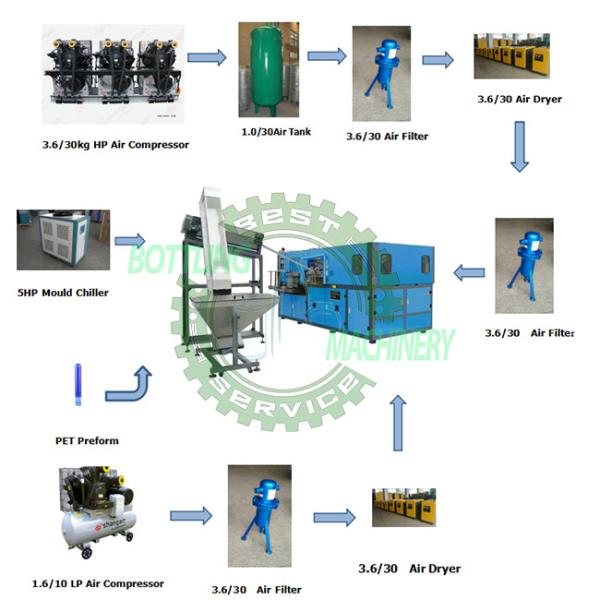

Equipment list of 300BPH Full-automatic PET 5 Gallon bottle blow molding machine:

Items Name of machine Model Size(mm) Qty.
1.1 Automatic 20L PET Bottle Blow Molding Machine BL-300G 3800*1900*2500 1set
1.2 Preform Loader 2000*1350*2550 1set
1.3 Automatic Bottle mould 5Gallon

1 cavity
7075 Aircraft Aluminum

 1set
Auxiliary machines
1.4 HP Air Compressor 3.6m3/min 30Kg 2020*1570*2000 1set
1.5 LP Air Compressor 1.6 m3/min 10Kg 2000*1050*1900 1set
1.6 HP Air dryer 3.6m3/min 30Kg 1050*650*1100 2sets
1.7 HP Air Filters 3.6m3/min 30Kg 750*350*350 3sets
1.8 HP Air Tank 1.0m3/30Kg 800*800*2700 1set
1.9 Mould chiller 5HP 1200*680*1350 1set
1.10 spare parts / / 1suit
Parameters of of 300BPH Full-automatic PET 5 Gallon bottle blow molding machine:
Machine type One set of blowing machine + one set of preform loader
Machine material Carbon steel with coating outside. It can be customized basing on your requirement such as color, Logo etc
Bottle design We can help to design
Bottle mould 1 cavity
Preform weight Will be suggested after finalize all the bottle shape
Machine voltage 380V 3phase 50hz or customize
Container Product material PET
Volume 5Gallon
Theoretical output 180~250pcs for 5gallon plastic bottle
Max.Preform length 520
Preform inner diameter Φ45-65
Moulding

Max. mould plate dimension
(L x W)

 400*360
Max.mould thickness 365
Clamping force 45
Mould opening stroke 220
Machine size and weight Main machine (L x W x H) 3800*1900*2500mm
Main machine weight 4000kg
Preform loader(L x W x H) 2000*1350*2040mm
weight 550kg
Power 30kw
Pneumatic parts Touch Screen Mitsubishi (Japan)
PLC Mitsubishi (Japan)
Blowing Cylinder SMC (Japan)
Valve Tartaric (Taiwan)
Servo Motor Tartaric (Taiwan)
Main Servo Motor Wage (Taiwan)
Switch Omicron (Japan)

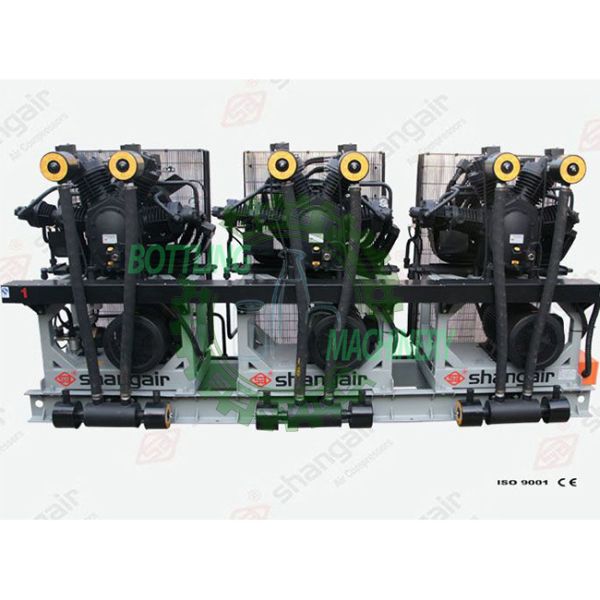

HP Air Compressor:

300BPH Automatic 18.9 / 19 / 20 Liter Jar Bucket Bottle Blow Molding Machine

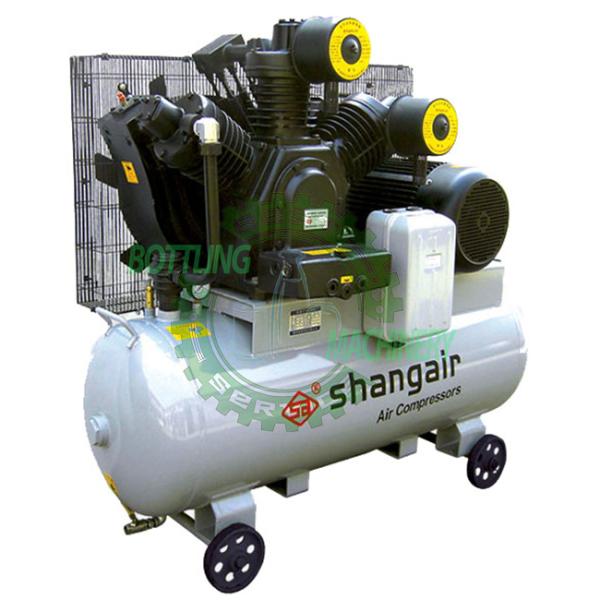

LP Air Compressor:

300BPH Automatic 18.9 / 19 / 20 Liter Jar Bucket Bottle Blow Molding Machine
