Quick Details:

Type: K/N/E/J/T/S/R/B

Place of Origin: Zhejiang, China (Mainland)

Accuracy: I-0.4%t, II-0.75%t, III-1.5%t

Core number: Single / Double

Insulator: 99.6% high purity MgO

Certificate:ISO9001, IATF16949, CE

Application: connecting with thermocouple and instrument machine

Conductor material: NiCr-NiSi, NiCrSi-NiSi, NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan

Sheath material: Inconel600, 0Cr18Ni10Ti, SS304S,SS316L, SS310,SS316,GH3030, GH3039, GH747

Sheath Dia(mm): 0.5mm to 12.7mm :φ0.5,φ1.0, φ1.5(1.6), φ2.0, φ3.0(3.2),φ4.0,φ5.0(4.8),φ6.0(6.4),φ8.0,φ12.7

Type for Sheath Wire Type K:

Different temperature measuring media and service conditions have an impact on the service life and temperature range of armored thermocouples, the data in the table is only recommended data.

Accuracy for Sheath Wire Type K

About this product:

Thermocouples and mineral insulated (MI) cables are two important components in temperature measurement and industrial applications. Here’s a more detailed overview of each:

Thermocouples

• Definition: A thermocouple is a temperature sensor that consists of two dissimilar metal wires joined at one end. When the junction is heated or cooled, it generates a voltage that can be correlated to temperature.
• Operating Principle:
• The thermoelectric effect that allows thermocouples to function is known as the Seebeck effect. When there is a temperature difference between the junction (where the two metals meet) and the other ends of the wires, a small voltage is produced.
• The voltage generated is proportional to the temperature difference and is measured in millivolts.
• Types of Thermocouples:
• Type K: Chromel-Alumel; widely used due to a broad temperature range (-200°C to 1260°C).
• Type J: Iron-Constantan; suitable for temperatures up to 750°C.
• Type T: Copper-Constantan; best for low-temperature measurements (-200°C to 350°C).
• Type N: Nicrosil-Nisil; suitable for high temperatures and more stable than other thermocouples.
• Type S, R, B: Platinum-Rhodium; designed for high-temperature applications, often used in laboratories.

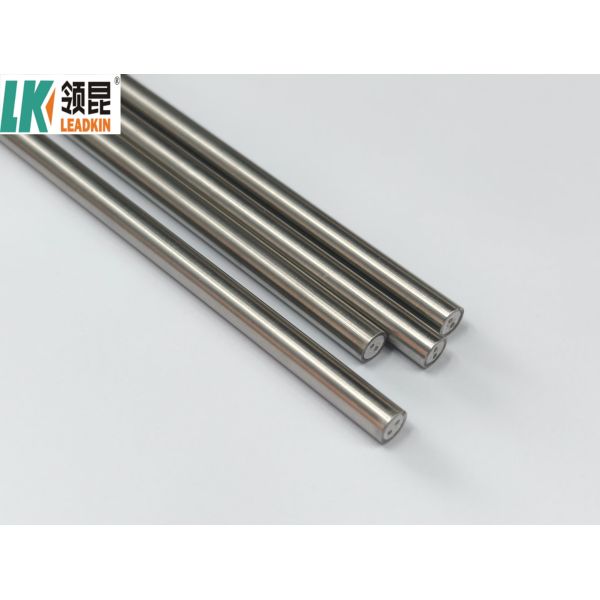

Product Pictures

Company Information:

A. Main Products

products details:

B. Package

We add heat shrink tubing and plastic film to make sure high insulated resistance.

Except marking notes, we also have pass card and test report for every coil cable.

C. Mi cable Production line

We have high - quality professional products, as well as advanced product lines and equipments. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Along the increasing market demands, we continuously satisfy customers by updating products to improve prouduction systems, improve quality.
