Mineral Insulated Thermocouple Cable with High Purity MgO Insulation and Multiple Thermocouple Types for 200℃-1000℃ Range
Mineral Insulated Thermocouple Cable with High Purity MgO Insulation and Multiple Thermocouple Types for 200℃-1000℃ Range
Specifications
Brand Name :
LEADKIN
Model Number :
LK-K
Certification :
ISO9001, IATF16949, CE
Place of Origin :
NINGBO CHINA
MOQ :
50M
Price :
USD 0.5-6.0/M
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1,000,000M/year
Delivery Time :
2-7 working days
Packaging Details :
70*70*8cm Carton
Core :
2,3,4,6
Insulation :
MgO
Warranty :
1 Year
Temperature Range :
200℃-1000℃
Accuracy :
Class I、II、III
Outside Dia :
0.5-12.7mm
Package :
Carton. Pallet
Function :
temperature test
Theory :
Temperature Sensor
Cable Length :
1-5m or Customized
Thermocouple Type :
K/N/E/J/T/S/R/B
Description
Durable Mineral Insulated Thermocouple Cable
High-performance thermocouple cable featuring multiple type options (K, N, E, J, T, S, R, B) specifically designed for harsh industrial environments.
Product Specifications
  • Type: K, N, E, J, T, S, R, B
  • Place of Origin: Zhejiang, China
  • Accuracy: Class I (0.4%t), Class II (0.75%t), Class III (1.5%t)
  • Core Number: 2, 3, 4, 6
  • Insulator: 99.6% high purity MgO
  • Sheath Materials: 0Cr18Ni10Ti, SS304S, SS316L, SS316, Copper
  • Sheath Diameter: φ3.0, φ4.0, φ6.0, φ8.0
  • Certifications: ISO9001, IATF16949, CE
  • Application: Connecting with thermocouple and instrument machines
Temperature Specifications by Sheath Type
Product NameCodeTypeSheath MaterialOutside Dia. (mm)Temperature (°C)
NiCr-NiSi /NiCr-NiAlKKKSS304 SS3160.5-1.0400




1.5-3.2600




4.0-8.0800



SS310 Inconel6000.5-1.0500




1.5-3.2800




4.0-6.4900




8.0-12.71000
NiCrSi-NiSiNKNSS304 SS3160.5-1.0400




1.5-3.2600




4.0-8.0800



SS310 Inconel6000.5-1.0500




1.5-3.2800




4.0-6.4900




8.0-12.71000
NiCr-KonstantanEKESS304 SS3160.5-1.0400




1.5-3.2600




4.0-8.0800
Fe-KonstantanJKJSS304 SS3160.5-1.0400




1.5-3.2600




4.0-8.0800
Cu-KonstantanTKTSS304 SS3160.5-1.0400




1.5-3.2600




4.0-8.0800
RhPt10-PhSKSInconel6006.0-12.71100
Different temperature measuring media and service conditions have an impact on the service life and temperature range of armored thermocouples. The data in the table is recommended data only.
Accuracy Specifications
TypeClass I AccuracyClass I Temp. RangeClass II AccuracyClass II Temp. Range
K±1.5℃-40~375℃±2.5℃-40~375℃

±0.4%375℃-1000℃±0.75%375℃-1000℃
N±1.5℃-40~375℃±2.5℃-40~375℃

±0.4%375℃-1000℃±0.75%375℃-1000℃
E±1.5℃-40~375℃±2.5℃-40~375℃

±0.4%375℃-800℃±0.75%375℃-800℃
J±1.5℃-40~375℃±2.5℃-40~375℃

±0.4%375℃-800℃±0.75%375℃-800℃
T±0.5℃-40~125℃±1.0℃-40~125℃

±0.4%125℃-350℃±0.75%125℃-350℃
S±1.0℃0-1100℃±1.5℃0-1100℃
Product Features
  • Available in sizes from 0.5mm to 4.0mm with temperature measurement up to 1200°C
  • Conductor options: solid or stranded based on application requirements
  • Mineral insulation provides excellent electrical insulation and mechanical protection
  • Stainless steel sheath offers superior corrosion and high-temperature resistance
  • Multiple connector types available: screw, plug, and socket
  • Highly reliable and accurate for industrial applications including chemical processing, food processing
Mineral Insulated cables feature conductors enclosed by a metal jacket and insulated with hard-packed Magnesium Oxide (MgO). This construction provides high-temperature capability, exceptional electrical isolation, and physical protection for conductors in harsh environments.
Construction Details
  • Copper or thermocouple wires inside copper, stainless steel, or Inconel sheath
  • Magnesium oxide insulation resists oxidation and ionizing radiation
  • Chemically and physically stable at high temperatures
  • Available with 1, 2, or 3 pairs of conductors in various configurations
  • Common applications: heat treating metals, incinerators, sintering, ceramic firing, furnaces, and energy plants
Product Images

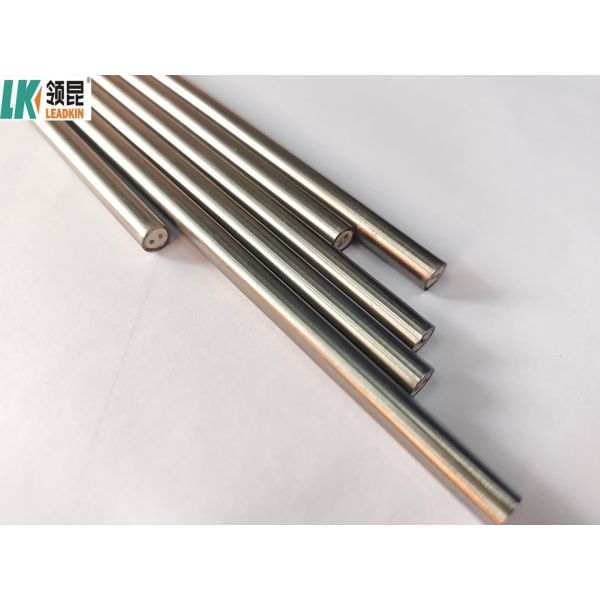

Mineral Insulated Thermocouple Cable with High Purity MgO Insulation and Multiple Thermocouple Types for 200℃-1000℃ Range
Company Overview
Main Products
Mineral Insulated Thermocouple Cable with High Purity MgO Insulation and Multiple Thermocouple Types for 200℃-1000℃ Range Mineral Insulated Thermocouple Cable with High Purity MgO Insulation and Multiple Thermocouple Types for 200℃-1000℃ Range
Packaging
We add heat shrink tubing and plastic film to ensure high insulated resistance. Each coil cable includes marking notes, pass card, and test report.
Mineral Insulated Thermocouple Cable with High Purity MgO Insulation and Multiple Thermocouple Types for 200℃-1000℃ Range
Production Capabilities
We maintain high-quality professional products with advanced production lines and equipment. All products comply with international quality standards and are appreciated in global markets.
Support & Services
Our Mineral Insulated Thermocouple Cables provide accurate temperature measurements in high-temperature environments. We offer comprehensive technical support including:
  • Selection guidance for thermocouple type, sheath material, and insulation
  • Assistance with cable installation and maintenance
  • Troubleshooting and problem-solving
  • Repair and warranty services
Ordering Process
  1. Accurate quotation provided
  2. Confirmation of price, trade terms, lead time, and payment terms
  3. Proforma Invoice with official seal
  4. Customer arranges deposit payment
  5. Production updates with photos
  6. Balance payment and shipment
  7. Tracking information provided
  8. Quality feedback and continuous improvement
