Durable Type S Thermocouple Cable with 200℃-1000℃ Temperature Range and Class I/II/III Accuracy for Harsh Industrial Environments
Durable Type S Thermocouple Cable with 200℃-1000℃ Temperature Range and Class I/II/III Accuracy for Harsh Industrial Environments
Specifications
Brand Name :
LEADKIN
Model Number :
LK-K
Certification :
ISO9001, IATF16949, CE
Place of Origin :
NINGBO CHINA
MOQ :
50M
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1,000,000M/year
Delivery Time :
2-7 working days
Packaging Details :
70*70*8cm Carton
Core :
2,3,4,6
Insulation :
MgO
Warranty :
1 Year
Temperature Range :
200℃-1000℃
Accuracy :
Class I、II、III
Outside Dia :
0.5-12.7mm
Package :
Carton. Pallet
Function :
temperature test
Theory :
Temperature Sensor
Cable Length :
1-5m or Customized
Thermocouple Type :
K/N/E/J/T/S/R/B
Description

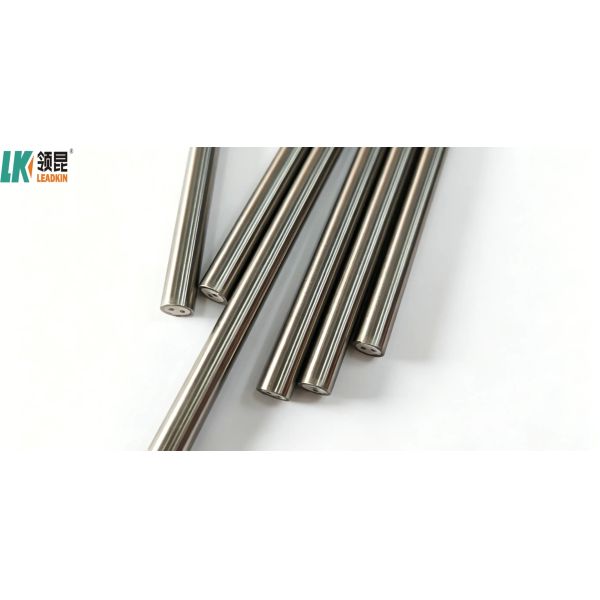

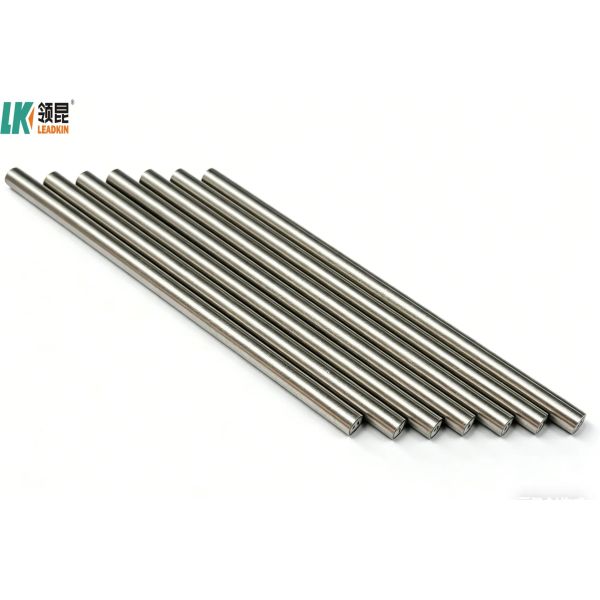

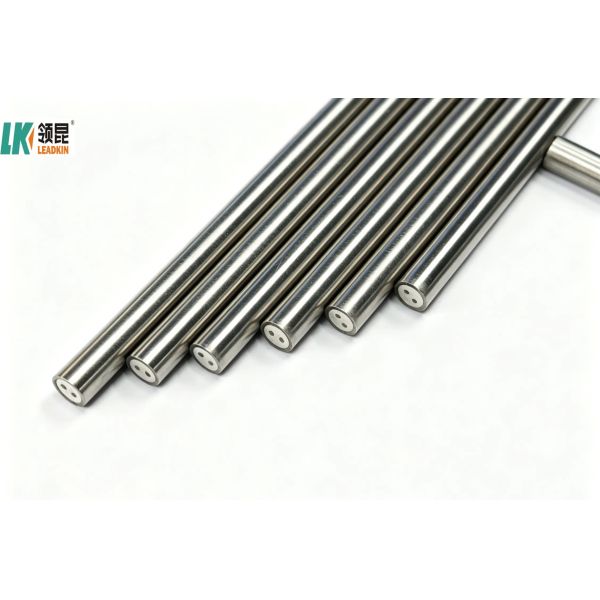

Durable and Flexible Type S Thermocouple Cable

Designed for accurate temperature sensing in harsh industrial environments.

Product Specifications
  • Type: K/N/E/J/T/S/R/B
  • Place of Origin: Zhejiang, China (Mainland)
  • Accuracy: I-0.4%t, II-0.75%t, III-1.5%t
  • Core number: 2,3,4,6
  • Inorganic mineral insulating lead material: Ni, Cu
  • Insulator: 99.6% high purity MgO
  • Certificate: ISO9001, IATF16949, CE
  • Application: Connecting with thermocouple and instrument machine
  • Sheath material: 0Cr18Ni10Ti, SS304S, SS316L, SS316, Cu
  • Sheath Dia(mm): φ3.0, φ4.0, φ6.0, φ8.0
Sheath Wire Specifications by Type
Product Name Code Type Sheath Material Outside Dia. Temperature
NiCr-NiSi /NiCr-NiAl KK K SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Different temperature measuring media and service conditions have an impact on the service life and temperature range of armored thermocouples. The data in the table is only recommended data.
Accuracy Specifications
Type Class I Class II
K ±1.5℃ (-40~375℃)
±0.4% (375℃-1000℃)		 ±2.5℃ (-40~375℃)
±0.75% (375℃-1000℃)
Product Features
  • Inorganic mineral insulated cable material is a solid combination of pure nickel/copper wire, inorganic mineral insulation and metal sleeve
  • Suitable for high temperature environments (200℃~1000℃) and corrosive conditions
  • Small outer diameter with fast thermal response time
  • Can be bent, long service life, good air tightness
  • Wide temperature measurement range (-200°C to 1300°C) and high pressure resistance
  • Suitable for narrow and curved installation pipelines
Thermocouple Basics

A thermocouple is a transducer that converts thermal energy into electrical energy. It operates based on the Seebeck Effect, generating a measurable voltage in response to temperature changes at the junction of dissimilar metals.

Durable Type S Thermocouple Cable with 200℃-1000℃ Temperature Range and Class I/II/III Accuracy for Harsh Industrial Environments
Packaging & Quality Assurance
  • Heat shrink tubing and plastic film for high insulated resistance
  • Marking notes, pass card and test report included with every coil cable
Durable Type S Thermocouple Cable with 200℃-1000℃ Temperature Range and Class I/II/III Accuracy for Harsh Industrial Environments
Order Process
  1. Request accurate quotation
  2. Confirm price, trade terms, lead time and payment terms
  3. Receive Proforma Invoice
  4. Arrange payment deposit
  5. Production updates with photos
  6. Balance payment and shipment
  7. Receive goods and provide feedback
