SS316 Sheath Mineral Insulated Thermocouple Cable with Class I/II Accuracy for Accurate Temperature Measurement
SS316 Sheath Mineral Insulated Thermocouple Cable with Class I/II Accuracy for Accurate Temperature Measurement
Specifications
Brand Name :
LEADKIN
Model Number :
LK-KK
Certification :
ISO9001, IATF16949, CE
Place of Origin :
Ningbo, China
MOQ :
100M
Price :
USD 1.5-3.5M
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,D/A
Supply Ability :
1,000,000M/year
Delivery Time :
2-7 working days
Packaging Details :
70*70*8cm Carton
Purity of MgO :
≥99.6%
Warranty :
1 Year
MOQ :
100M
Accuracy :
Class I/II
Customized :
Yes
Sheath Material :
SS316
Core Type :
single / double
Dia :
0.5mm-12.7mm
Theory :
Temperature Sensor
Cable Length :
1-5m or Customized
Usage :
Industrial Temperature Test
Name :
Factory Direct Types 2/4/6/8 Cores Mineral Insulated Cable K/N/E/J/T Mi Cable for Thermocouple
Description
Mineral Insulated Thermocouple Cable for Accurate Temperature Measurement in Harsh Environments
Product Specifications
Type: K, N, E, J, T
Brand: LEADKIN
Core number: 2, 4, 6
Diameter: 0.5mm to 12.7mm
Usage: For thermocouple making
Insulator: 99.6% high purity MgO
Sheath material: SS321(SS304), SS316
Conductor material: NiCr-NiSi, NiCrSi-NiSi, NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan
Type for Sheath Wire Type K
Product Name Code Type Sheath Material Outside Dia. Temperature
NiCr-NiSi /NiCr-NiAl KK K SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
Accuracy for Sheath Wire Type K
Type Class I Accuracy Temp.Range Class II Accuracy Temp.Range
K ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
Key Features
  • Mineral Insulation: Thermocouple wires insulated with solid magnesium oxide (MgO) for excellent thermal conductivity and electrical insulation
  • Metal Sheath: Stainless steel or Inconel protection against physical damage and chemical corrosion
  • Temperature Range: Operates in extreme temperatures up to 1200°C (2192°F) or higher
  • Durability: Resistant to abrasion, moisture, and various chemicals
  • Accuracy: Provides highly accurate temperature readings with minimal thermal lag
  • Flexibility: Robust yet flexible for easier installation in tight spaces
Applications
Mineral insulated thermocouple cables are widely used in industrial temperature measurement applications:
  • Power and control circuits of critical equipment
  • Petrochemical, power generation, and metallurgy industries
  • Kilns, ovens, and furnaces operating at high temperatures
  • Aerospace and automotive environments requiring precision measurement
Construction
The cable is constructed by placing wire conductors inside a circular copper tube filled with dry magnesium oxide powder. The assembly is then pressed between rollers to reduce diameter. The mineral insulation is packed tightly around thermocouple wires, ensuring good thermal conductivity between the wires and outer sheath.
Product Images

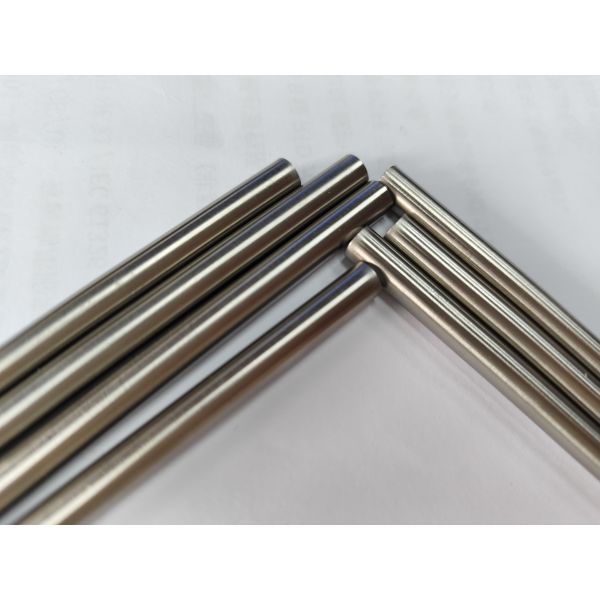

SS316 Sheath Mineral Insulated Thermocouple Cable with Class I/II Accuracy for Accurate Temperature Measurement SS316 Sheath Mineral Insulated Thermocouple Cable with Class I/II Accuracy for Accurate Temperature Measurement
Product Advantages
  • High temperature resistance with flexible design
  • Anti-corrosion properties for harsh environments
  • Fast and accurate temperature measurement
  • Customizable probe length and bendable probes
  • Long service life with quick response speed
  • High precision temperature control
Order Process (FAQ)
1. Accurate quotation
Confirm price, trade terms, lead time, and payment terms
2. Order confirmation
LEADKIN sales send Proforma Invoice with official seal
3. Production process
Photos provided during production to show progress
4. Shipping and delivery
Tracking number provided after shipment
