0.5mm SS316 Shielded K Type Thermocouple Compensating Cable 4 Core MgO 99.6
0.5mm SS316 Shielded K Type Thermocouple Compensating Cable 4 Core MgO 99.6
0.5mm SS316 Shielded K Type Thermocouple Compensating Cable 4 Core MgO 99.6
0.5mm SS316 Shielded K Type Thermocouple Compensating Cable 4 Core MgO 99.6
Specifications
Brand Name :
LEADKIN
Model Number :
LK-K
Certification :
ISO,
Place of Origin :
NINGBO CHINA
MOQ :
50M
Price :
USD 0.5-6.0/M
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1,000,000M/year
Delivery Time :
2-7 working days
Packaging Details :
68*68*8cm Carton
Name :
4 Cores Stainless Steel Sheathed MI Cable Mineral Insulated Cable For Thermocouple
Outside Dia :
0.5-12.7mm
Insulation :
MgO
Function :
thermocouple material
Factory :
yes,production line
Package :
Carton. Pallet
Sheath :
Inconel600
Temperature Range :
0-1100℃
Description

Quick Details:

Name:4 Cores Stainless Steel Sheathed MI Cable Mineral Insulated Cable For Thermocouple

Type: K

Conductor material: NiCr-NiSi

Insulator: 99.6% high purity MgO

Core number: 2, 4

Sheath material: Inconel600, Nicrobell

Dia(mm): 0.25mm to 12.7mm

Application: connecting with thermocouple and instrument machine

Place of Origin: Zhejiang, China (Mainland)

Certificate: ISO,CE

Type for Sheath Wire Type K

Product Name Code Type Shaeth Material Outside Dia. Temperature
NiCr-NiSi /NiCr-NiAl KK K SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCrSi-NiSi NK N SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCr-Konstantan EK E SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Fe-Konstantan JK J SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Cu-Konstantan TK T SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
RhPt10-Ph SK S Inconel600 6.0-12.7 1100

Accuracy for Sheath Wire Type K

Type Class I Class II
Accuracy Temp.Range Accuracy Temp.Range
K ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
N ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
E ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
J ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
T ±0.5℃ -40~125℃ ±1.0℃ -40~125℃
±0.4% 125℃-350℃ ±0.75% 125℃-350℃
S 0-1100℃ ±1.0℃ 0-1100℃ ±1.5℃

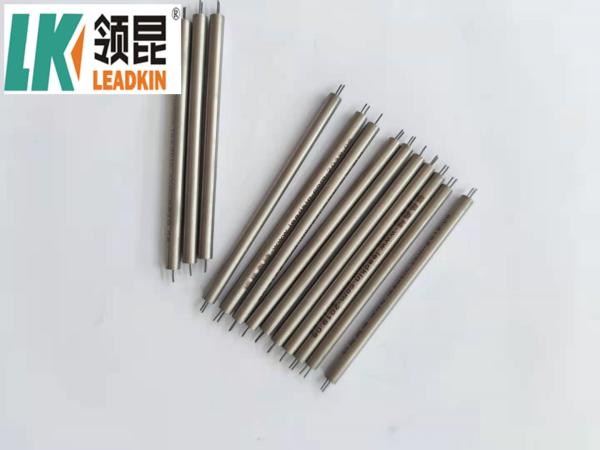

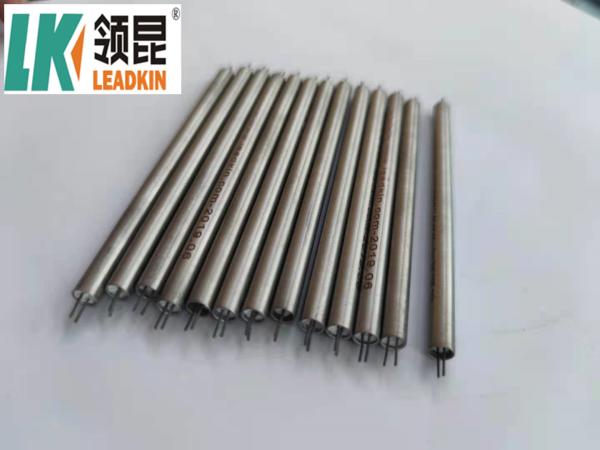

Product Pictures

0.5mm SS316 Shielded K Type Thermocouple Compensating Cable 4 Core MgO 99.6

0.5mm SS316 Shielded K Type Thermocouple Compensating Cable 4 Core MgO 99.6

Company Information:

A. Main Products

0.5mm SS316 Shielded K Type Thermocouple Compensating Cable 4 Core MgO 99.6

B. Package

We add heat shrink tubing and plastic film to make sure high insulated resistance.

Except marking notes, we also have pass card and test report for every coil cable.

C. Mi cable Production line

We have high - quality professional products, as well as advanced product lines and equipments. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Along the increasing market demands, we continuously satisfy customers by updating products to improve prouduction systems, improve quality.

1.Assembly

0.5mm SS316 Shielded K Type Thermocouple Compensating Cable 4 Core MgO 99.6

2.Drawing

0.5mm SS316 Shielded K Type Thermocouple Compensating Cable 4 Core MgO 99.6

3.Annealing

0.5mm SS316 Shielded K Type Thermocouple Compensating Cable 4 Core MgO 99.6

4. Polishing

5.Test

0.5mm SS316 Shielded K Type Thermocouple Compensating Cable 4 Core MgO 99.6

6. Mi cable in stock

0.5mm SS316 Shielded K Type Thermocouple Compensating Cable 4 Core MgO 99.6
